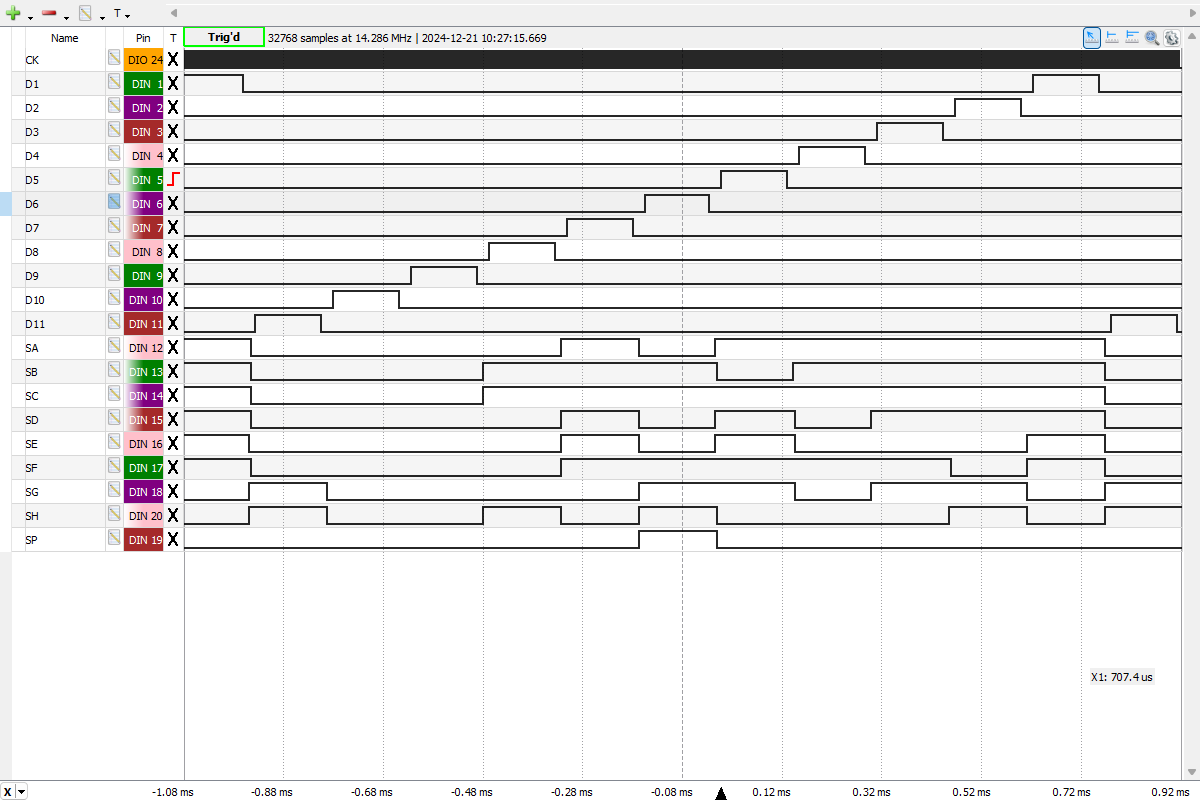

Scanning Cycle of the TMC0605NC from a Canon LE-81M
manufactured in June 1974 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0605NC Clock Frequency set to 250 kHz.  |

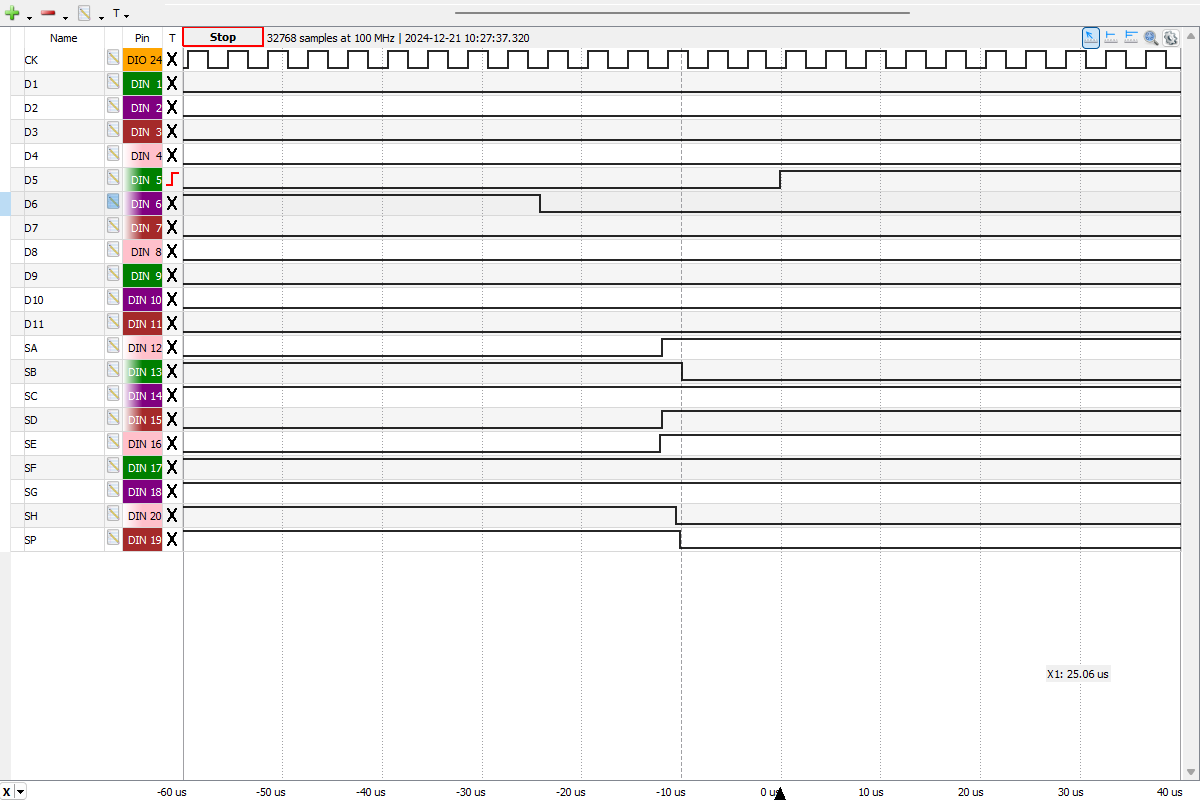

| Close-up view of the
transition between Digit D6 displaying "4" and Digit D5 displaying "6" of
the TMC0605NC showing the Leading and Trailing Digit Blanking
Times.
|
