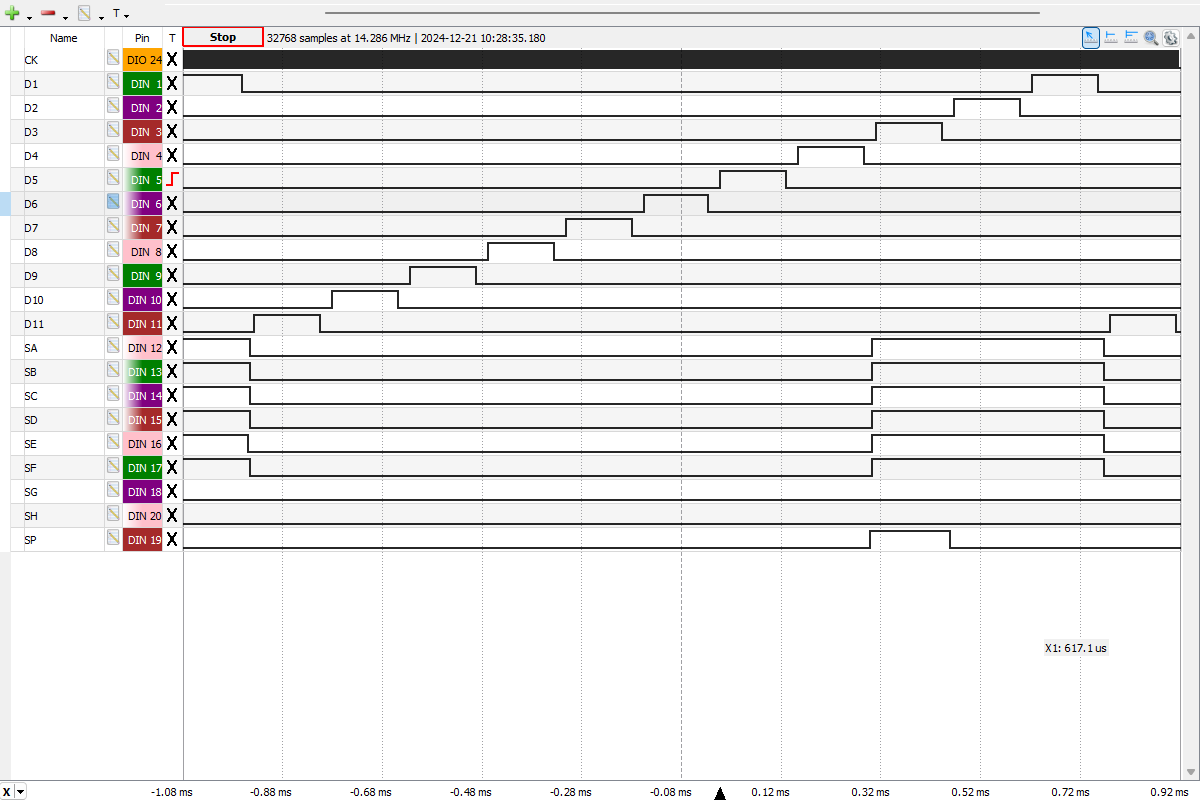

Complete Display Scanning Cycle of the TMC0605NC from a Canon LE-81M manufactured in June 1974 displaying "0." after power-up
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0605NC Clock Frequency set to 250 kHz.

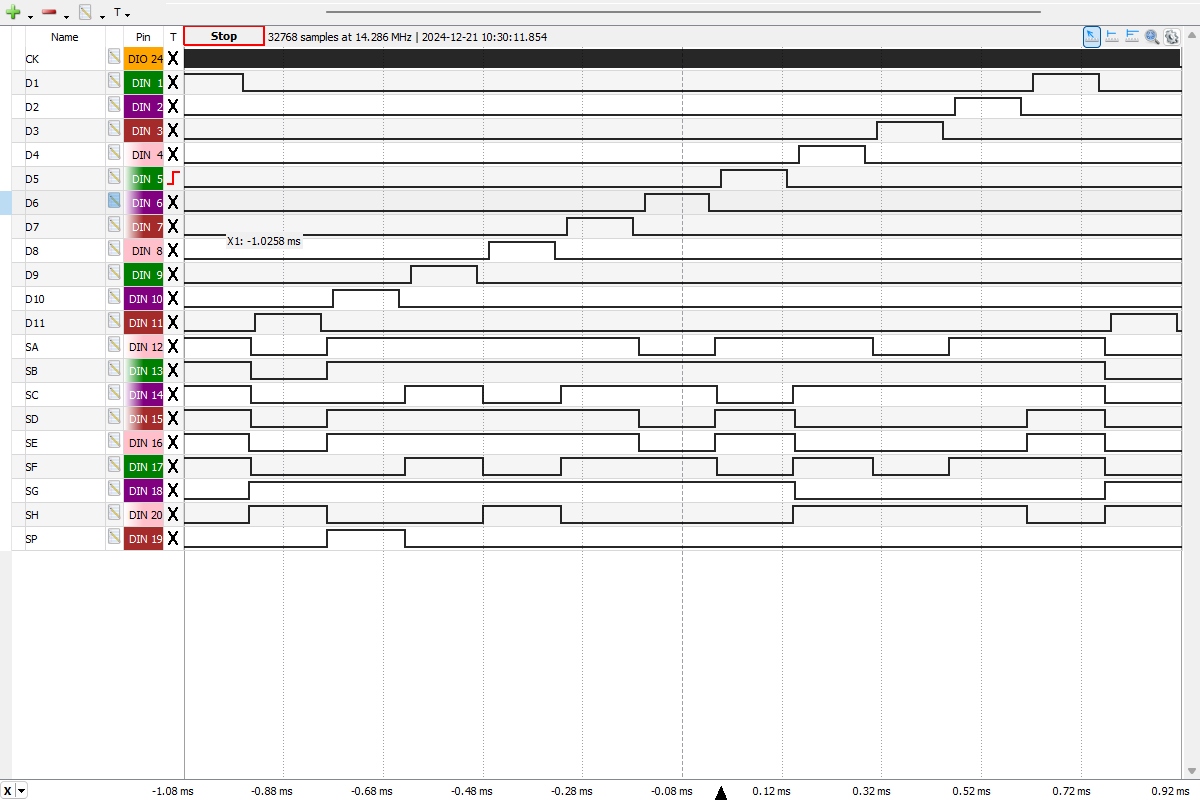

Flag-Information of the TMC0605NC on Segment H with a number stored in its Memory (D8), displaying "-2.8284271" (D11) and waiting for the input
of the divisor (D2, D3 and D4), captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0605NC Clock Frequency set to 250 kHz.
