Additional Pictures

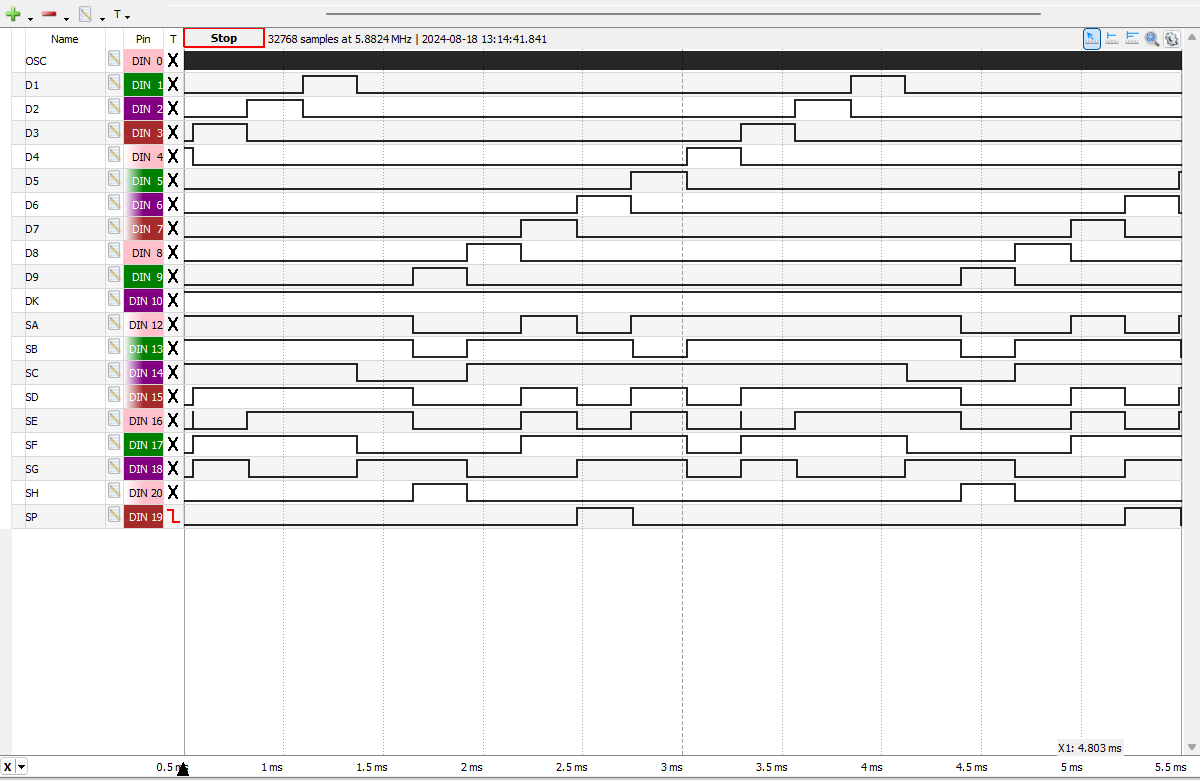

| Complete Display
Scanning Cycle of the TMC0806NC from a Exactra 19 manufactured in
October 1974 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0806NC Clock Frequency set to 160 kHz.  |

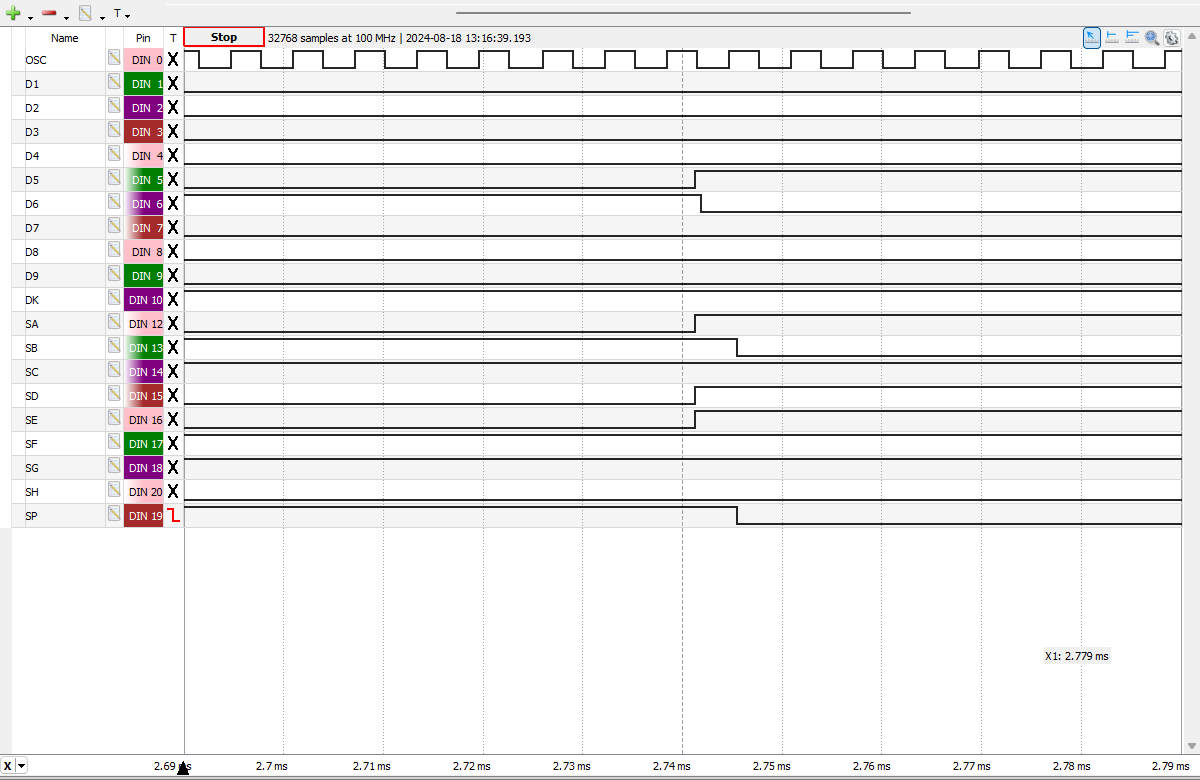

| Close-up view of the
transition between Digit D4 displaying "4" and Digit D3 displaying "6" of the TMC0806NC
showing the missing Leading and Trailing Digit and Segment Blanking.
|
