Additional Pictures

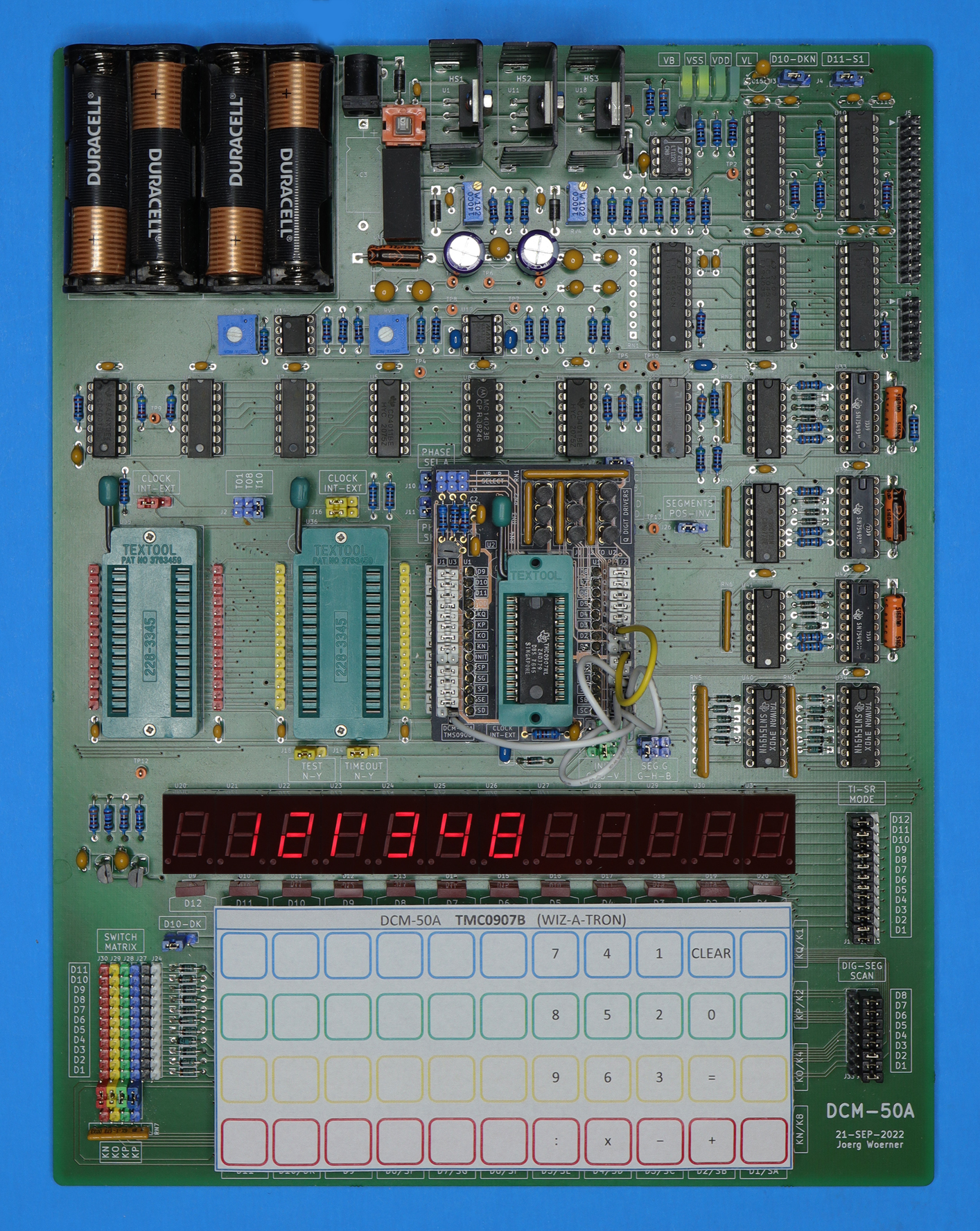

The DCM-50A Platform with the TMC0907NL/ZA0379 single-chip calculator circuit from a WIZ-A-TRON manufactured in December 1978.

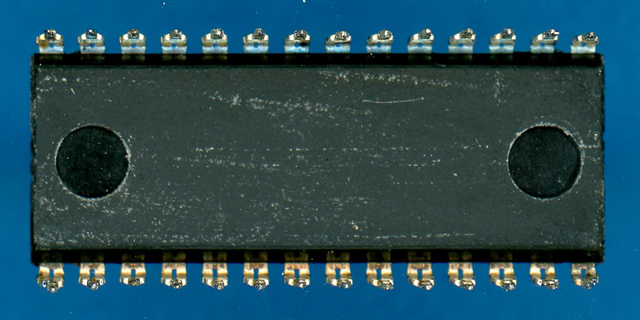

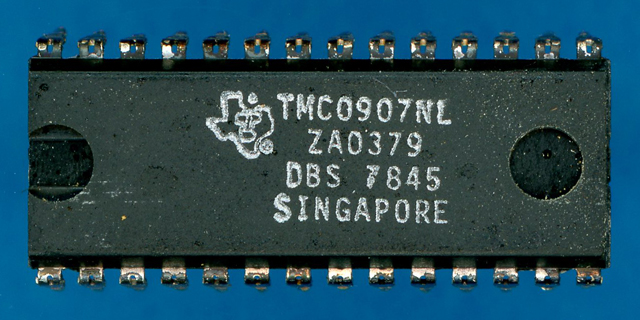

Close-up view of the TMC0907NL single-chip calculator circuit.

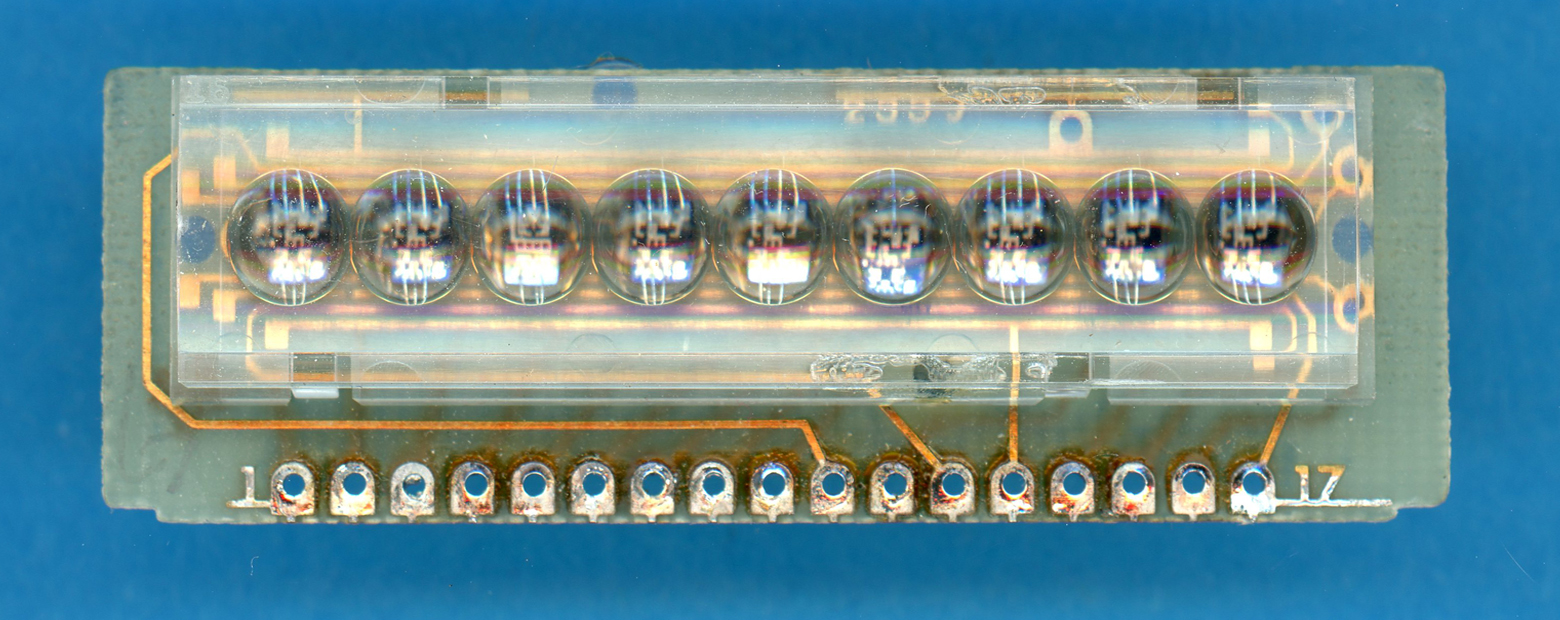

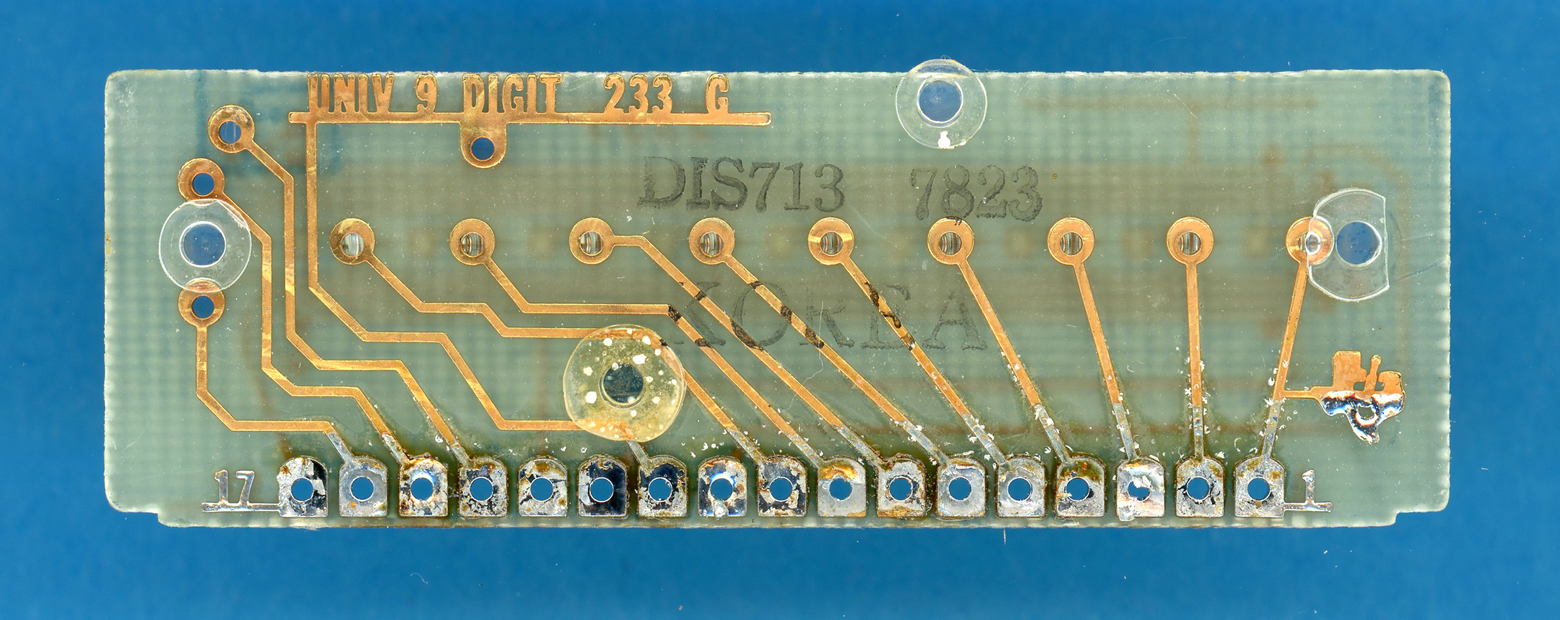

Close-up view of the DIS713 Light-Emitting-Diode (LED) display module using the DIS233G PCB.
