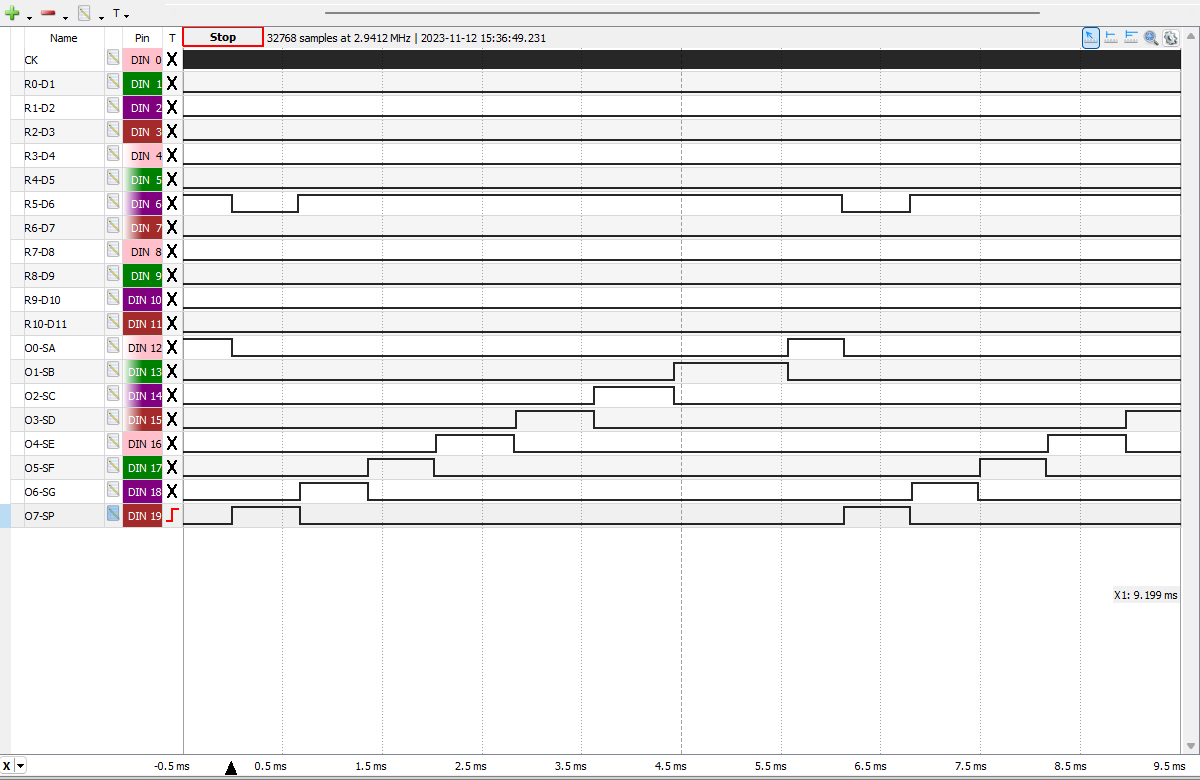

| Complete Display
Scanning Cycle of the TMC0907NL from a WIZ-A-TRON
manufactured in December 1978 displaying "=" and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0907NL actually outputs an "8".  |

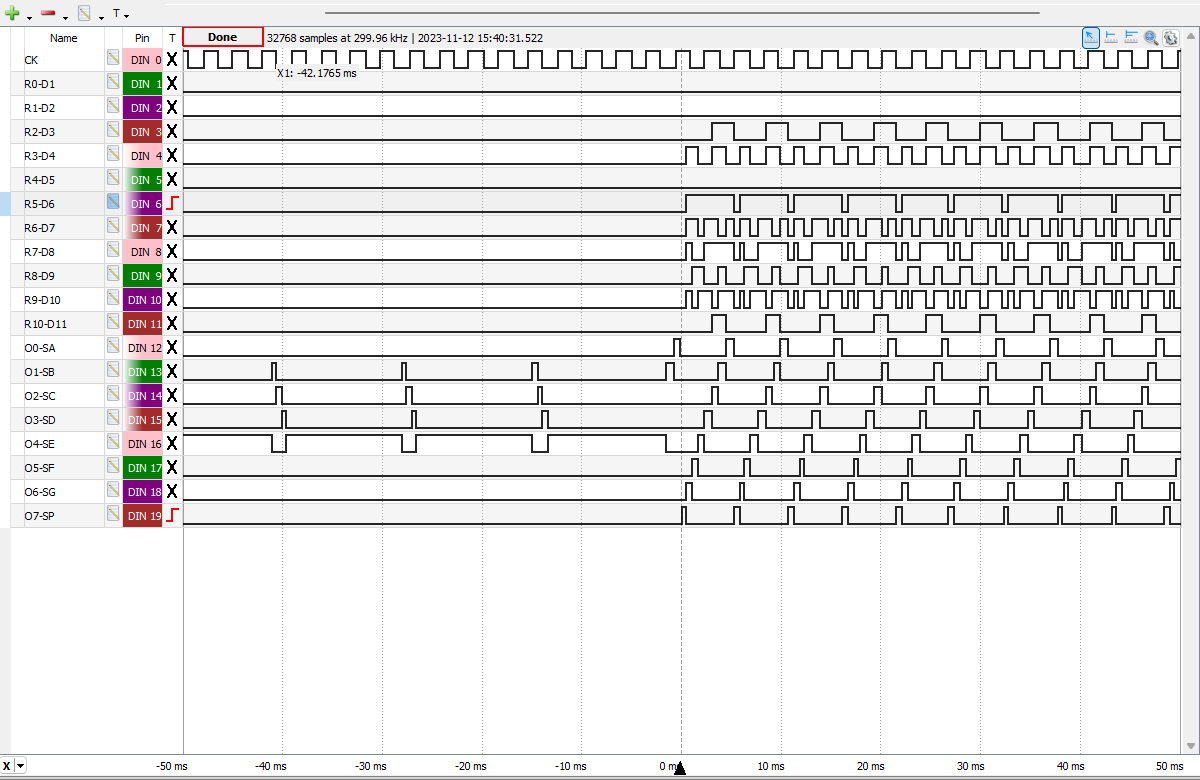

| Complete Display Scanning
Cycle of the TMC0907NL from a WIZ-A-TRON manufactured in December 1978
flashing the display and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0907NL actually alternates between two completely different Display Scanning Cycles. (Note: The CK Frequency is set to 300 kHz and not properly displayed due to a sampling rate of just 150 kHz)  |

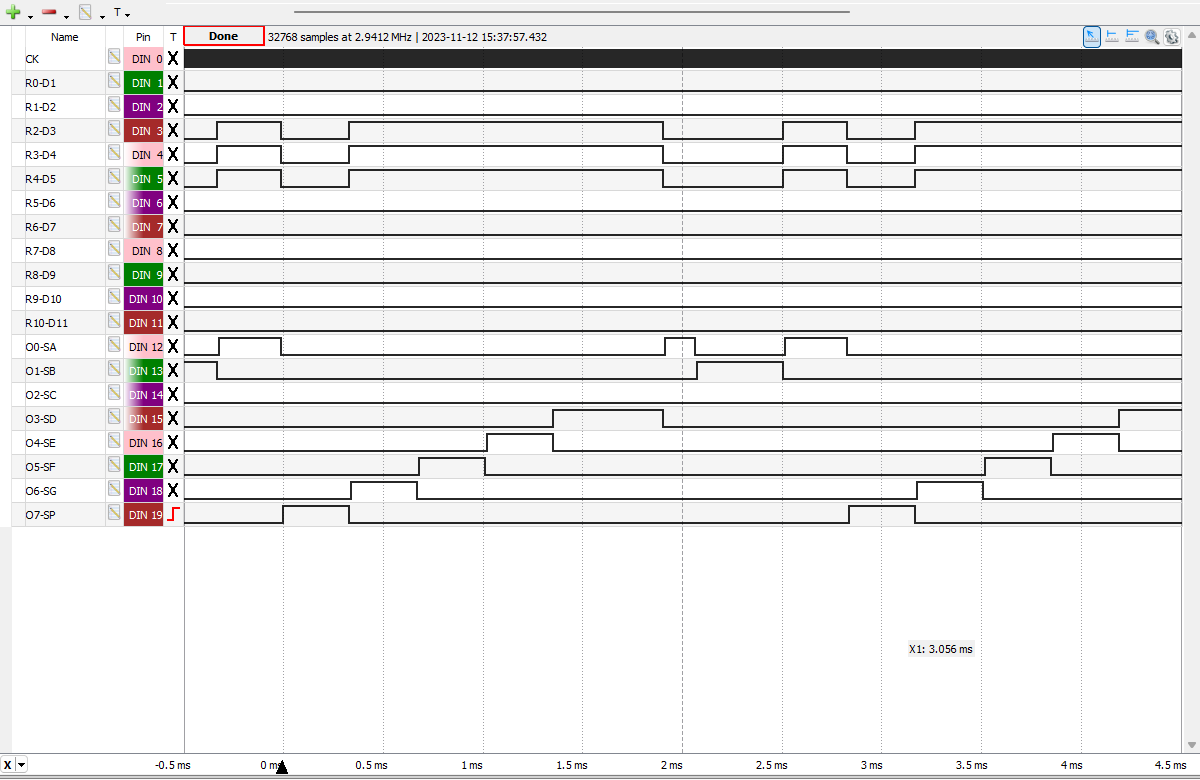

| Multiple Display
Scanning Cycles of the TMC0907NL from a WIZ-A-TRON
manufactured in December 1978 displaying "EEE" and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0907NL actually outputs "888" but doesn't scan Segment C.  |

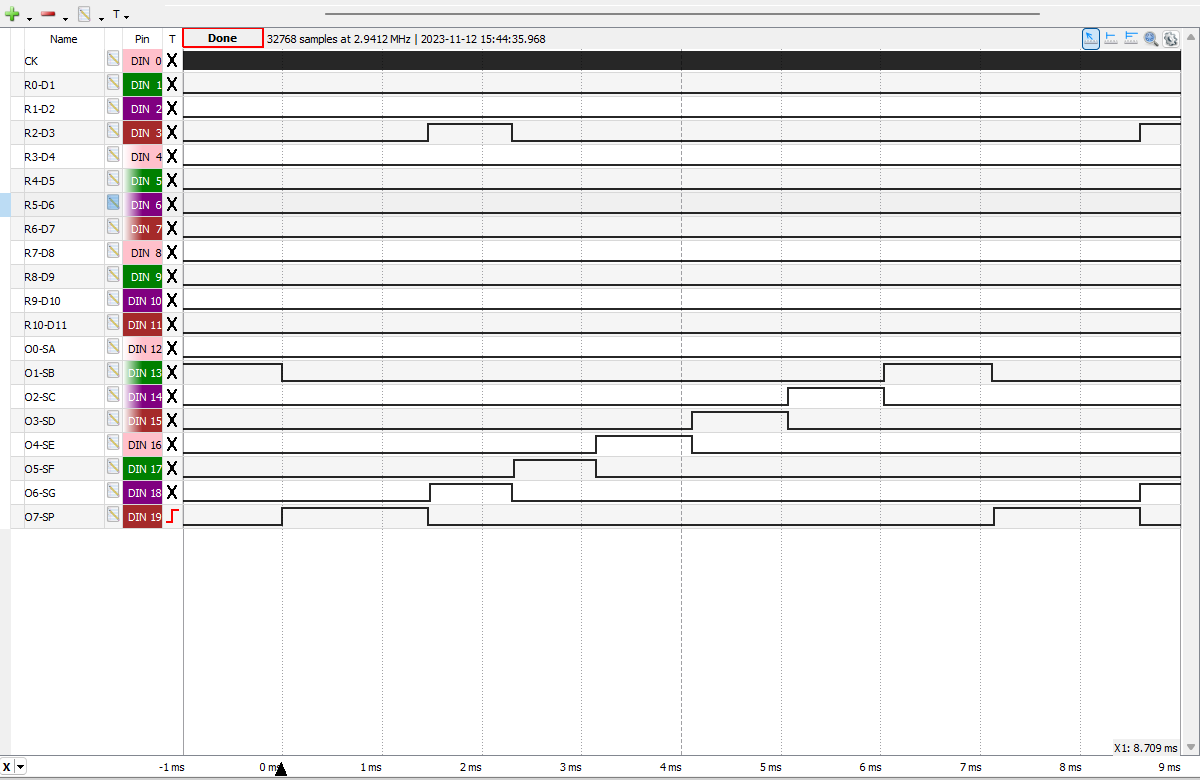

| Complete Display Scanning
Cycle of the TMC0907NL from a WIZ-A-TRON manufactured in December 1978
displaying "IDLE" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0907NL actually outputs "-".  |
