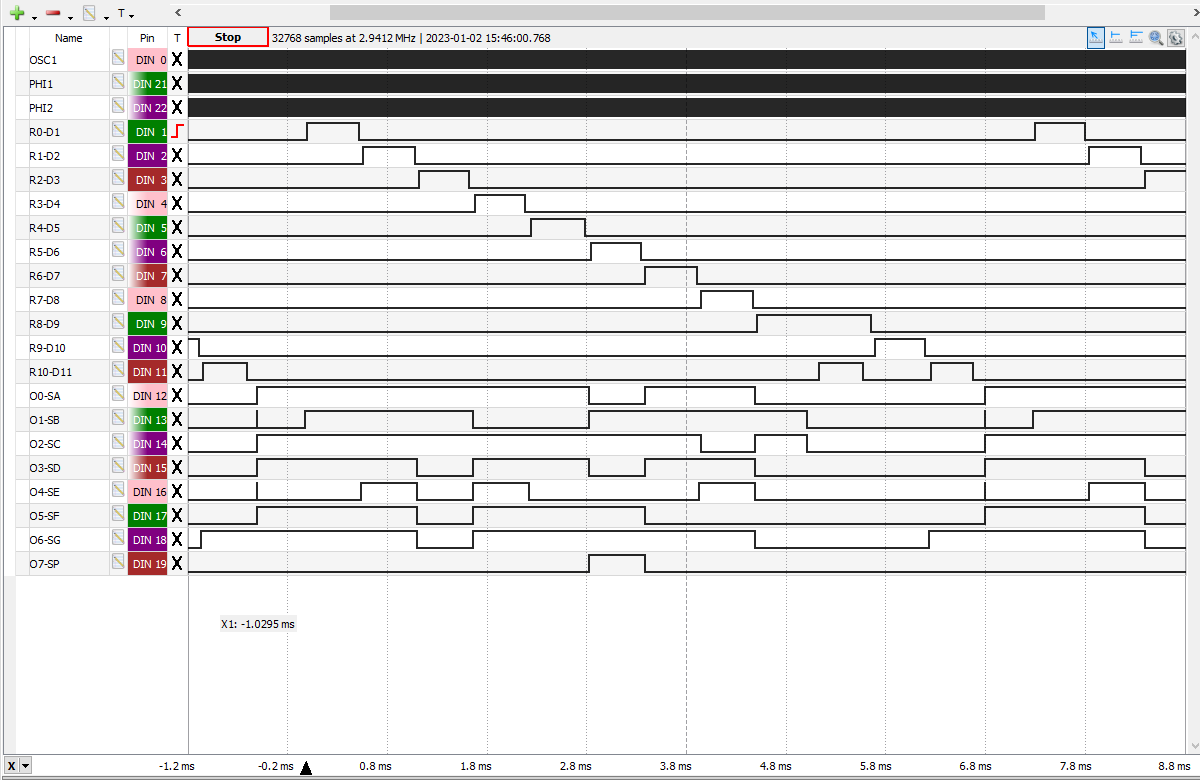

Complete Display Scanning Cycle of the TMC1073NL from a TI-5100 manufactured in December 1981 displaying "-1234.56789"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC1073NL Clock Frequency set to 300 kHz.

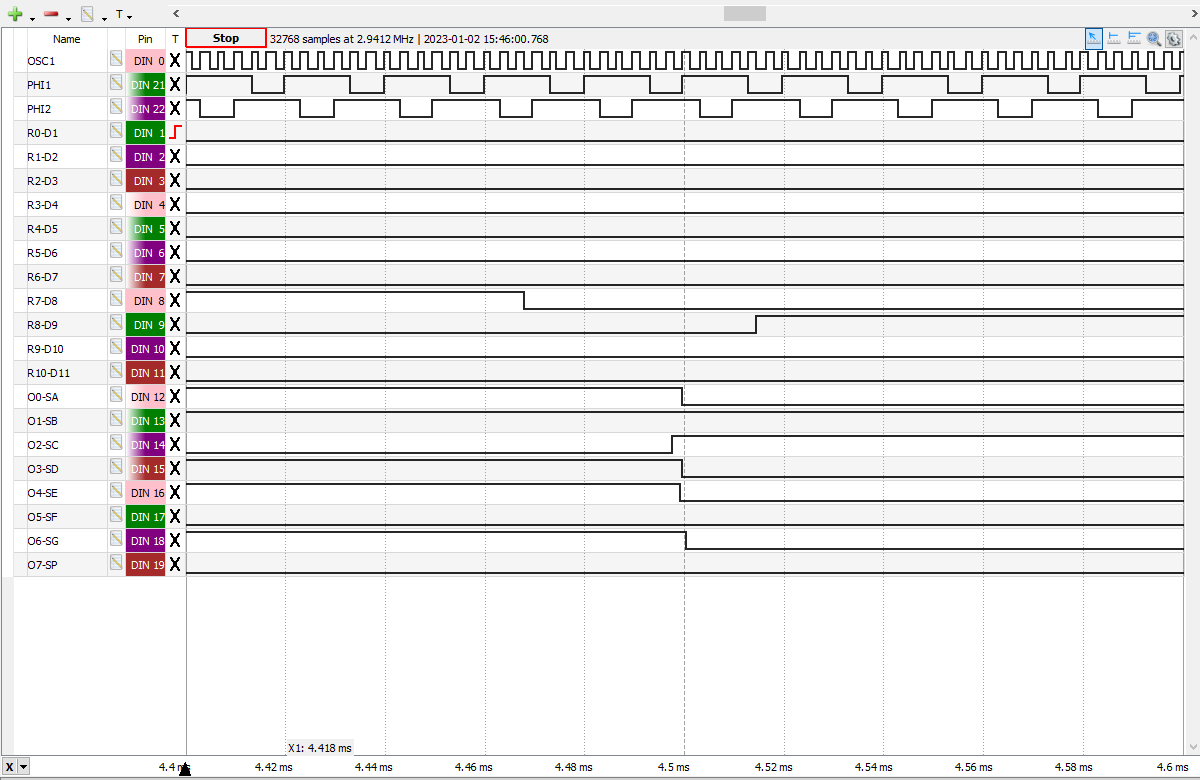

Close-up view of the transition between Digit D8 displaying "2" and Digit D9 displaying "1" of the TMC1073NL showing the Leading and Trailing Digit Blanking Times.


If you have additions to the above article please email: joerg@datamath.org.
