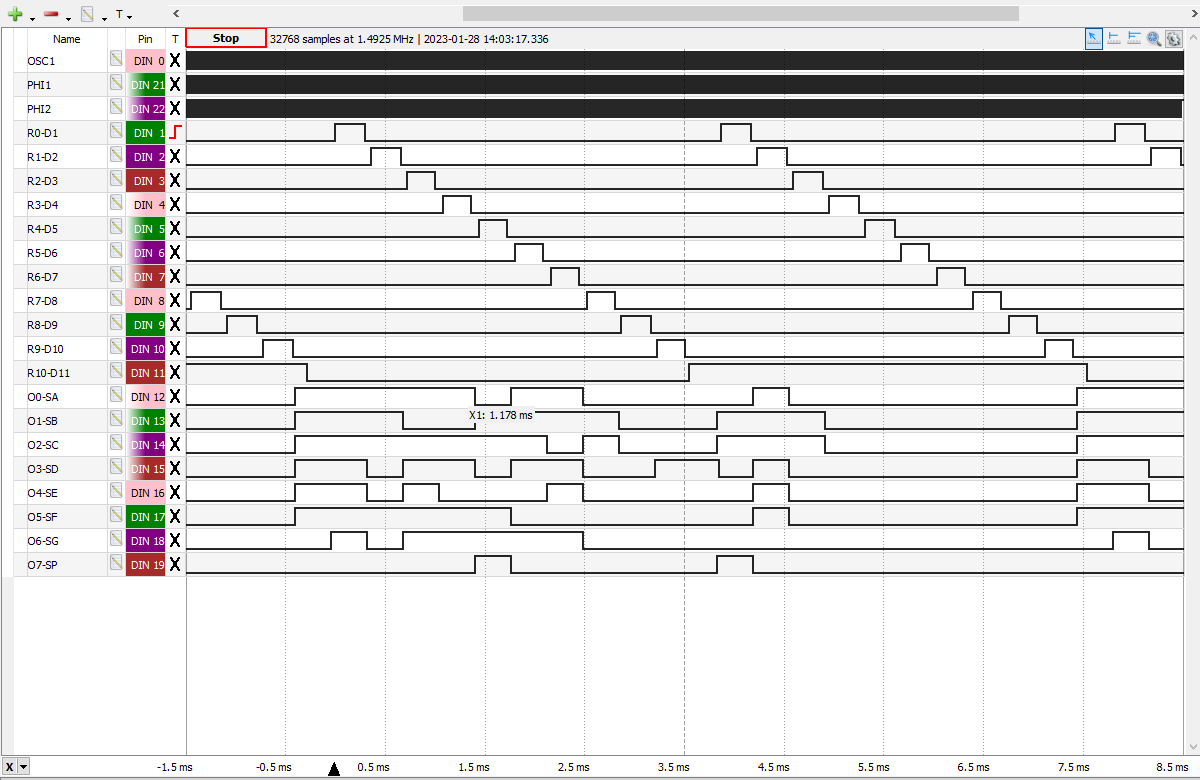

Complete Display Scanning Cycle of the TMC1079NL from a Canon Palmtronic MD-8 manufactured in December 1977 displaying "101. * -1234.56789"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC1079NL Clock Frequency set to 300 kHz.

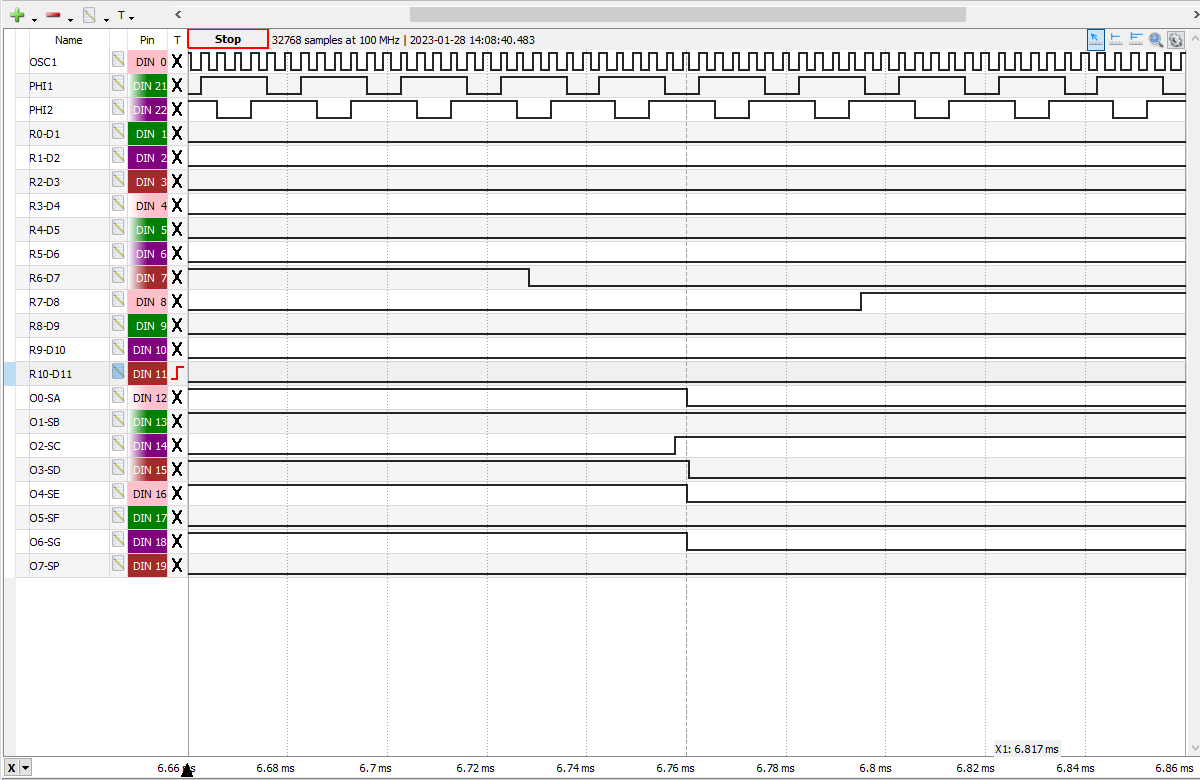

Close-up view of the transition between Digit D7 displaying "2" and Digit D8 displaying "1" of the TMC1079NL showing the Leading and Trailing Digit Blanking Times.
