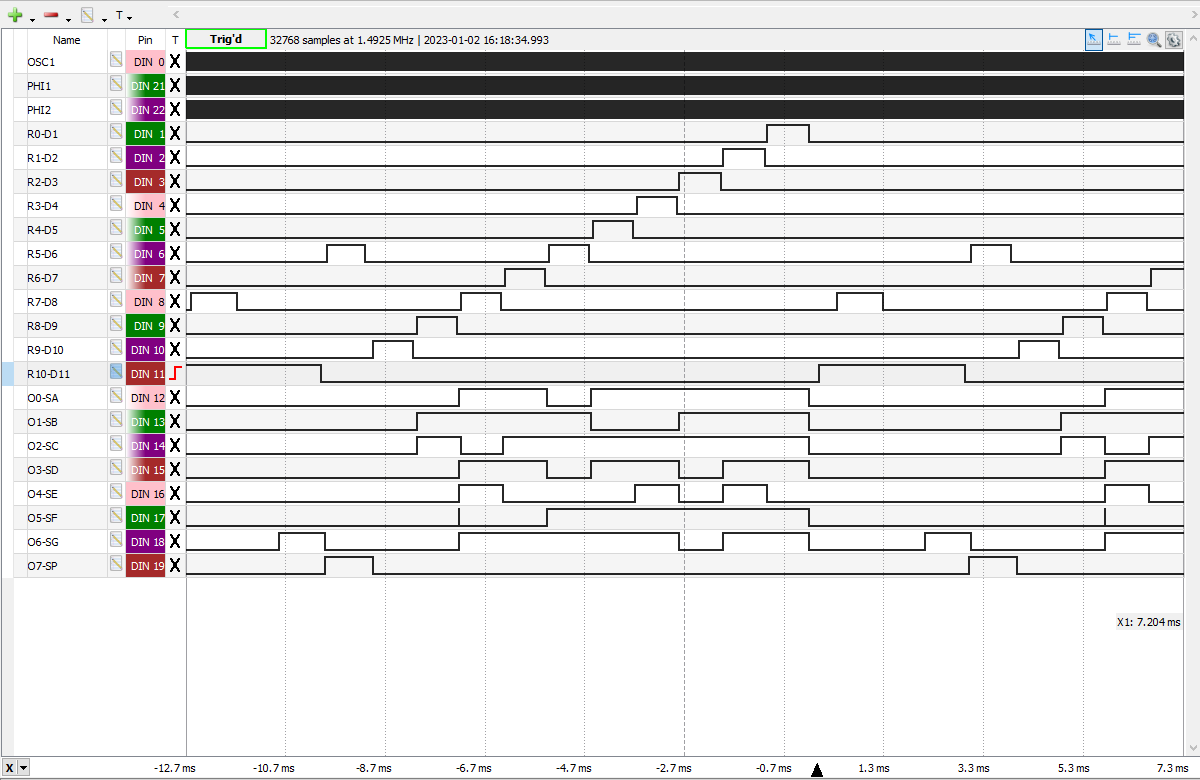

Complete Display Scanning Cycle of the TMC1081NL from a Panasonic JE-1604U manufactured in December 1981 displaying "-1234.56789"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC1081NL Clock Frequency set to 300 kHz.

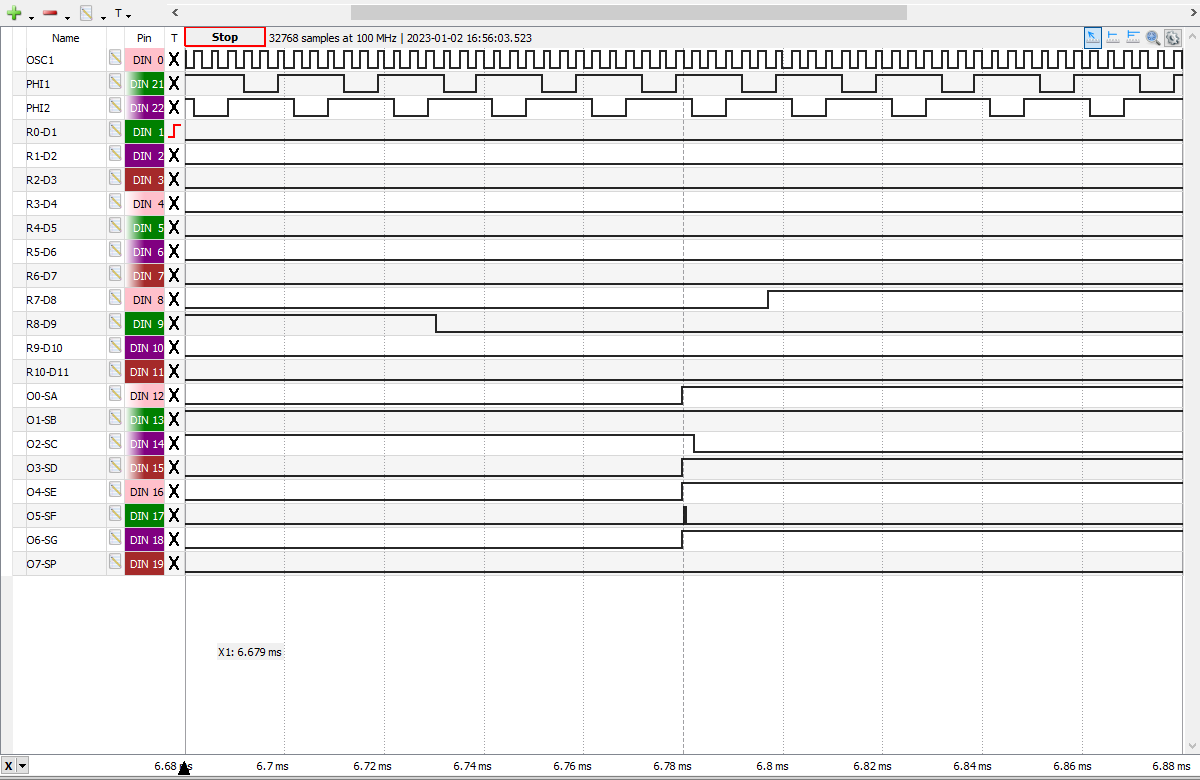

Close-up view of the transition between Digit D9 displaying "1" and Digit D8 displaying "2" of the TMC1081NL showing the Leading and Trailing Digit Blanking Times.
