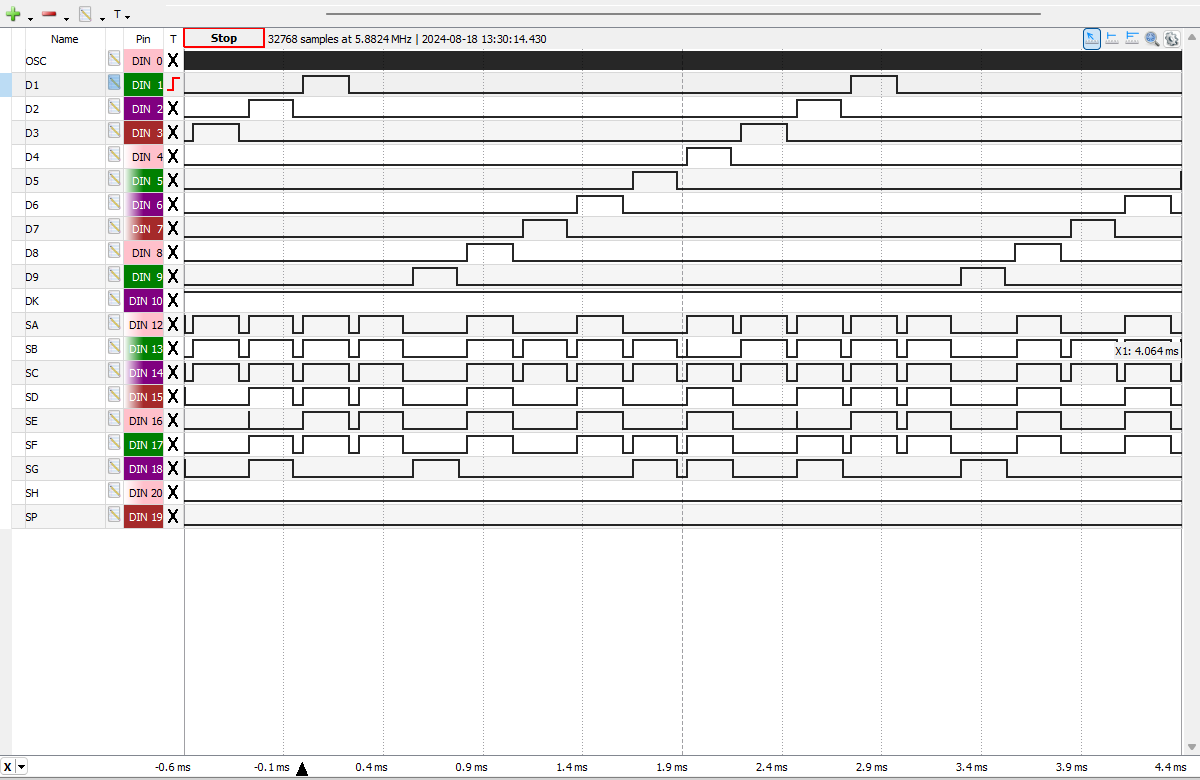

Scanning Cycle of the TMC0805NC from a Sinclair Scientific manufactured in
June 1974 displaying "-01046790" (-4.6790 EE+10) and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMC0805NC Clock Frequency set to 160 kHz.  |

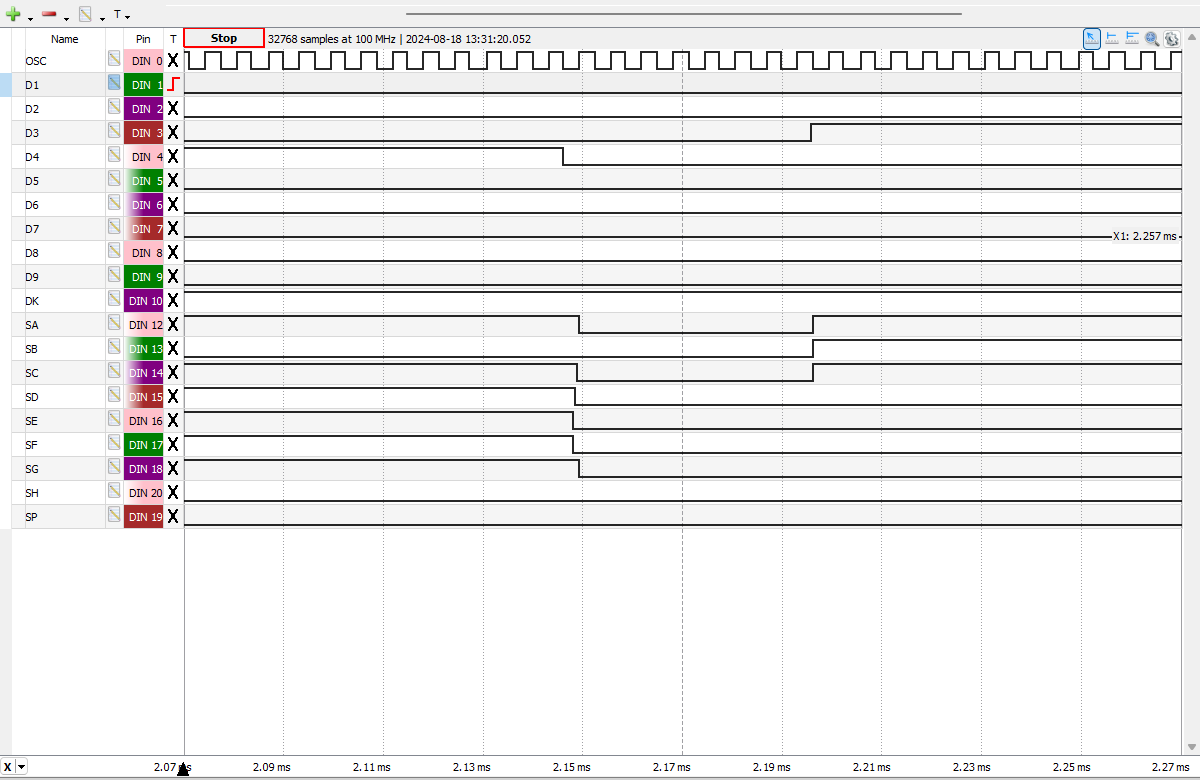

| Close-up view of the
transition between Digit D4 displaying "6" and Digit D3 displaying "6" of the TMC0805NC
showing the Leading and Trailing Digit and Segment Blanking
Times.
|
