DATAMATH PICTURES

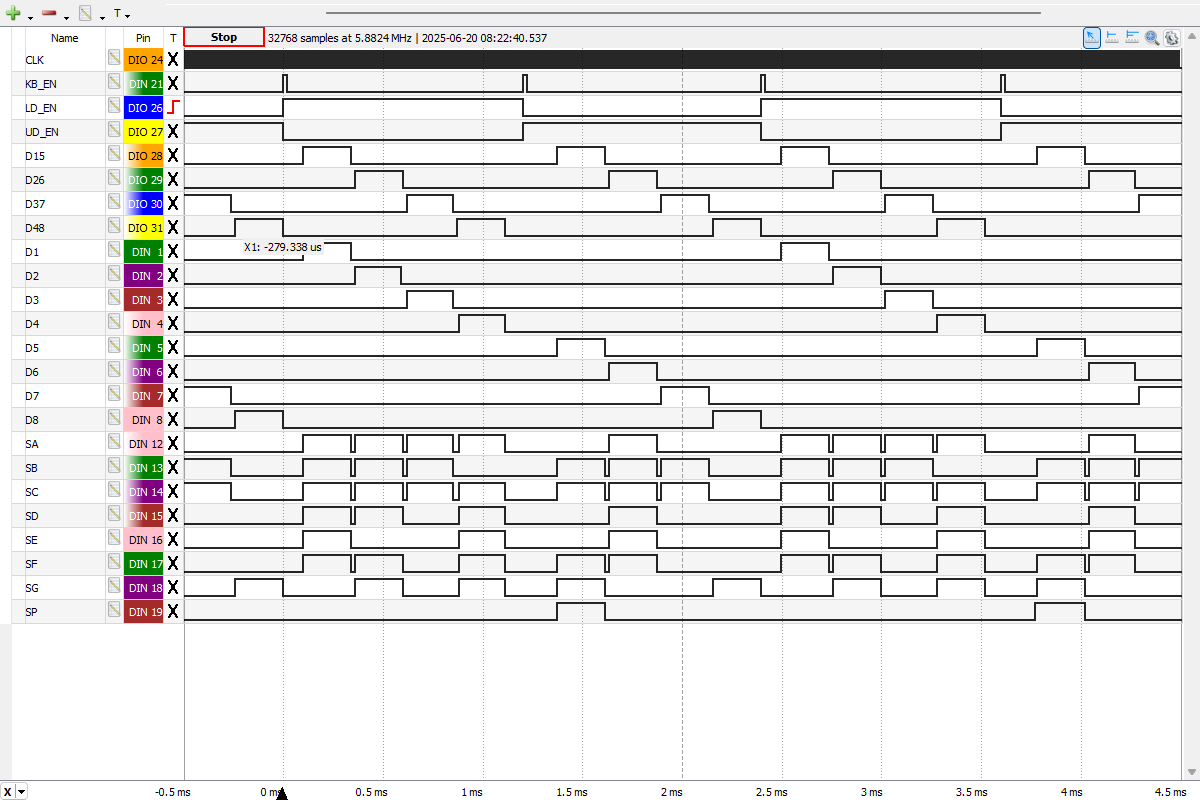

Complete Display and Keyboard Scanning Cycle of TMR 012 from an Interton PC 2008 (Version 1) manufactured in January 1973 while displaying "-104.6790"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMR 012 Clock Frequency at 100 kHz.

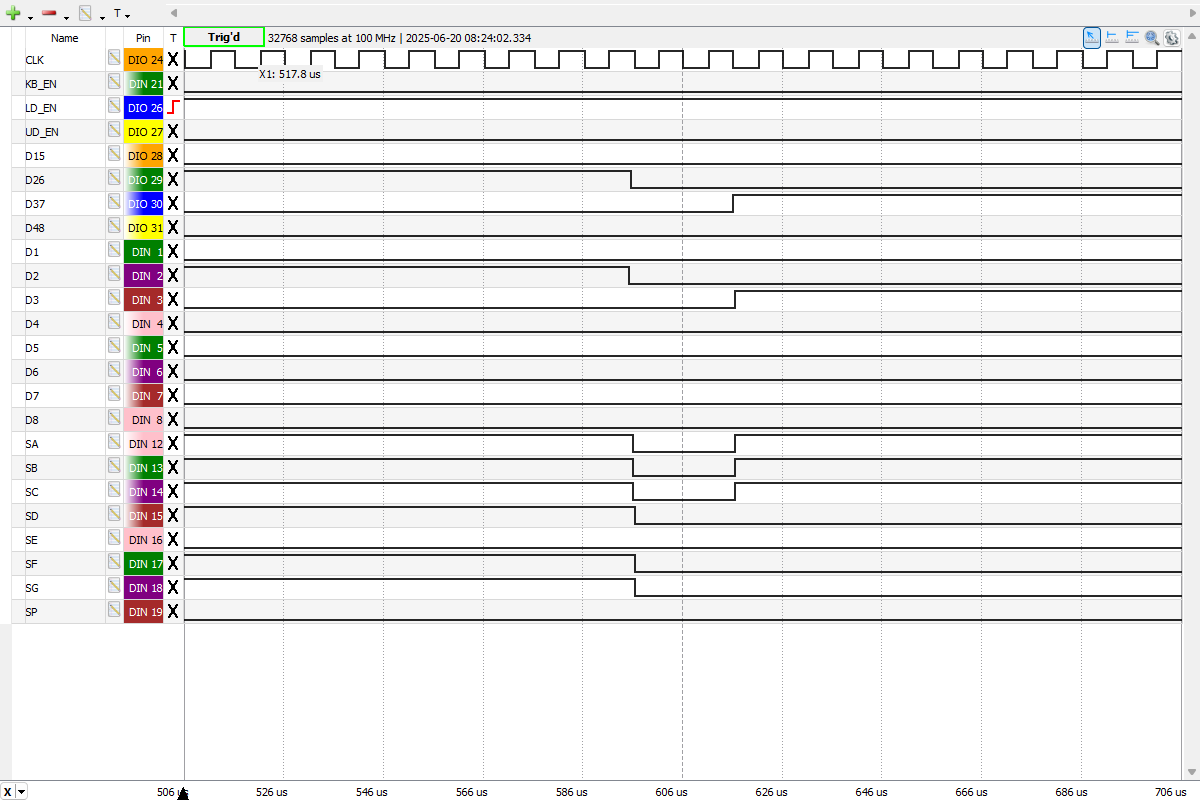

Close-up view of the transition between Digit D2 displaying "9." and Digit D3 displaying "7." of the TMR 012 showing the Leading and Trailing Digit Blanking Times.
