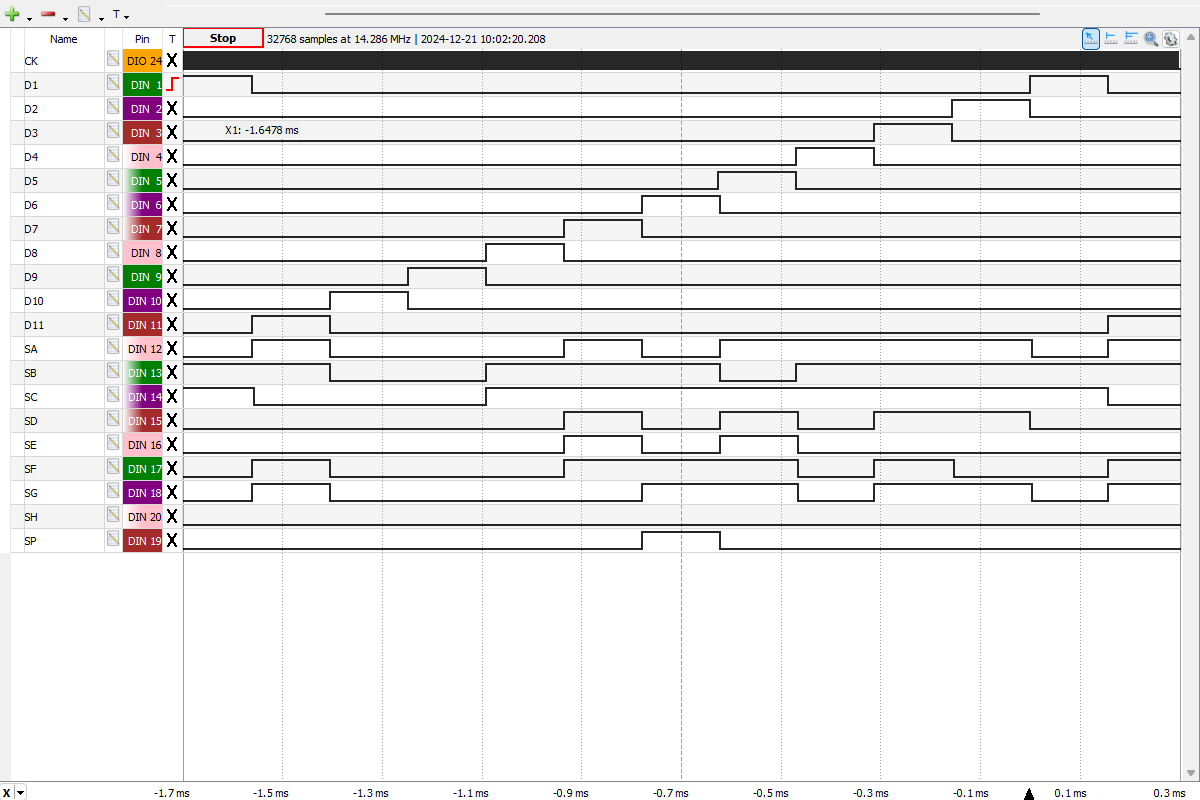

Scanning Cycle of the TMS0601NC from a TI-2550 manufactured in
October 1975 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0601NC Clock Frequency set to 250 kHz.  |

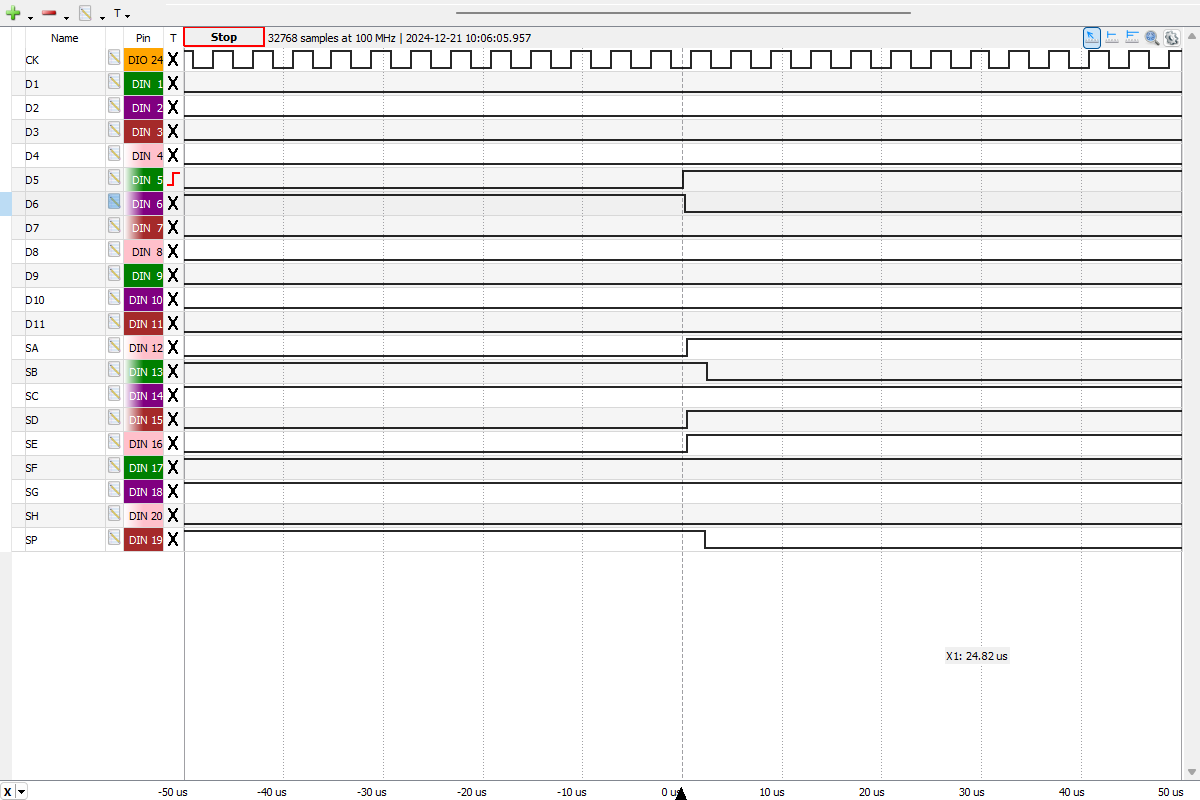

| Close-up view of the
transition between Digit D6 displaying "4" and Digit D5 displaying "6" of the TMS0601NC
showing the missing Leading and Trailing Digit and Segment Blanking.
|
