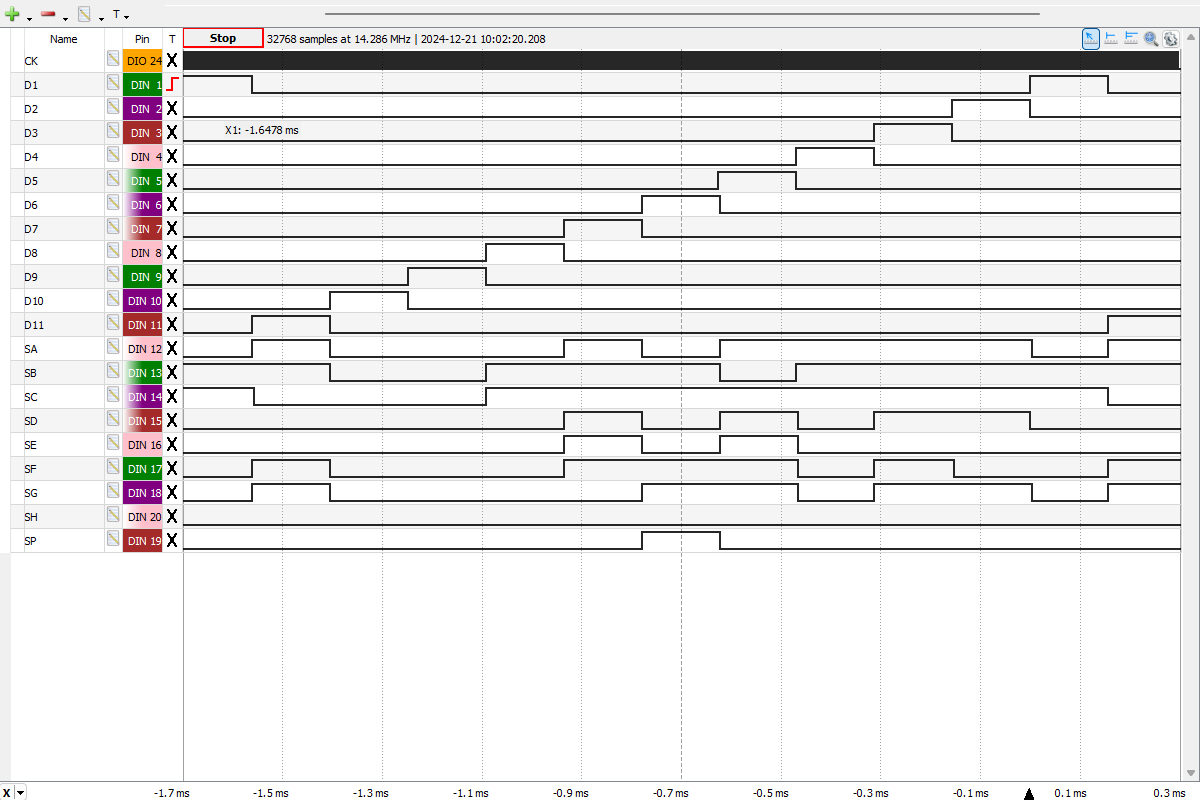

Complete Display Scanning Cycle of the TMS0602NC from an SR-11 manufactured in November 1974 displaying "-104.679 -23"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0602NC Clock Frequency set to 250 kHz.

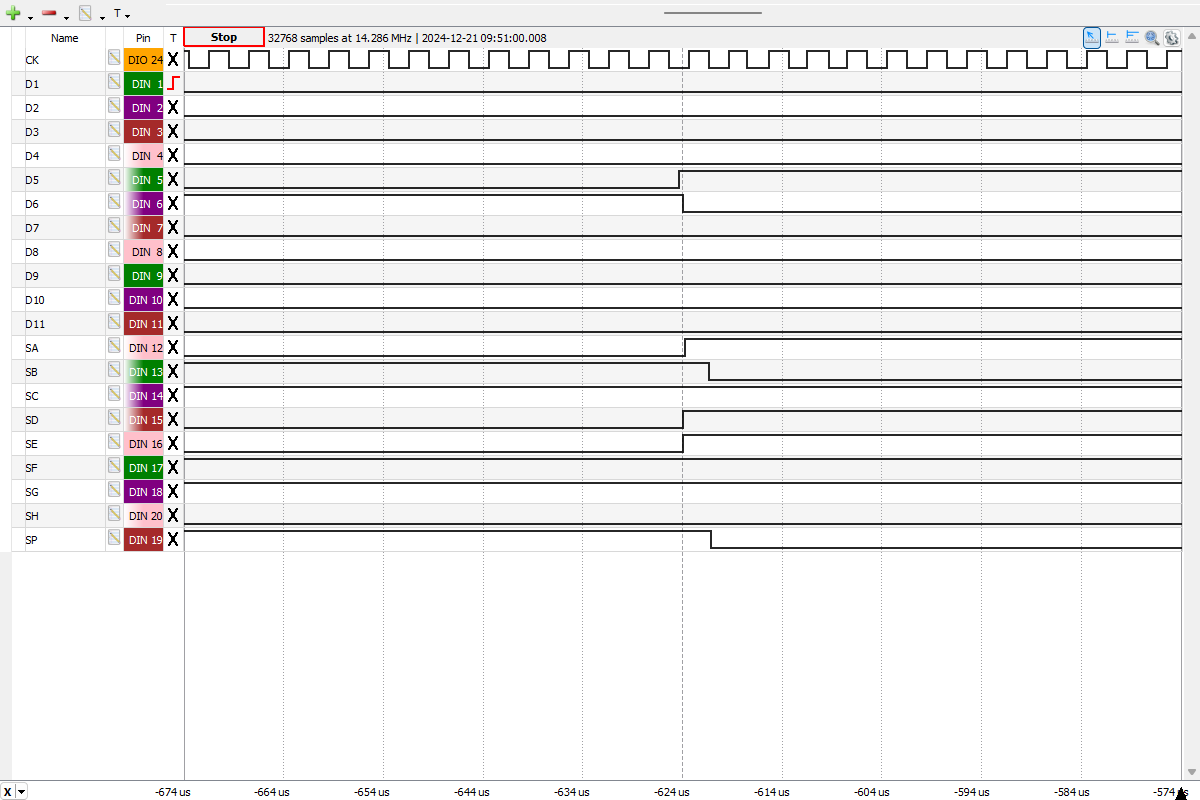

Close-up view of the transition between Digit D6 displaying "4" and Digit D5 displaying "6" of the TMS0602NC showing the missing Leading and Trailing Digit and Segment Blanking.
