Additional Pictures

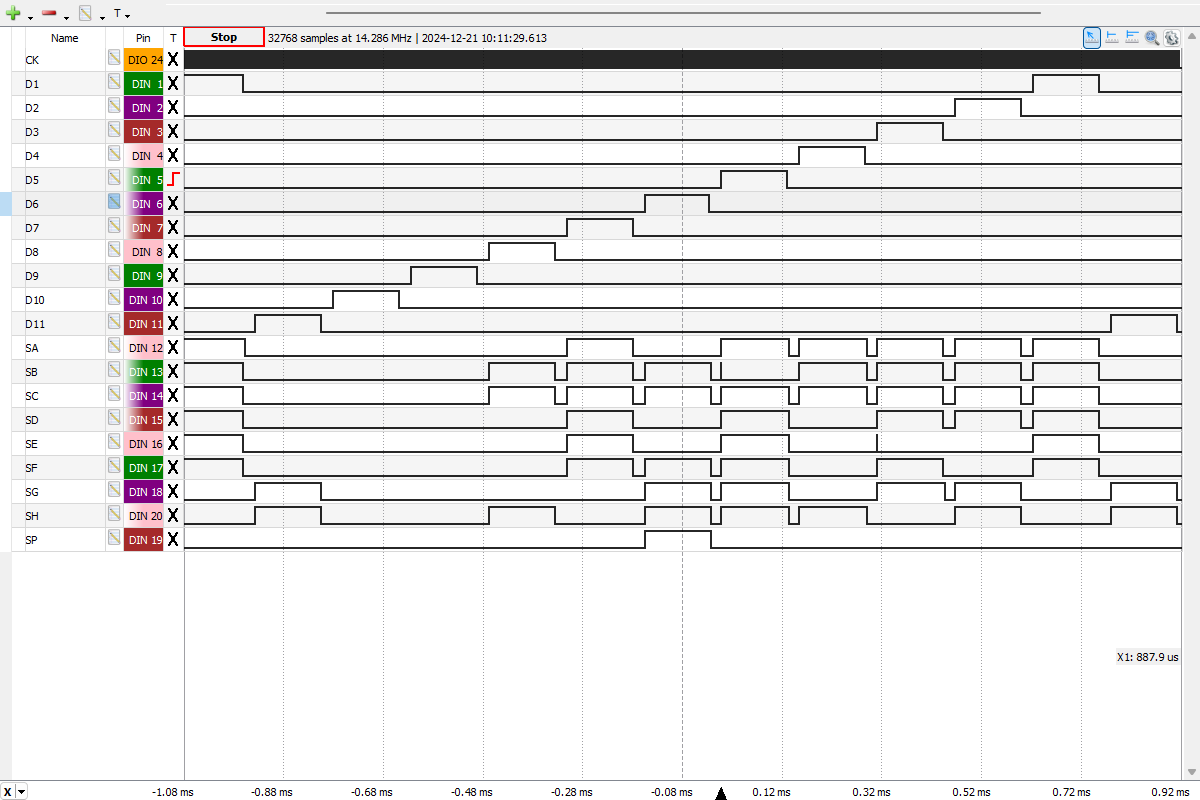

Complete Display Scanning Cycle of the TMS0603NC from a Brother Model 827R (Version 2) manufactured in September 1974 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0603NC Clock Frequency set to 250 kHz.

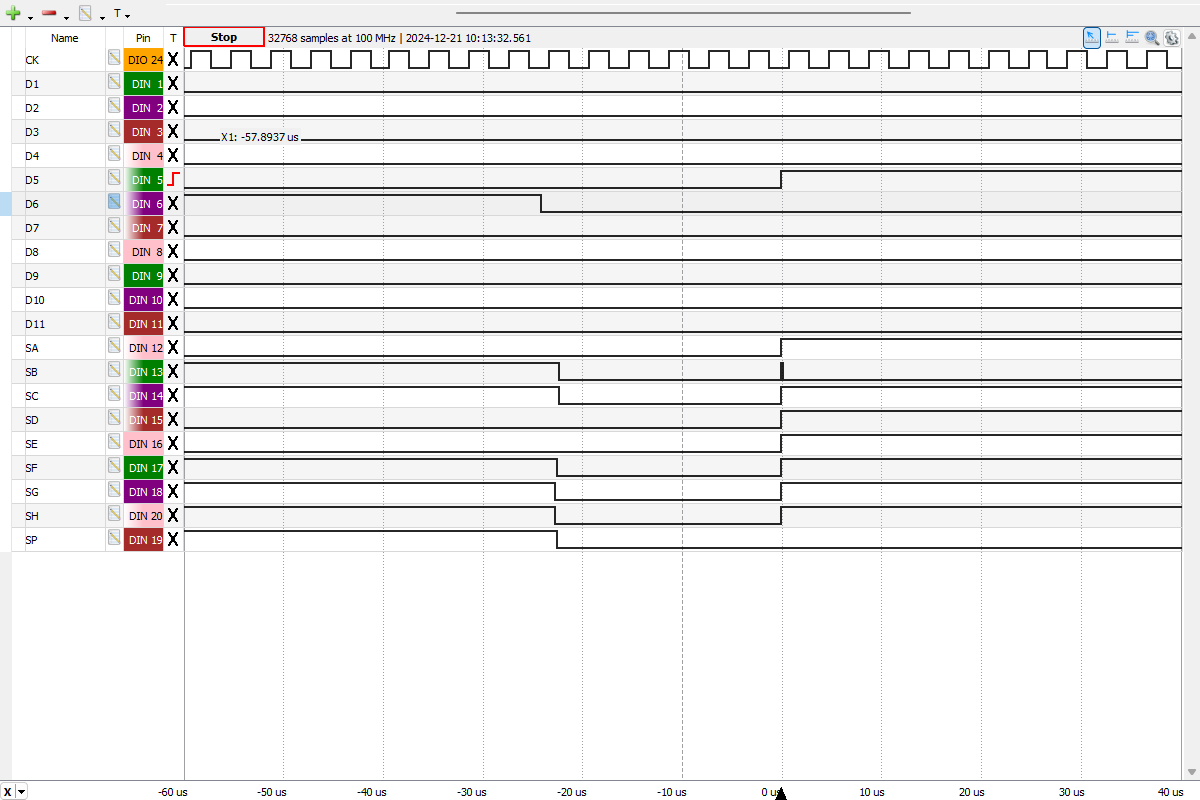

Close-up view of the transition between Digit D6 displaying "4" and Digit D5 displaying "6" of the TMS0603NC showing the Leading and Trailing Digit and Segment Blanking Times.
