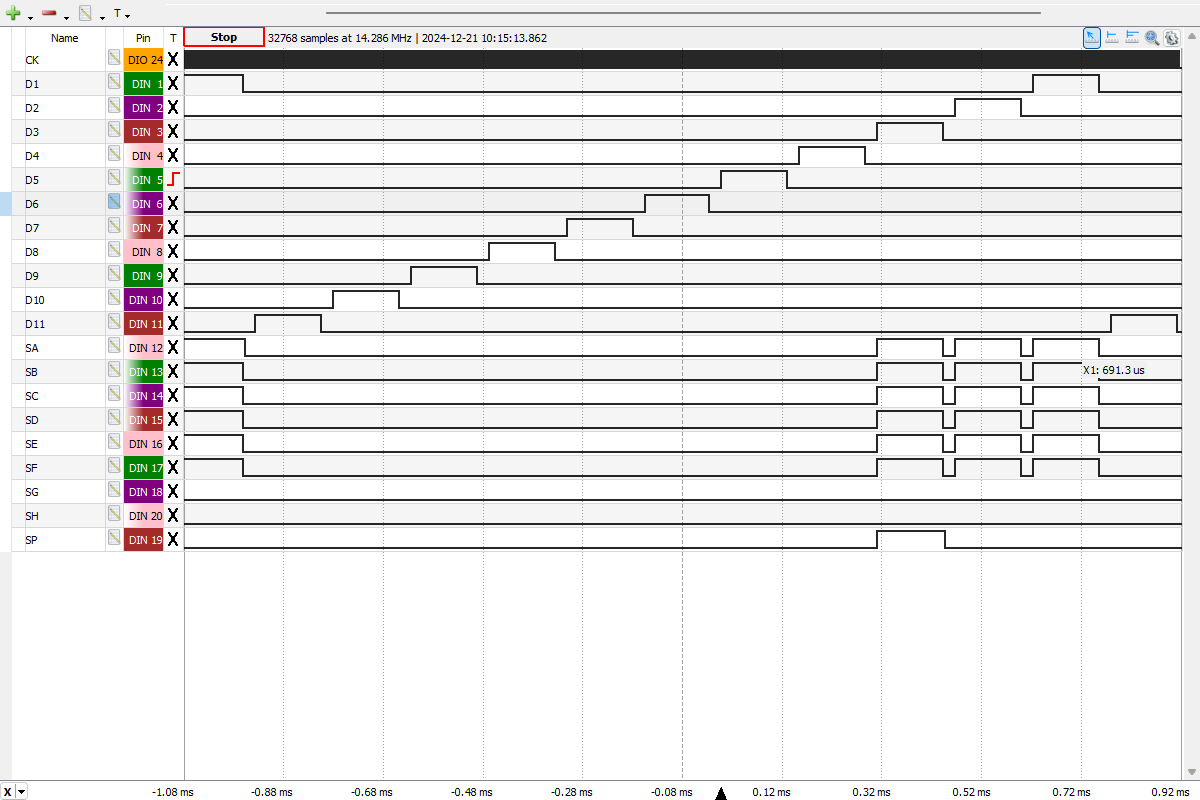

Complete Display Scanning Cycle of the TMS0603NC from a Brother Model 827R (Version 2) manufactured in September 1974 displaying "0." after power-up
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0603NC Clock Frequency set to 250 kHz.

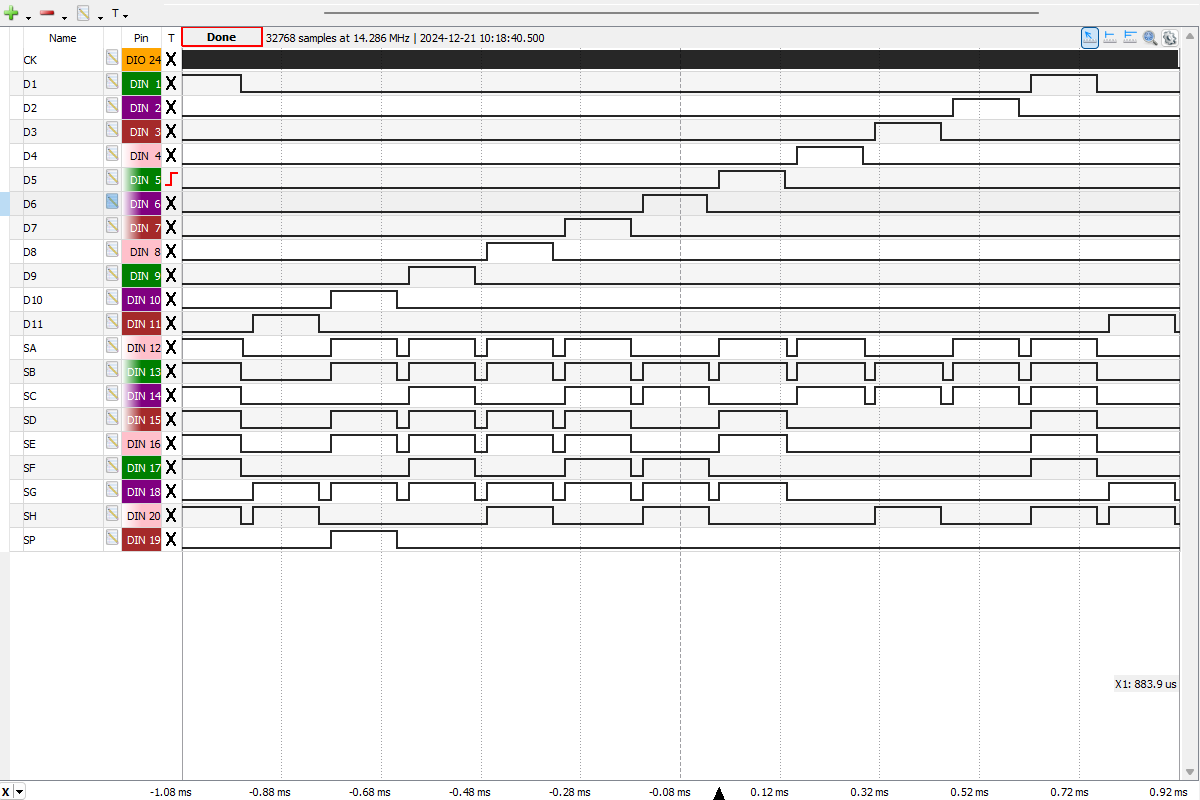

Flag-Information of the TMS0603NC on Segment H with a number stored in its Memory (D8), displaying "-2.8284271" (D11) and waiting (D6) for the input
of the divisor (D1 and D3), captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0603NC Clock Frequency set to 250 kHz.
