DATAMATH PICTURES

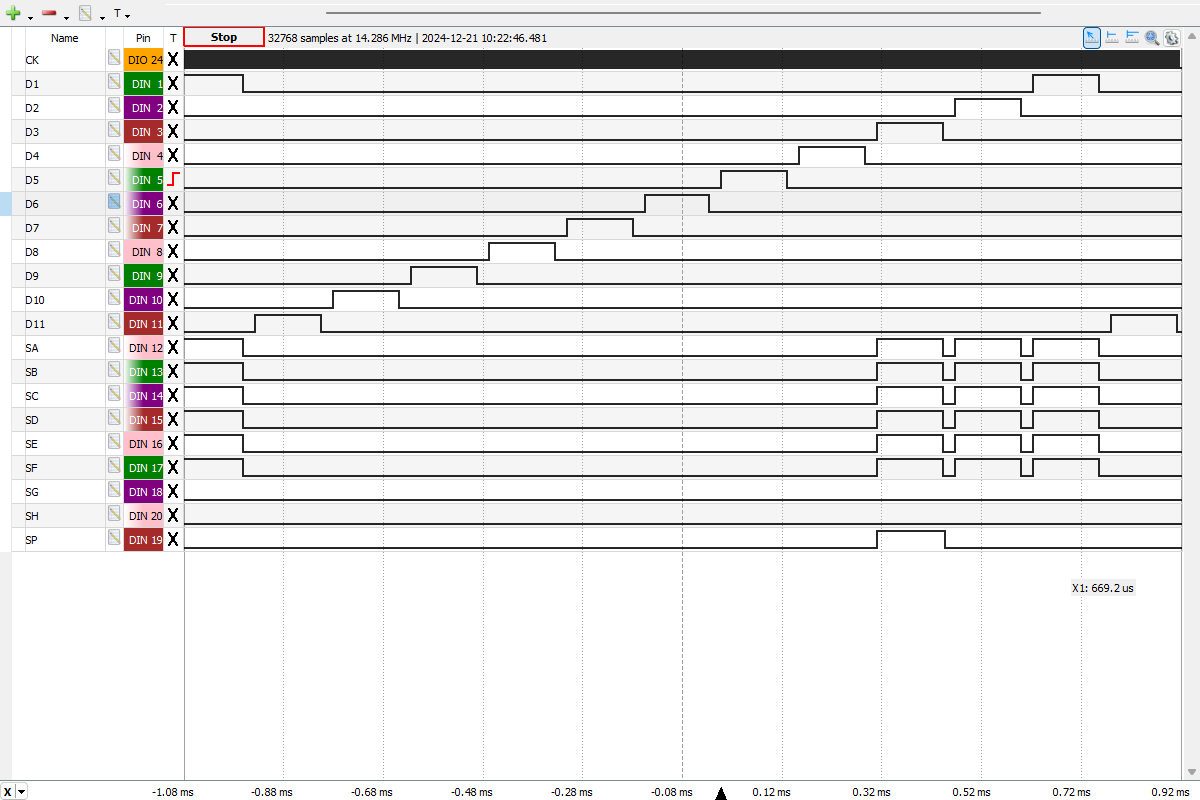

Complete Display Scanning Cycle of the TMS0604NC from a Dittel TMP608 manufactured in August 1974 displaying "0." after power-up
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0604NC Clock Frequency set to 250 kHz.

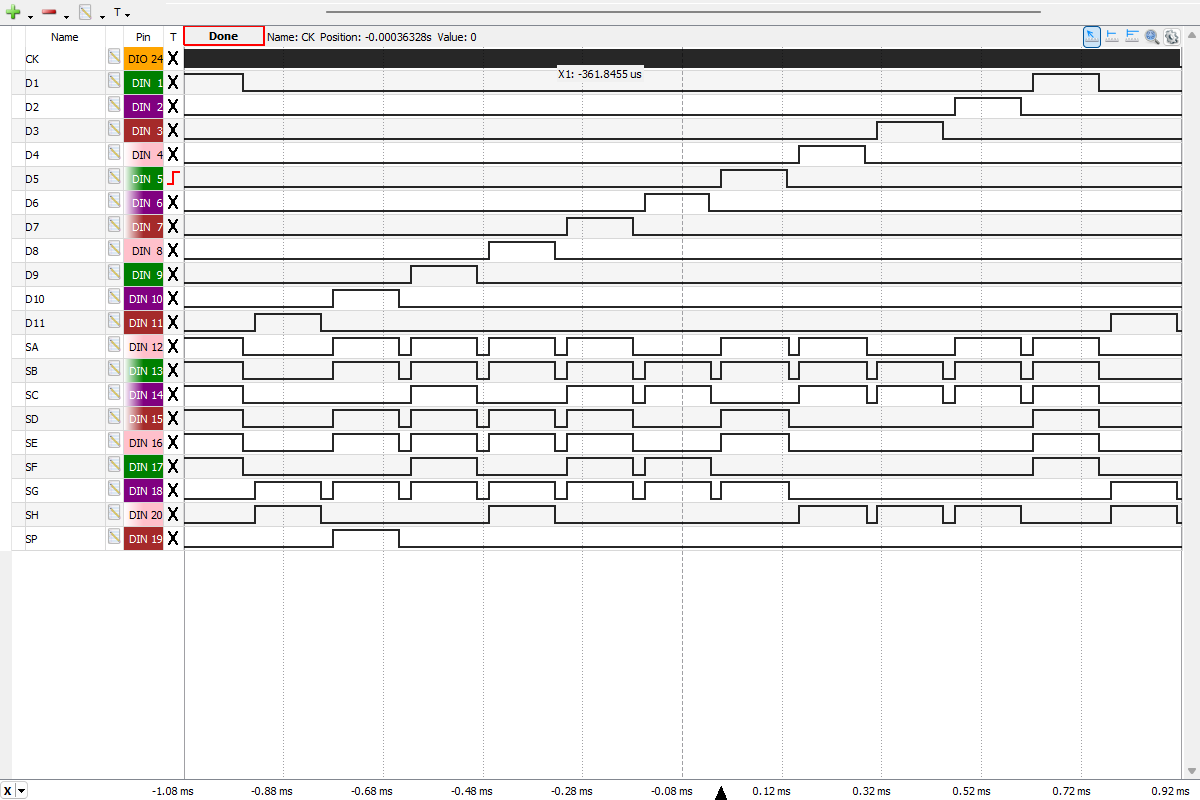

Flag-Information of the TMS0604NC on Segment H with a number stored in its Memory (D8), displaying "-2.8284271" (D11) and waiting for the input
of the divisor (D2, D3 and D4), captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0604NC Clock Frequency set to 250 kHz.
