| Complete Display

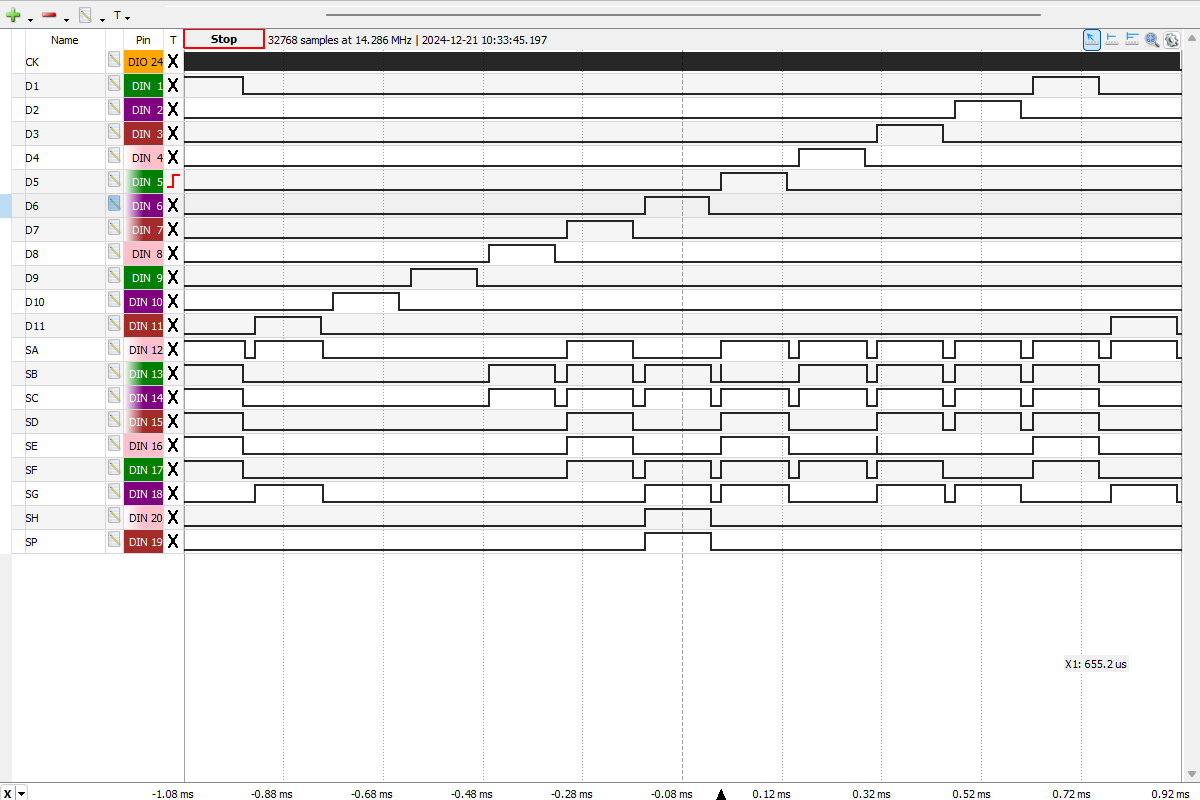

Scanning Cycle of the TMS0611NC from a Craig Model 4518 manufactured in
October 1974 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0611NC Clock Frequency set to 250 kHz.  |

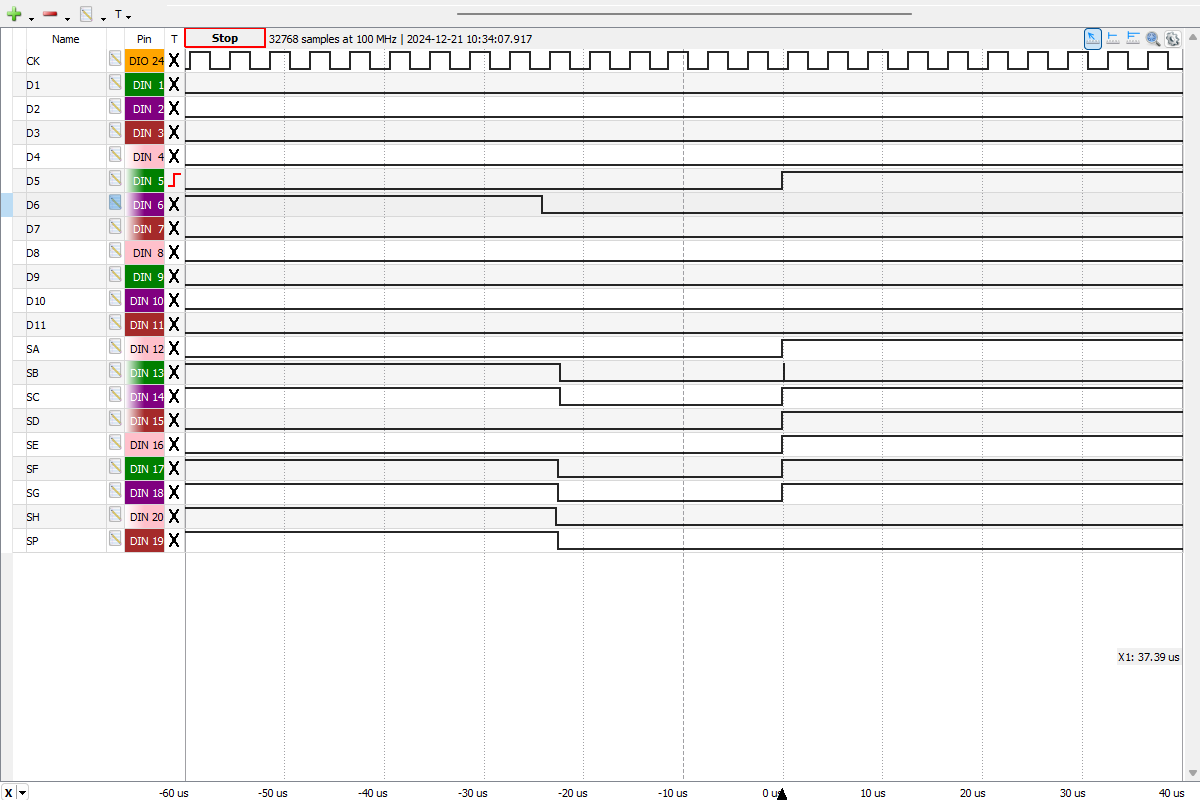

| Close-up view of the
transition between Digit D6 displaying "4" and Digit D5 displaying "6" of the TMS0611NC
showing the Leading and Trailing Digit and Segment Blanking
Times.
|
