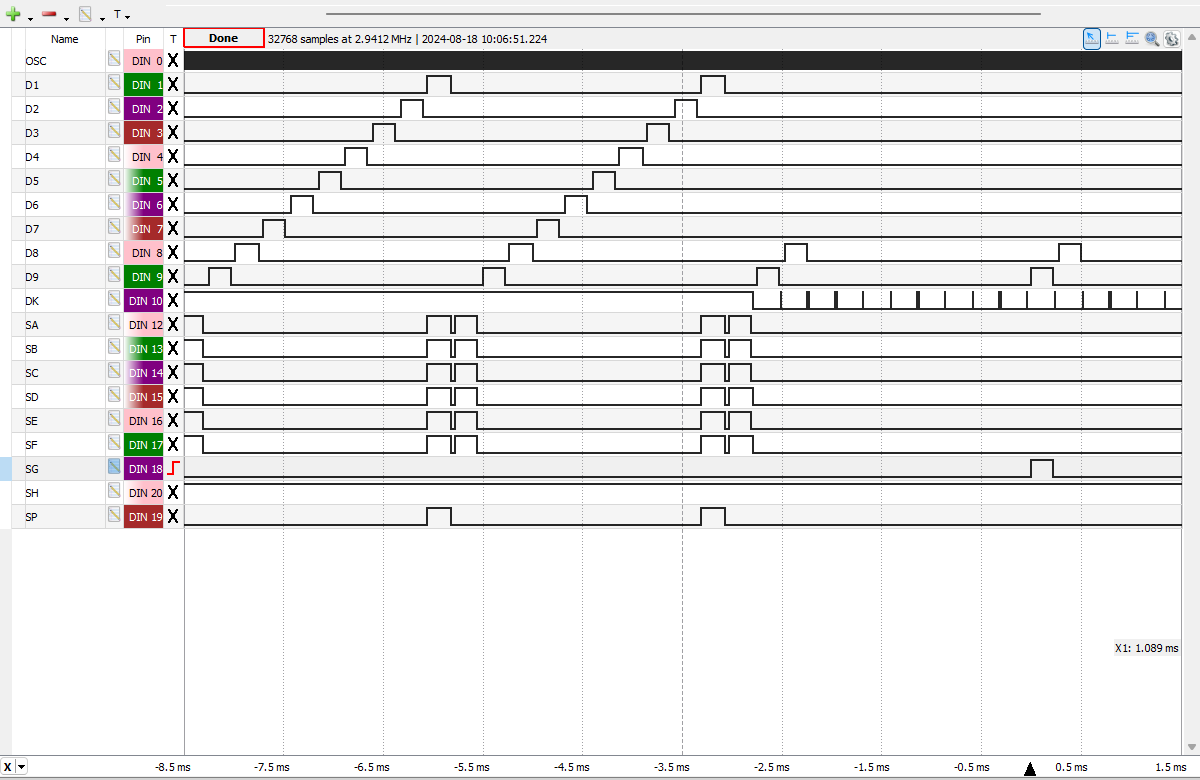

Active Display Scanning
Cycles of the TMS0801NC from a Canon LE-84 manufactured in July 1974
before entering Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0801NC scans only Digits D9 and D8 while outputting a '-' on the leftmost Digit.  |
|

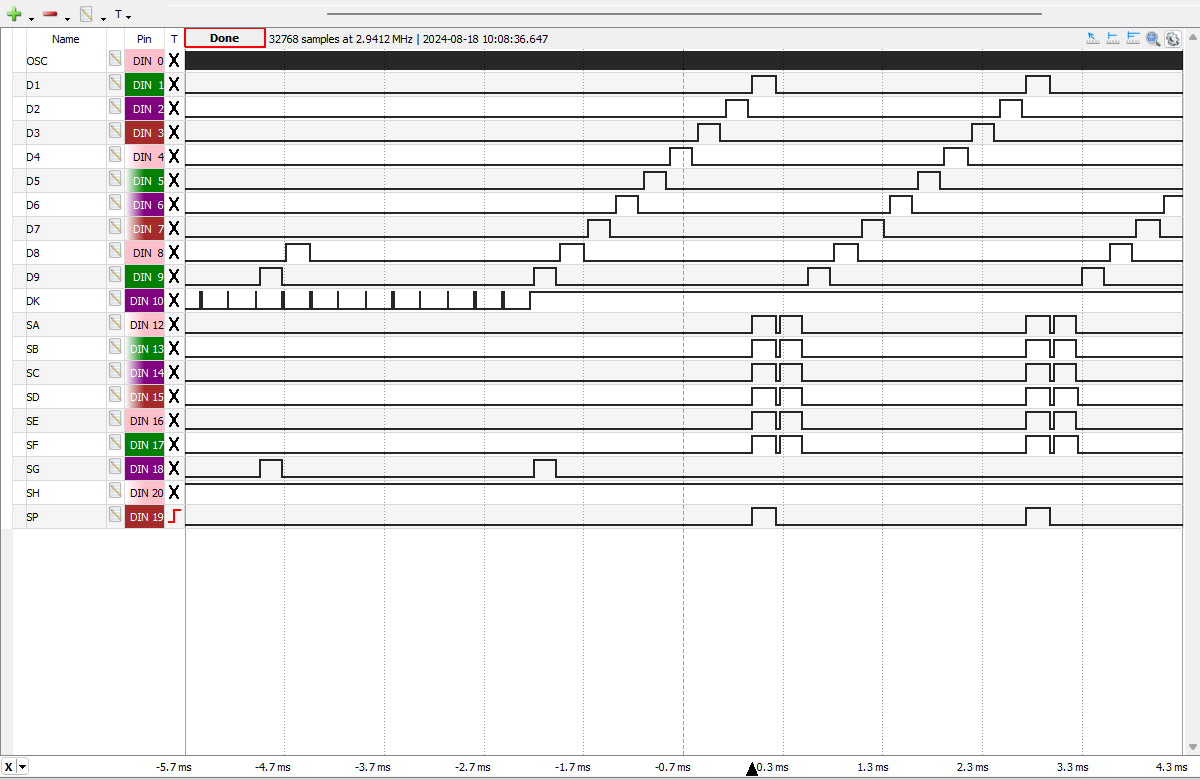

Passive Display Scanning
Cycles of the TMS0801NC from a Canon LE-84 manufactured in July 1974
before pressing [C] to cancel Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform.  |
|

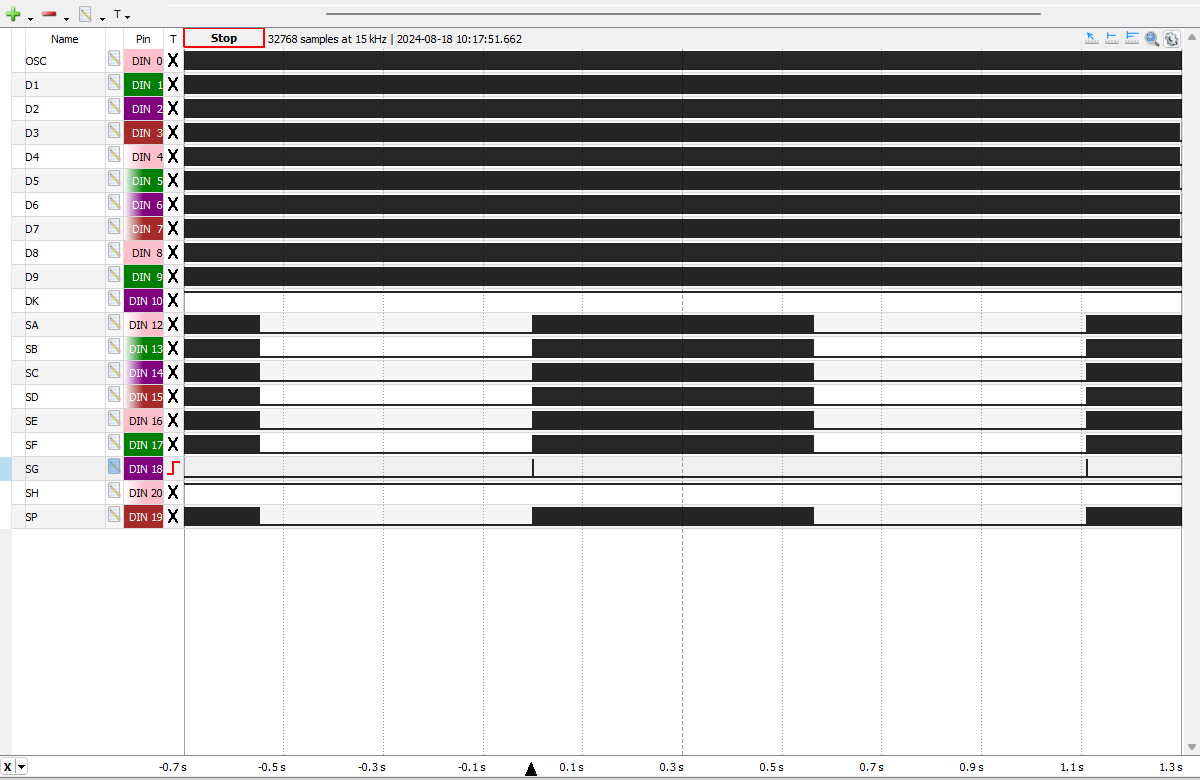

Flashing display of the TMS0801NC from a Canon LE-84 manufactured in July 1974
after a division of zero by zero and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. Please notice the short spike of Segment G.  |
|

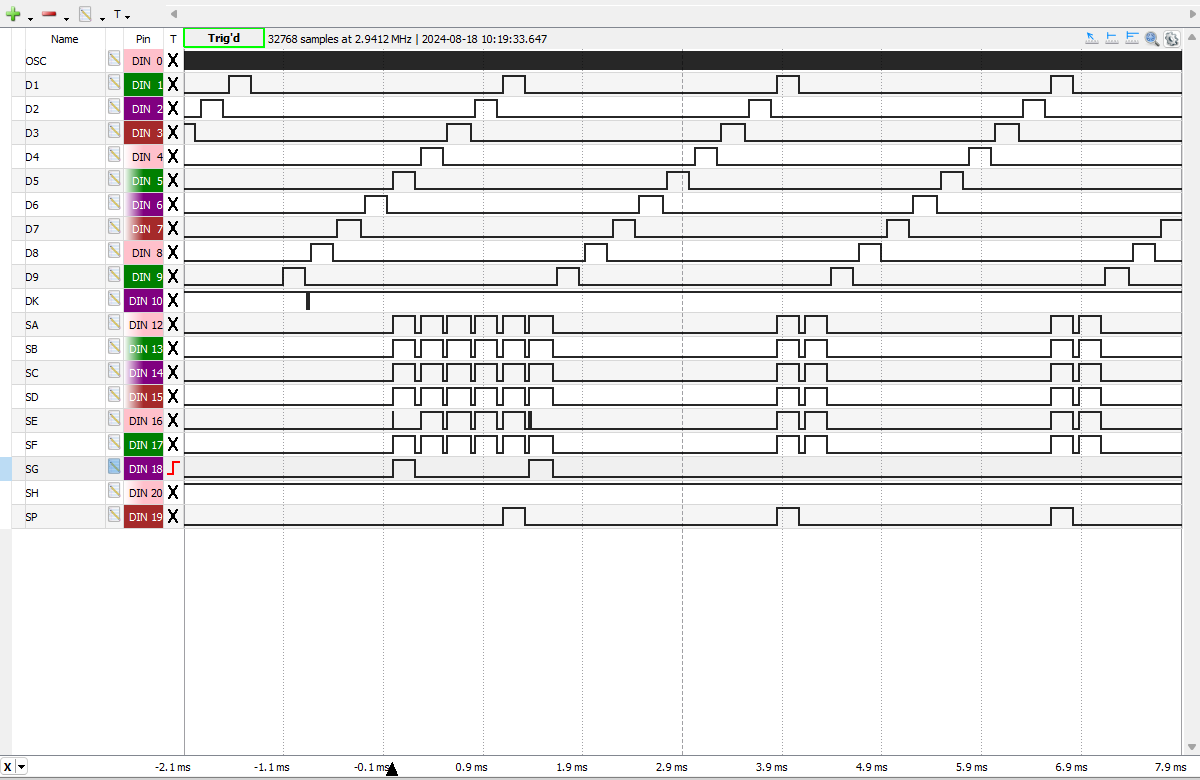

Close-up the flashing display of the TMS0801NC from a Canon LE-84 manufactured in July 1974
after a division of zero by zero and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. The first active display shows briefly '90000.'.  |
