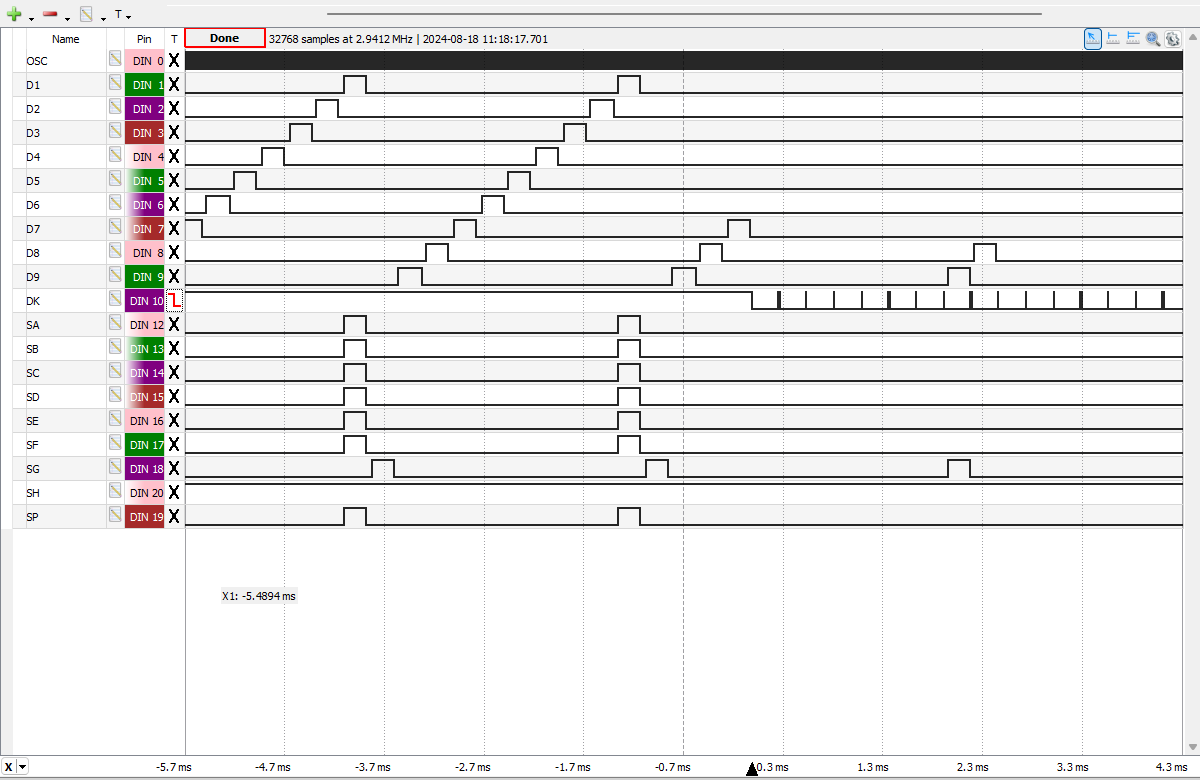

Active Display Scanning
Cycles of the TMS0803NC from a TI-2500-II manufactured in January 1975
before entering Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0803NC scans only Digits D9 and D8 while outputting a '-' on the leftmost Digit.  |
|

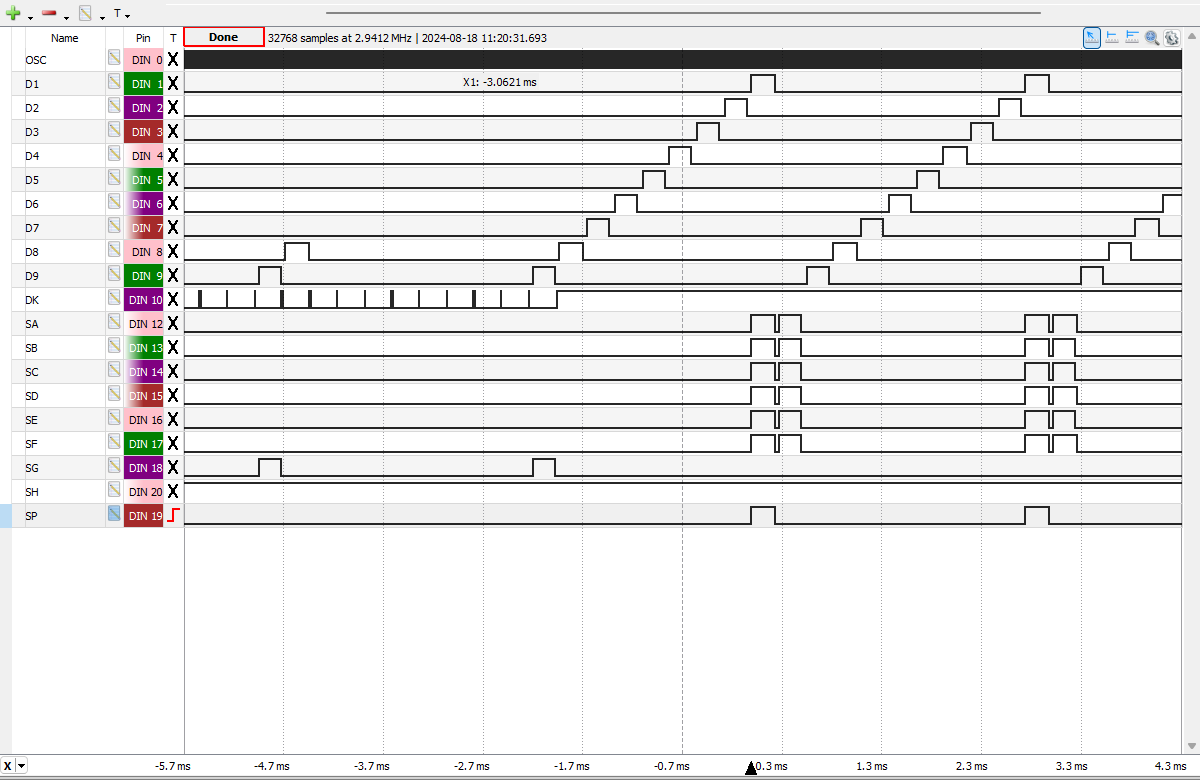

Passive Display Scanning
Cycles of the TMS0803NC from a TI-2500-II manufactured in January 1975
before pressing [C] to cancel Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform.  |
