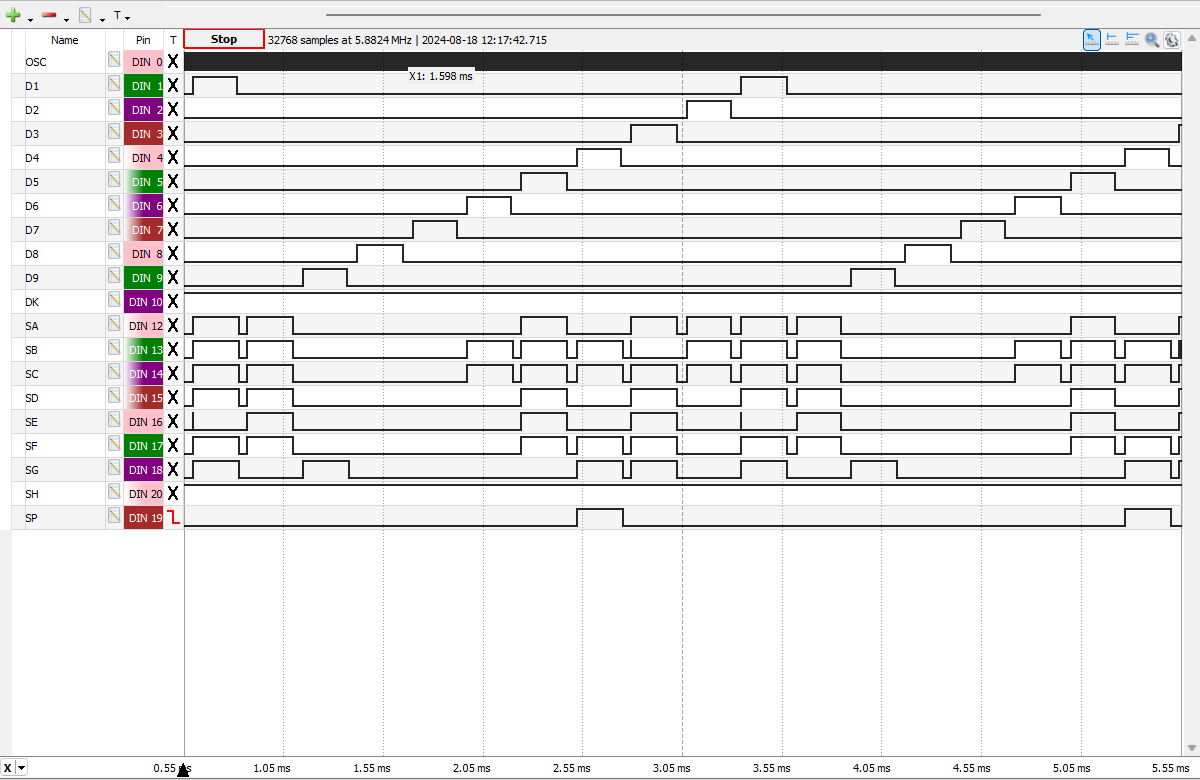

Complete Display Scanning Cycle of the TMS0807NC from a Canon LE-85 manufactured in October 1974 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0807NC Clock Frequency set to 160 kHz.

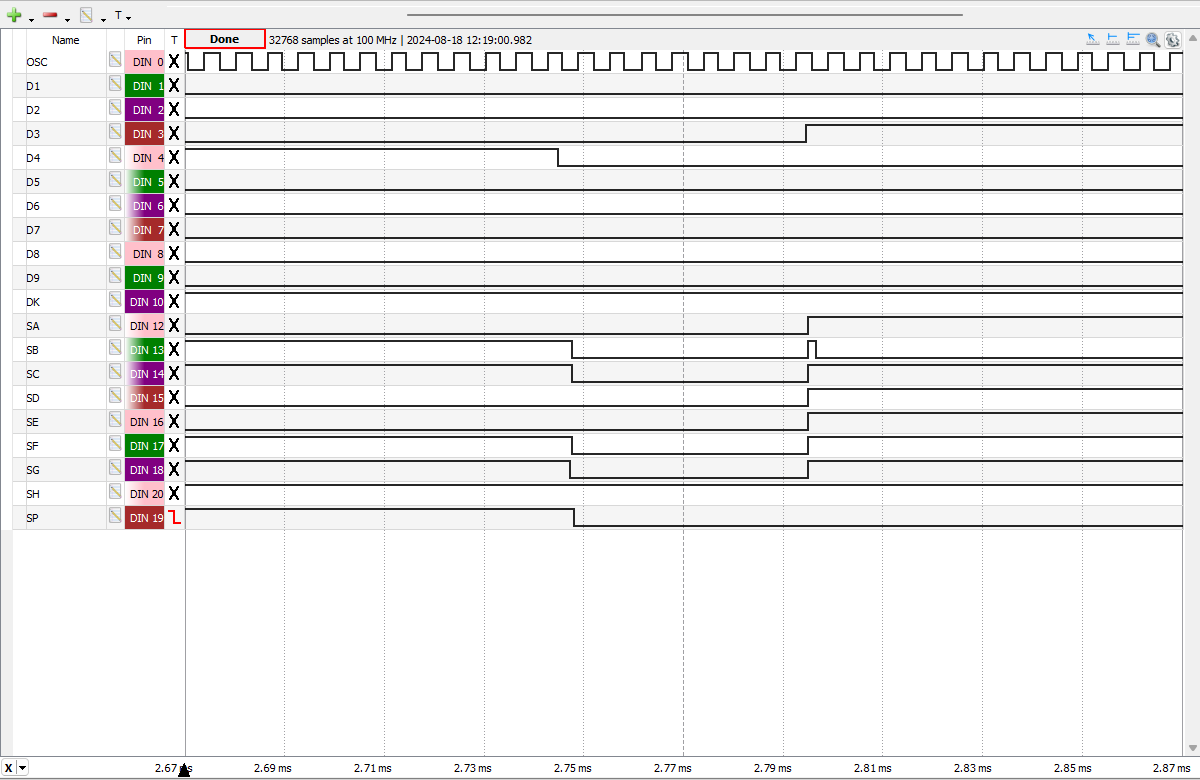

Close-up view of the transition between Digit D4 displaying "4" and Digit D3 displaying "6" of the TMS0807NC showing the Leading and Trailing Digit and Segment Blanking Times.
