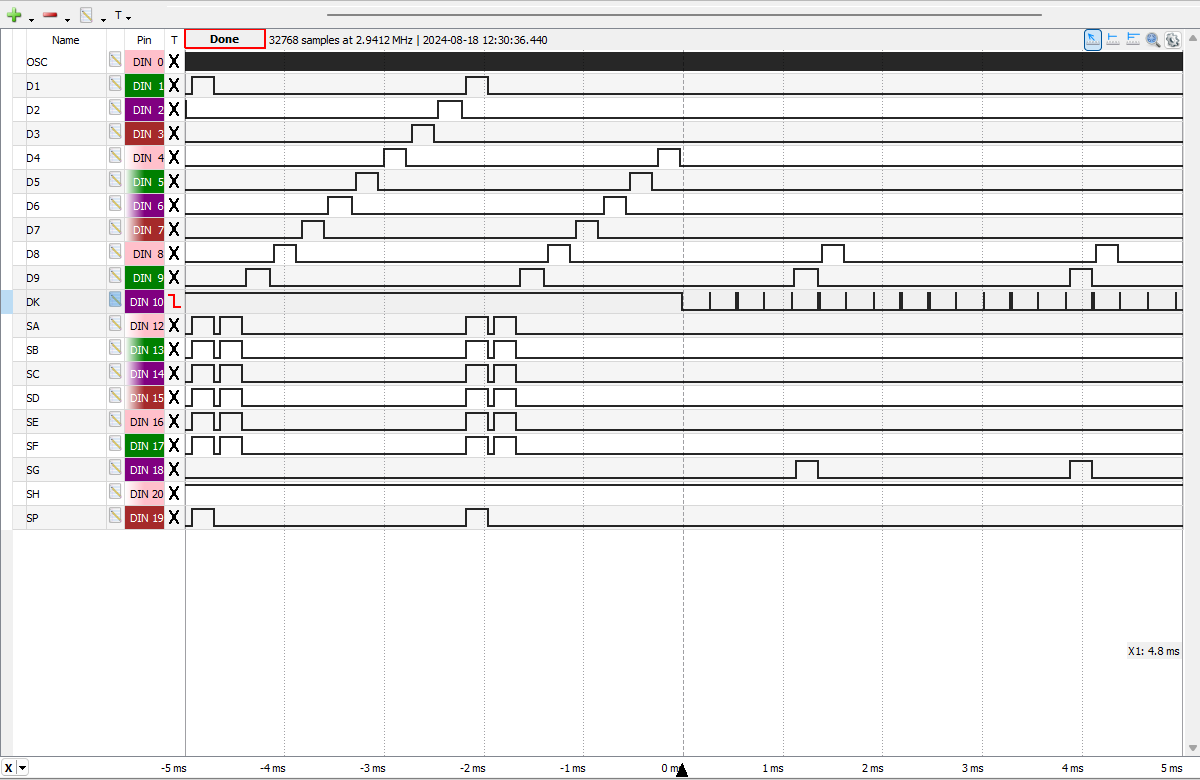

Active Display Scanning Cycles of the TMS0807NC from a Canon LE-85 manufactured in October 1974 before entering Timeout and captured with the
Digilent Digital Discovery connected to the DCM-50A Platform. TMS0807NC scans only Digits D9 and D8 while outputting a '-' on the leftmost Digit.

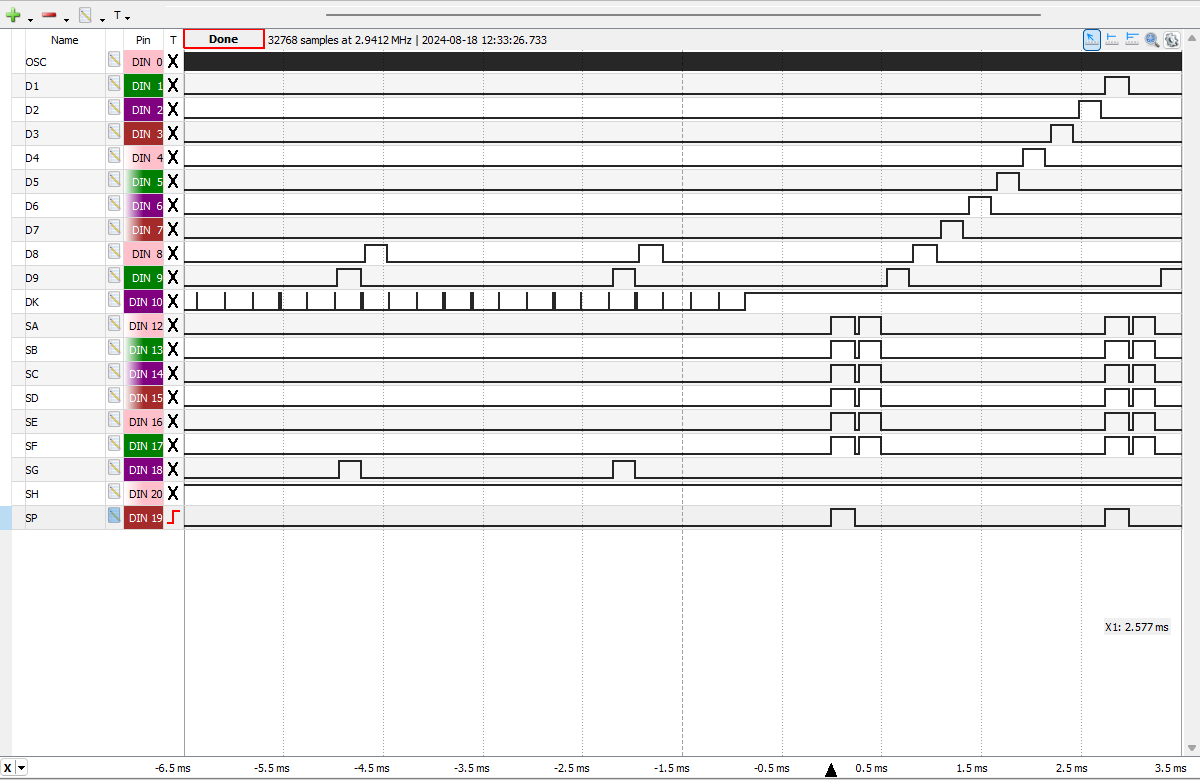

Passive Display Scanning Cycles of the TMS0807NC from a Canon LE-85 manufactured in October 1974 before pressing [C] to cancel Timeout and captured with the
Digilent Digital Discovery connected to the DCM-50A Platform.
