Additional Pictures

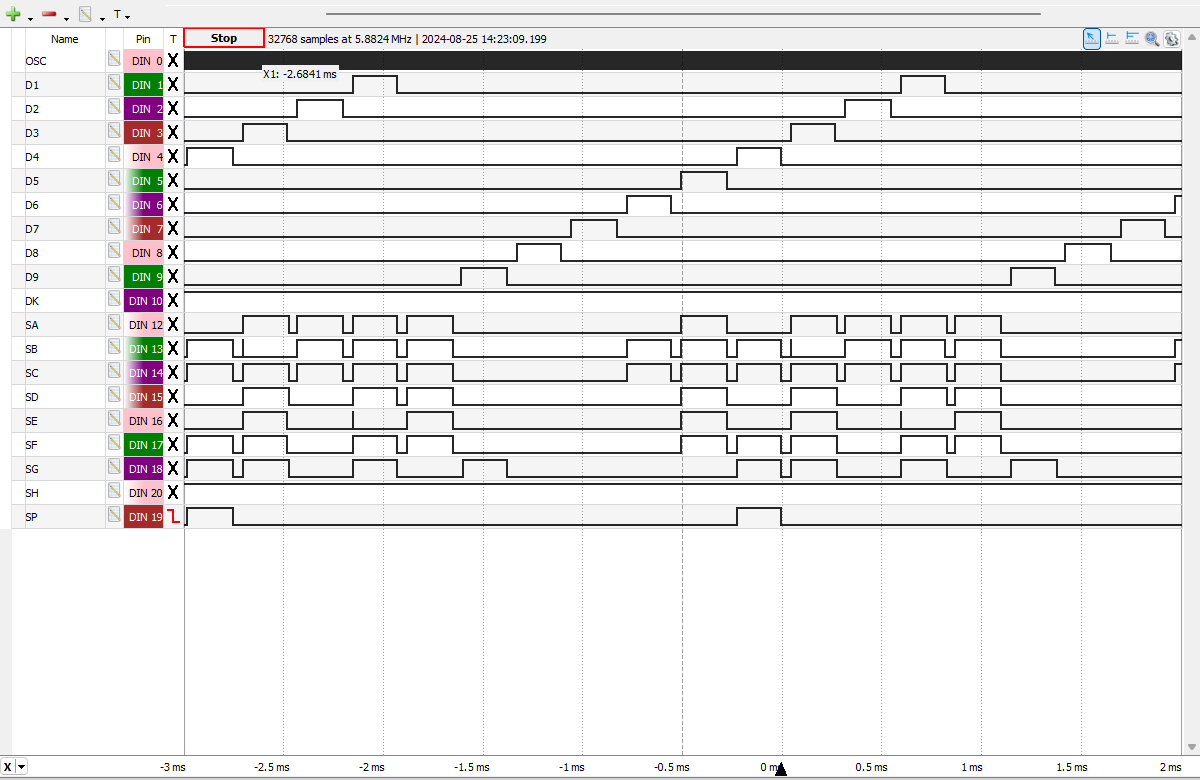

Complete Display Scanning Cycle of the TMS0833NC from an MBO Expert manufactured in October 1975 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0833NC Clock Frequency set to 160 kHz.

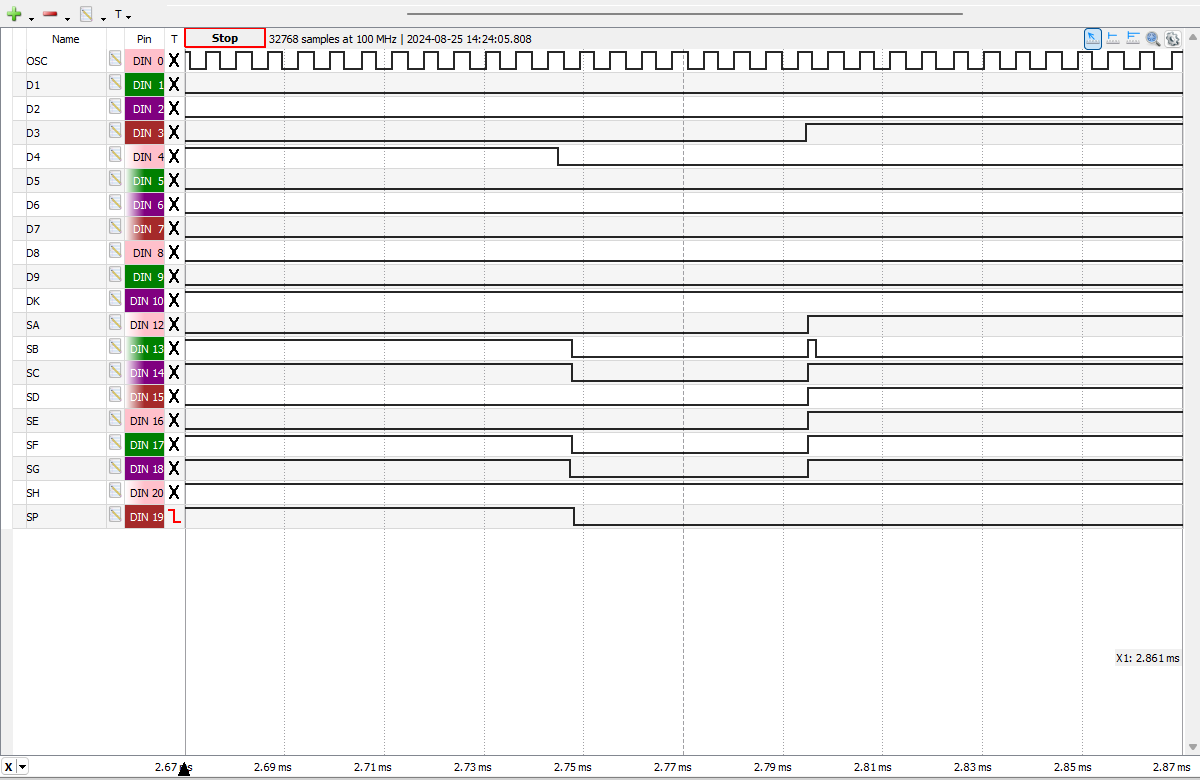

Close-up view of the transition between Digit D4 displaying "4" and Digit D3 displaying "6" of the TMS0833NC showing the Leading and Trailing Digit and Segment Blanking Times.


If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, August 25, 2024. No reprints without written permission.
