Additional Pictures
|

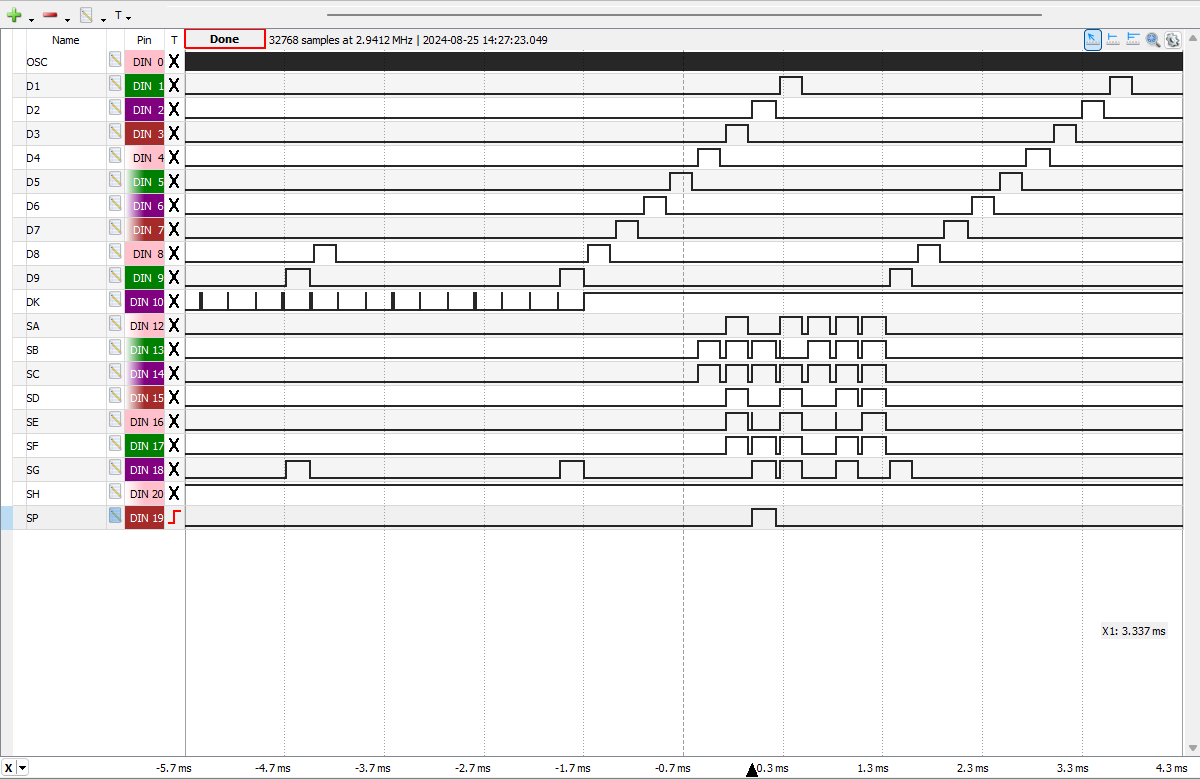

Active Display Scanning
Cycles of the TMS0833NC from an MBO Expert manufactured in October 1975
before entering Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0833NC scans only Digits D9 and D8 while outputting a '-' on the leftmost Digit.  |
|

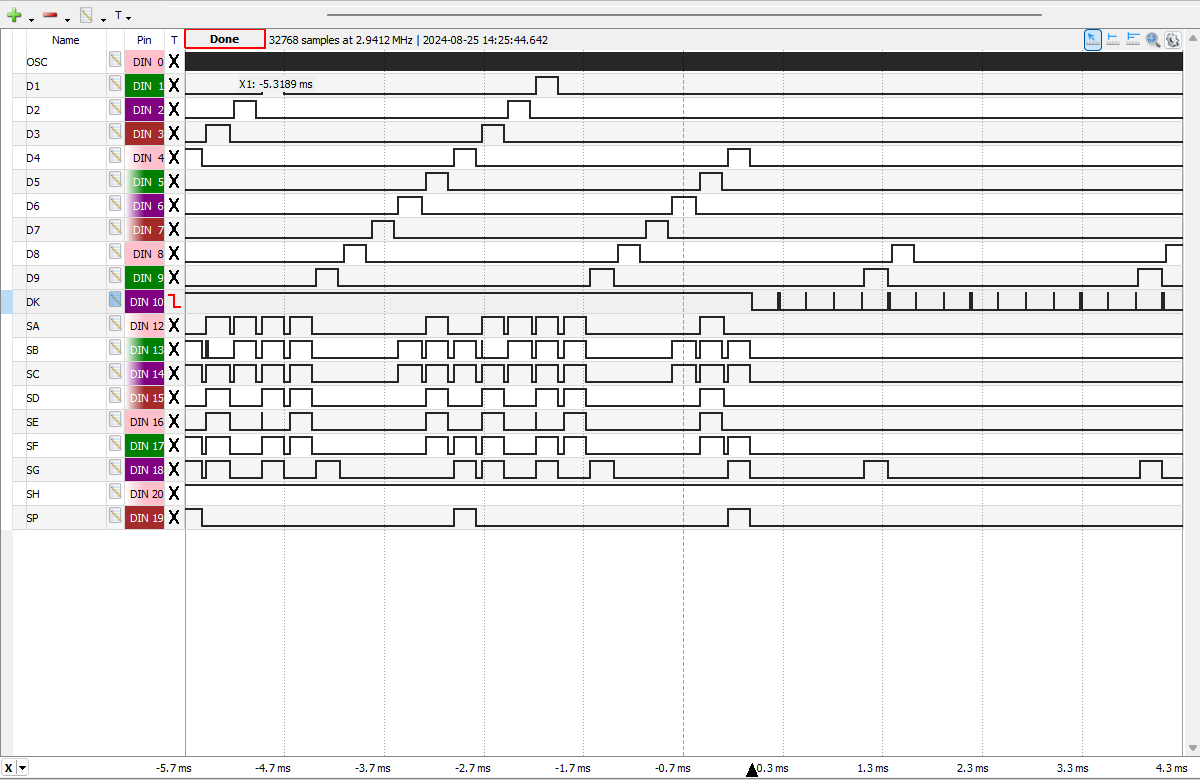

Passive Display Scanning
Cycles of the TMS0833NC from an MBO Expert manufactured in October 1975
before pressing [C] to cancel Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0833NC remembers the the previous result before clearing it.  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, August 25, 2024. No reprints without written permission.
