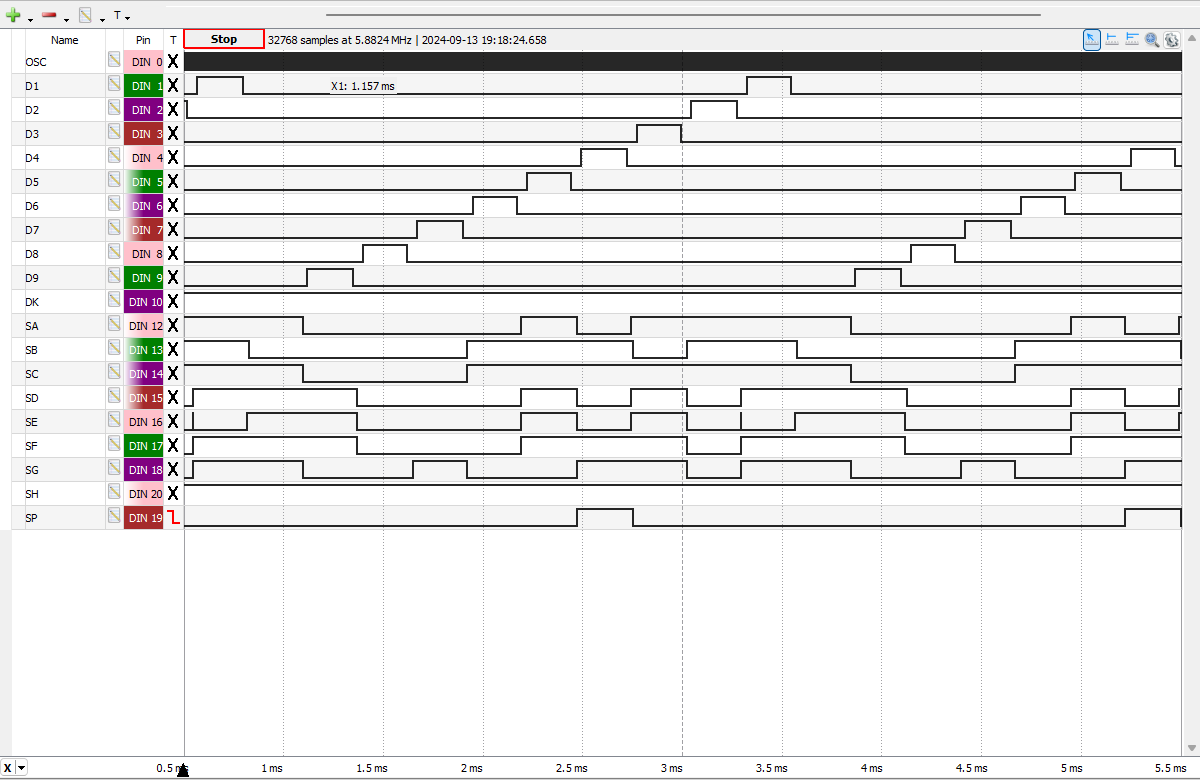

Scanning Cycle of the TMS0851NL from a Sovrin Model 128
manufactured in May 1975 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0851NL Clock Frequency set to 160 kHz.  |

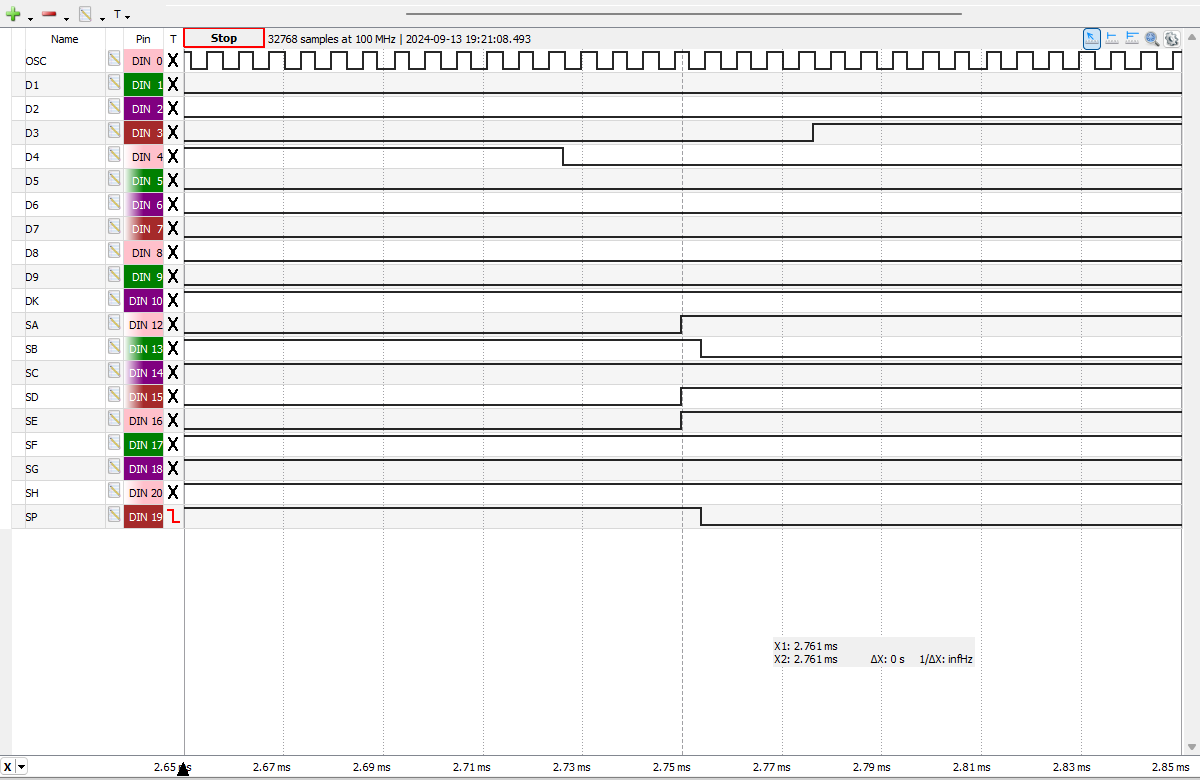

| Close-up view of the
transition between Digit D4 displaying "4" and Digit D3 displaying "6" of
the TMS0851NL showing the Leading and Trailing Digit Blanking
Times.
|
