Additional Pictures
|

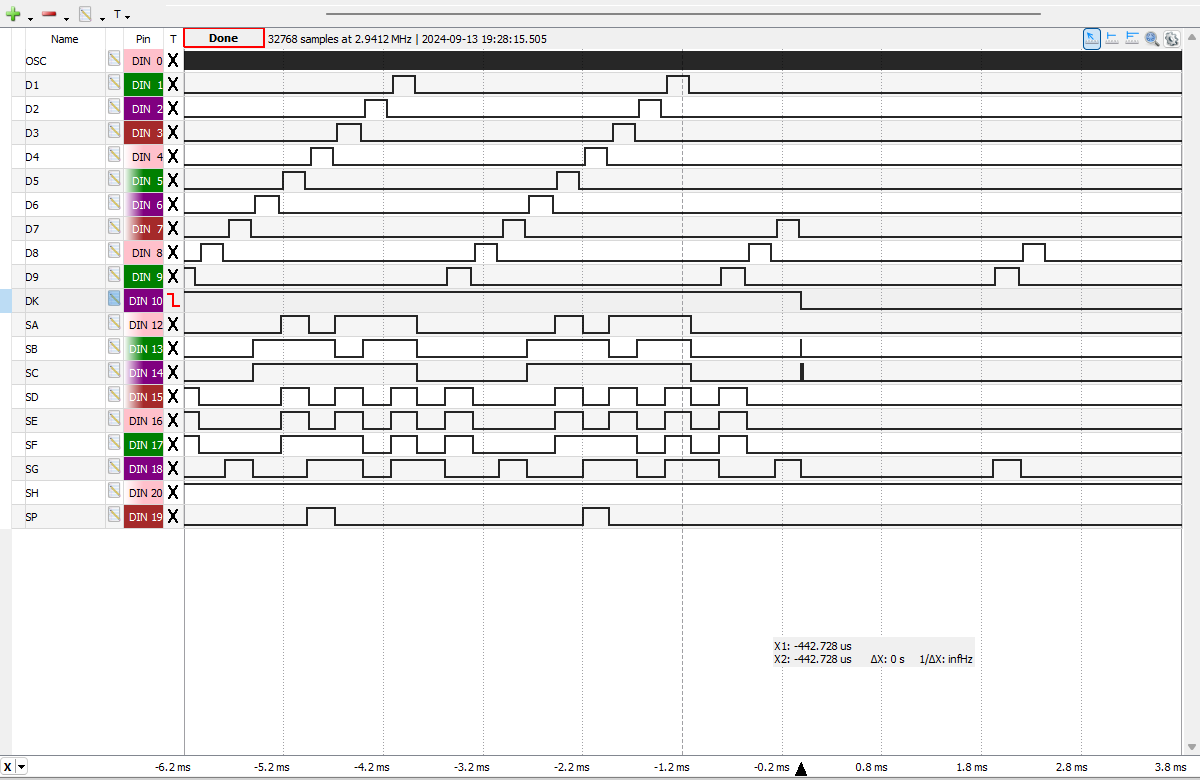

Active Display Scanning
Cycles of the TMS0851NL from a Sovrin Model 128 manufactured in May 1975
before entering Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0851NL scans only Digits D9 and D8 while outputting a '-' on the leftmost Digit.  |
|

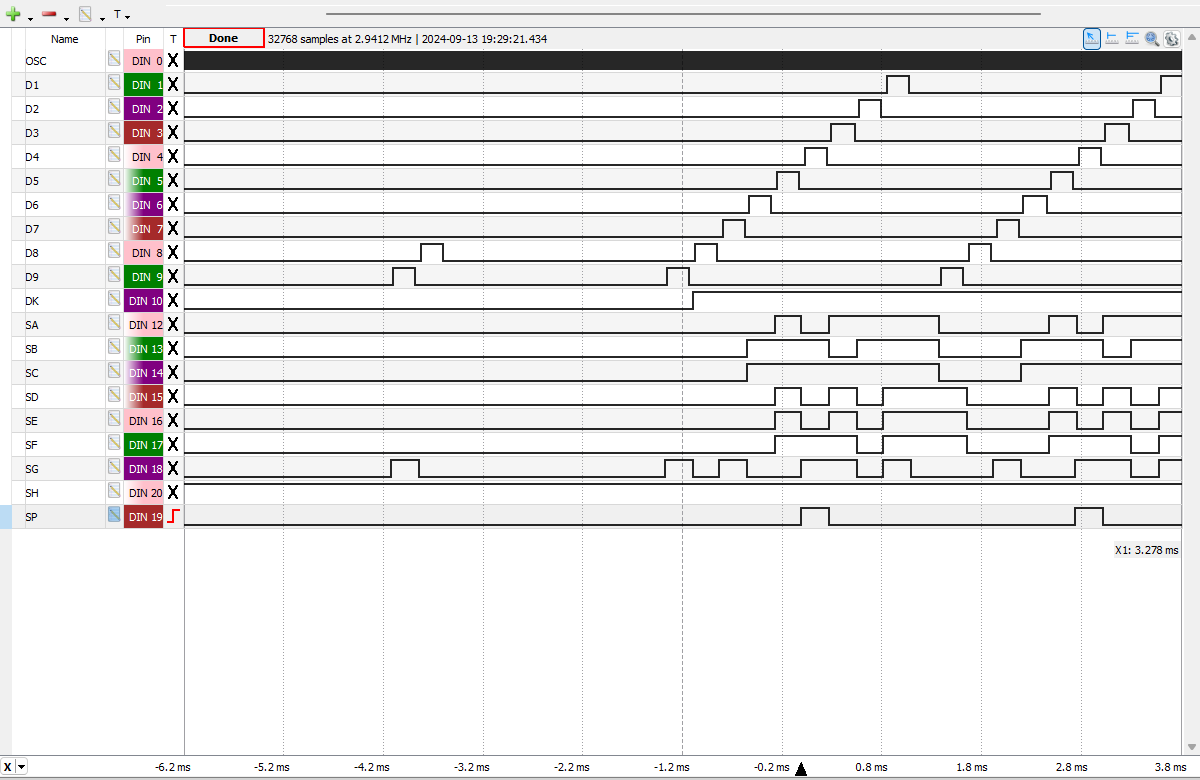

Passive Display Scanning
Cycles of the TMS0851NL from a Sovrin Model 128 manufactured in May 1975
before pressing [D] to cancel Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform.  |
