Additional Pictures

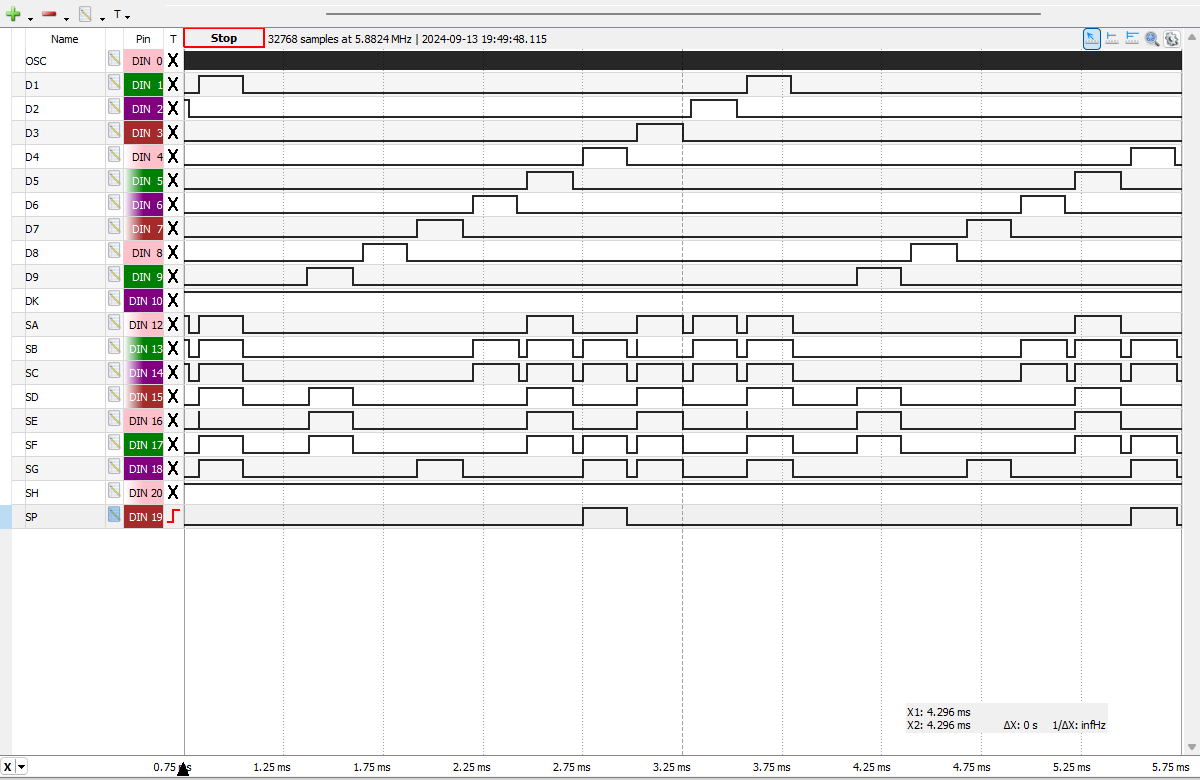

Complete Display Scanning Cycle of the TMS0852NC from a TI-150 manufactured in November 1974 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0852NC Clock Frequency set to 160 kHz.

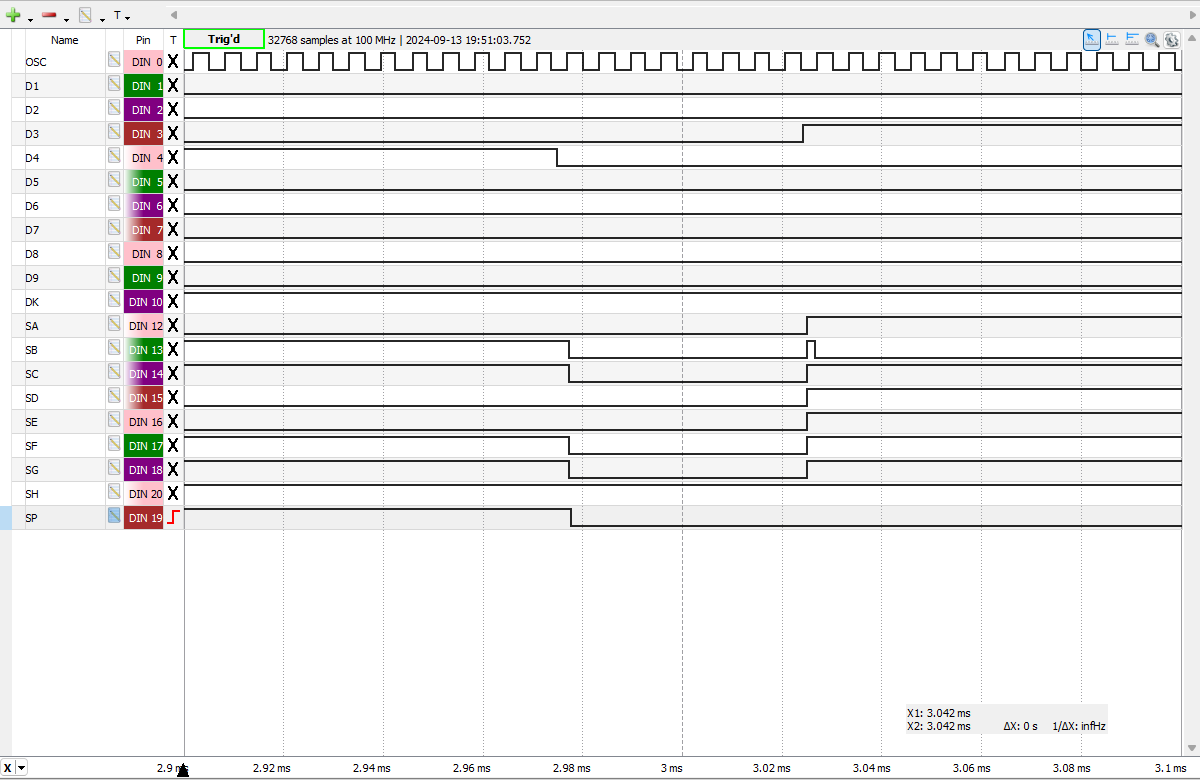

Close-up view of the transition between Digit D4 displaying "4" and Digit D3 displaying "6" of the TMS0852NC showing the Leading and Trailing Digit and Segment Blanking Times.
