Additional Pictures
| Complete Display

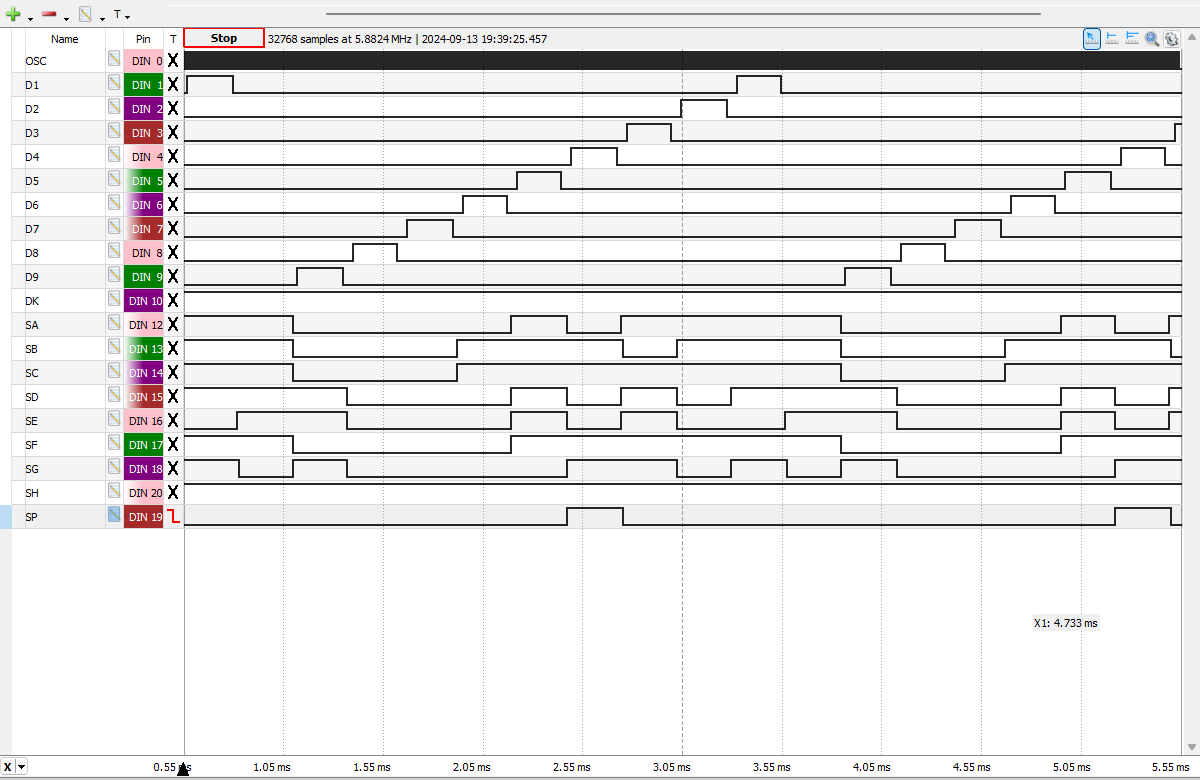

Scanning Cycle of the TMS0855NC from a Canon LD-80
manufactured in December 1974 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0855NC Clock Frequency set to 160 kHz.  |

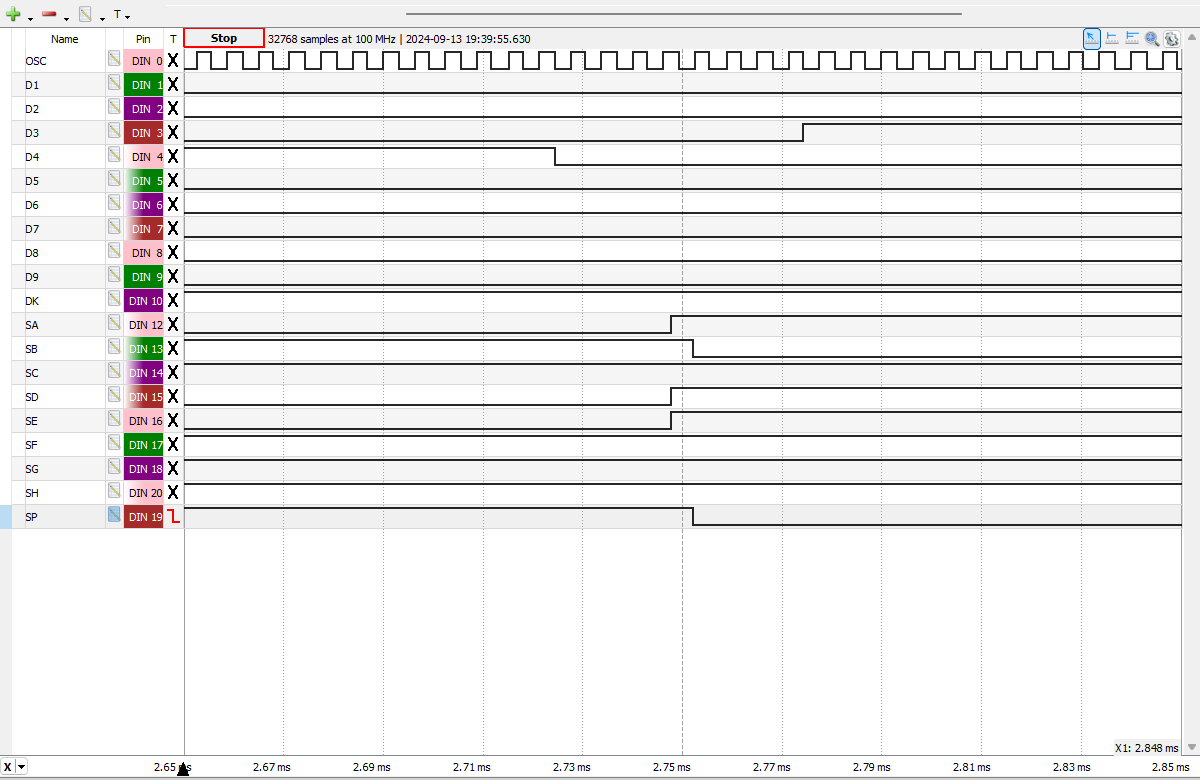

| Close-up view of the
transition between Digit D4 displaying "4" and Digit D3 displaying "6" of the TMS0855NC
showing the Leading and Trailing Digit Blanking
Times.
|
If you have additions to the above article please email: joerg@datamath.org.
