Additional Pictures
|

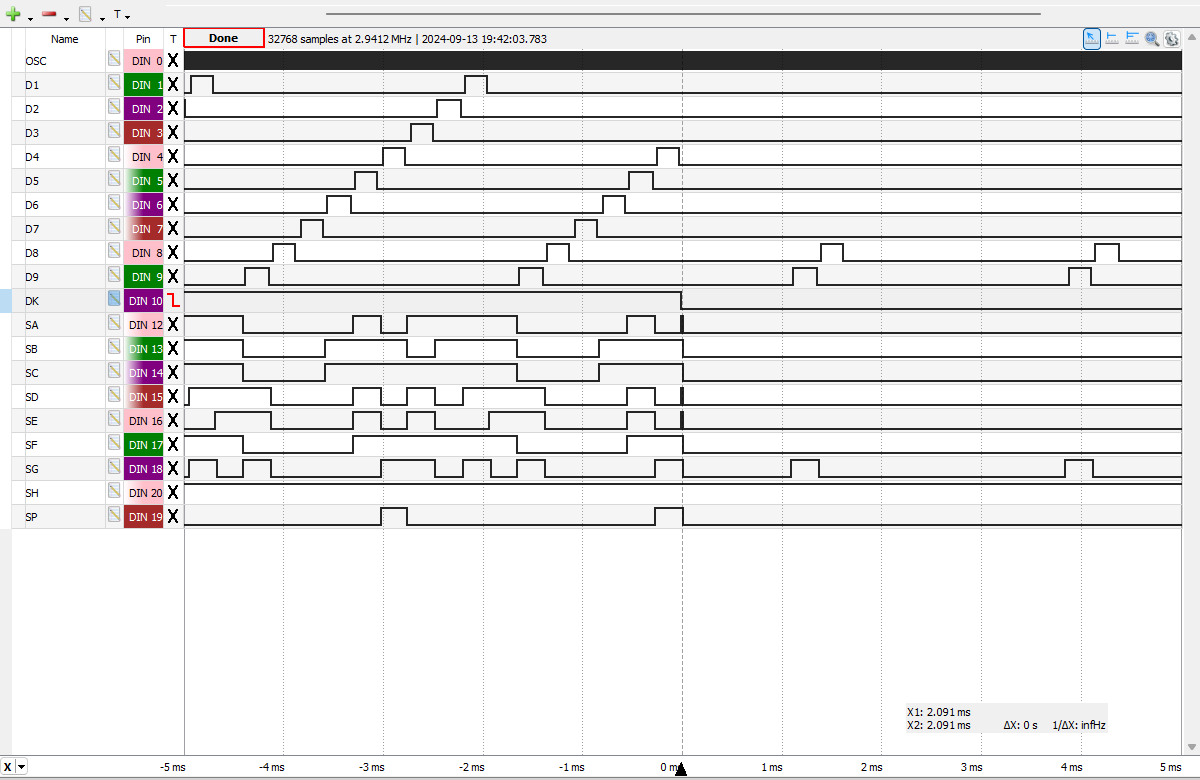

Active Display Scanning
Cycles of the TMS0855NC from a Canon LD-80 manufactured in December 1974
before entering Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0855NC scans only Digits D9 and D8 while outputting a '-' on the leftmost Digit.  |
|

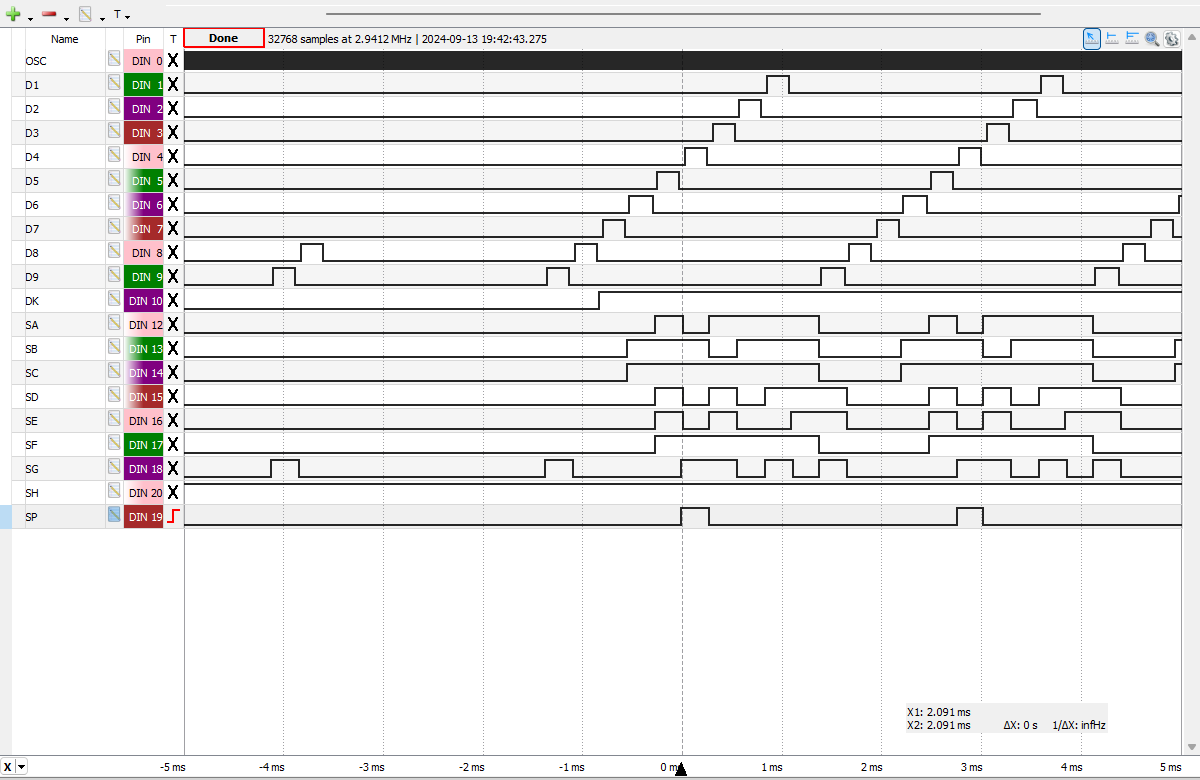

Passive Display Scanning Cycles of the TMS0855NC from a
Canon LD-80 manufactured in December 1974
before pressing [D] to cancel Timeout and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform.  |
