Additional Pictures
| Multiple

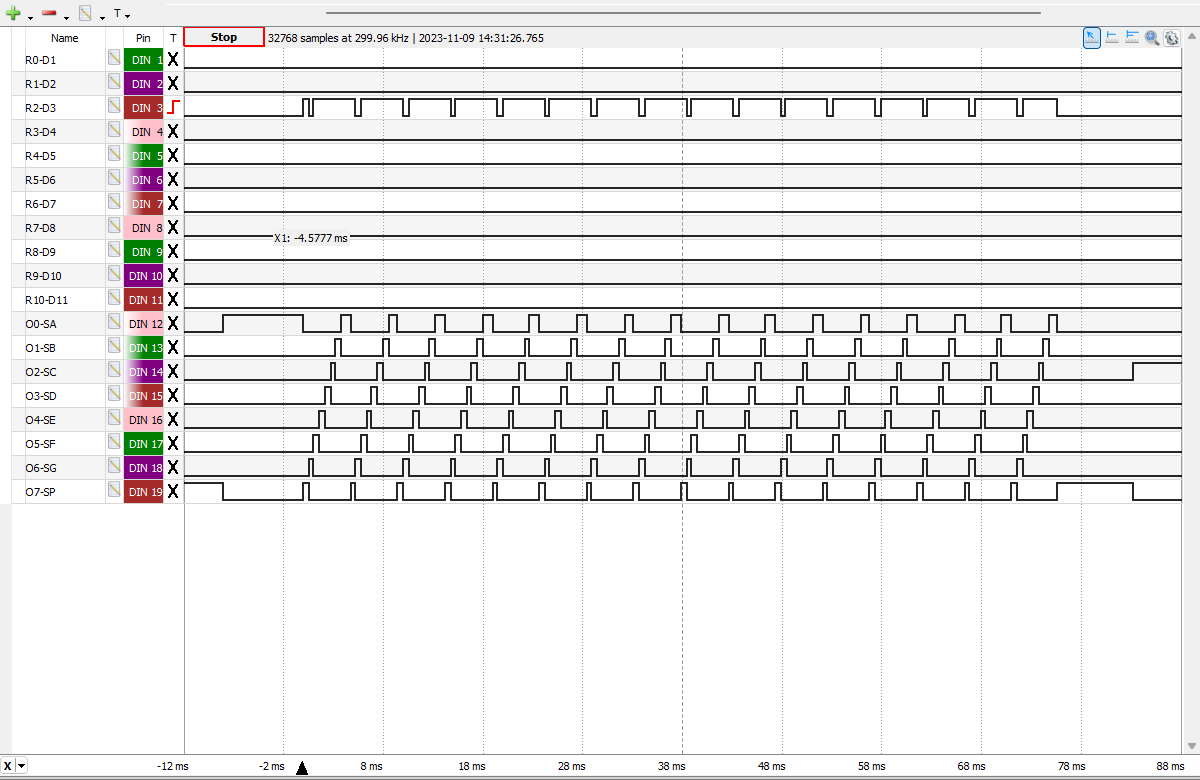

Active Display Scanning
Cycles of the TMS0972NL from a TI-1250 manufactured in August 1977 flashing the display and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0972NL actually alternates between two completely different Display Scanning Cycles.  |
| Multiple

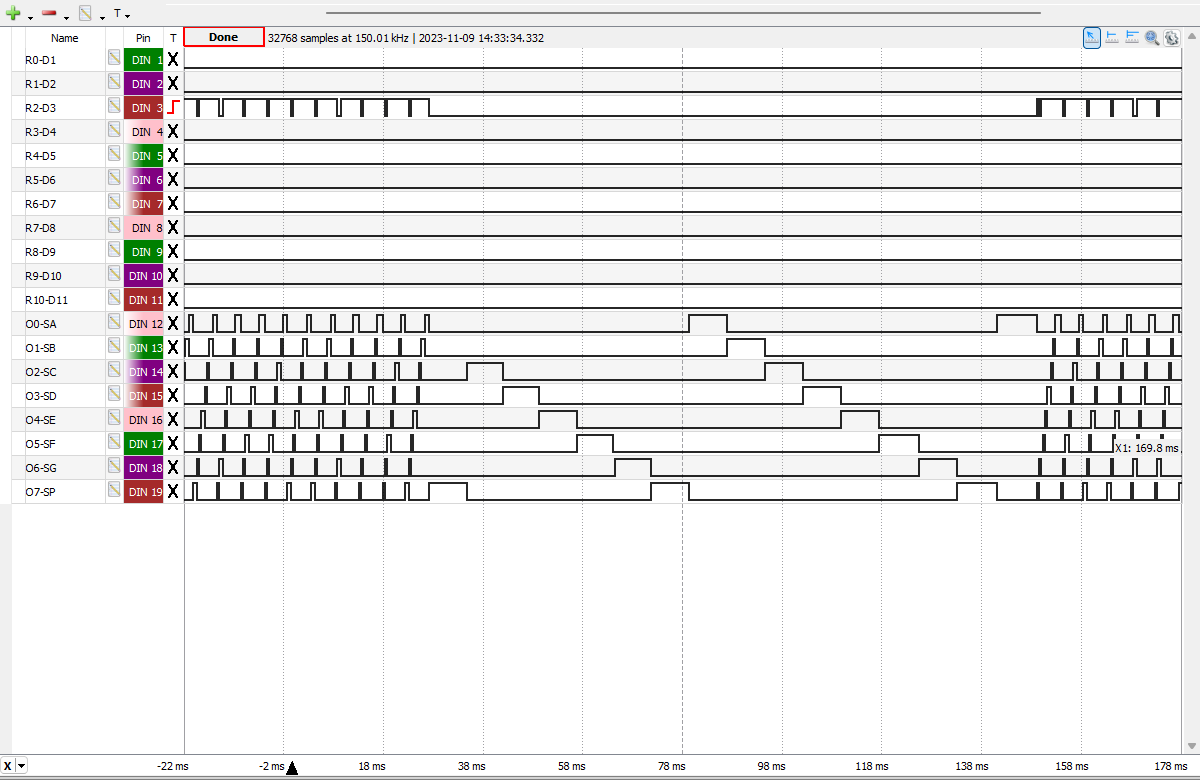

Passive Display Scanning
Cycles of the TMS0972NL from a TI-1250 manufactured in August 1977 flashing the display and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0972NL actually alternates between two completely different Display Scanning Cycles.  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, November 9, 2023. No reprints without written permission.
