Additional Pictures

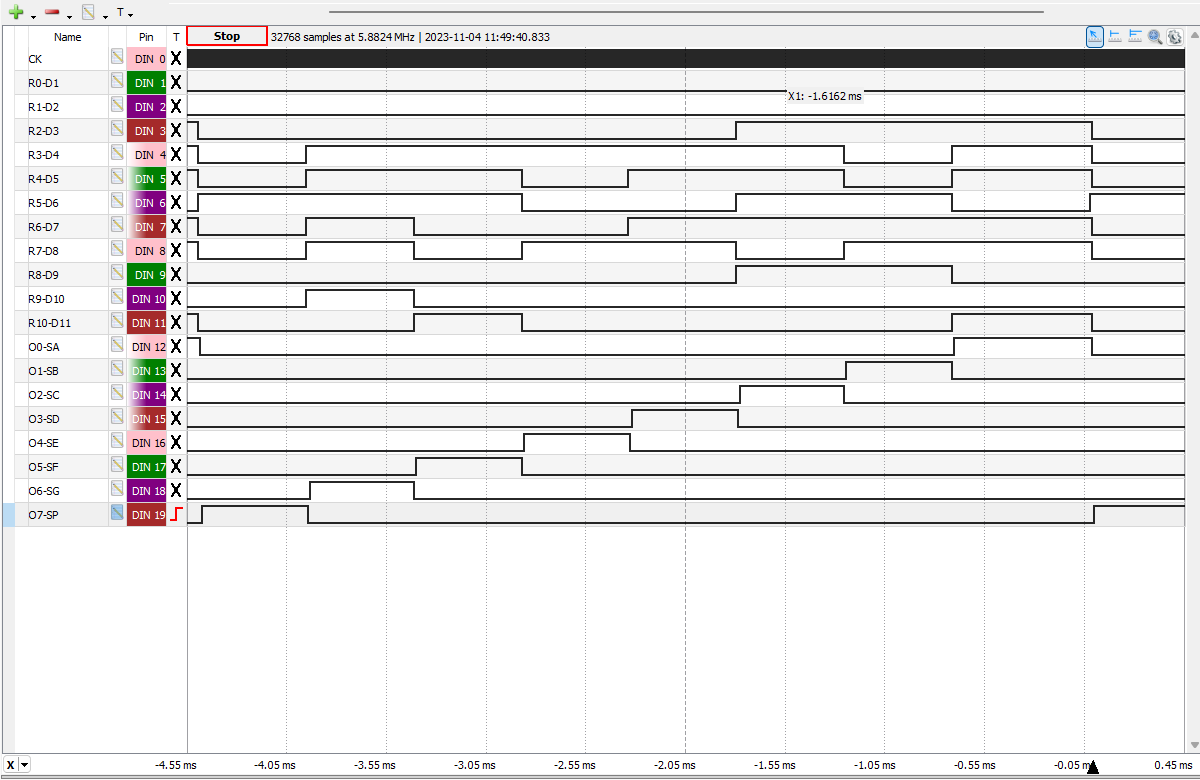

Complete Display Scanning Cycle of the TMS0972NL from a TI-1200 manufactured in October 1976 displaying "-1234.567"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0972NL Clock Frequency set to 300 kHz.

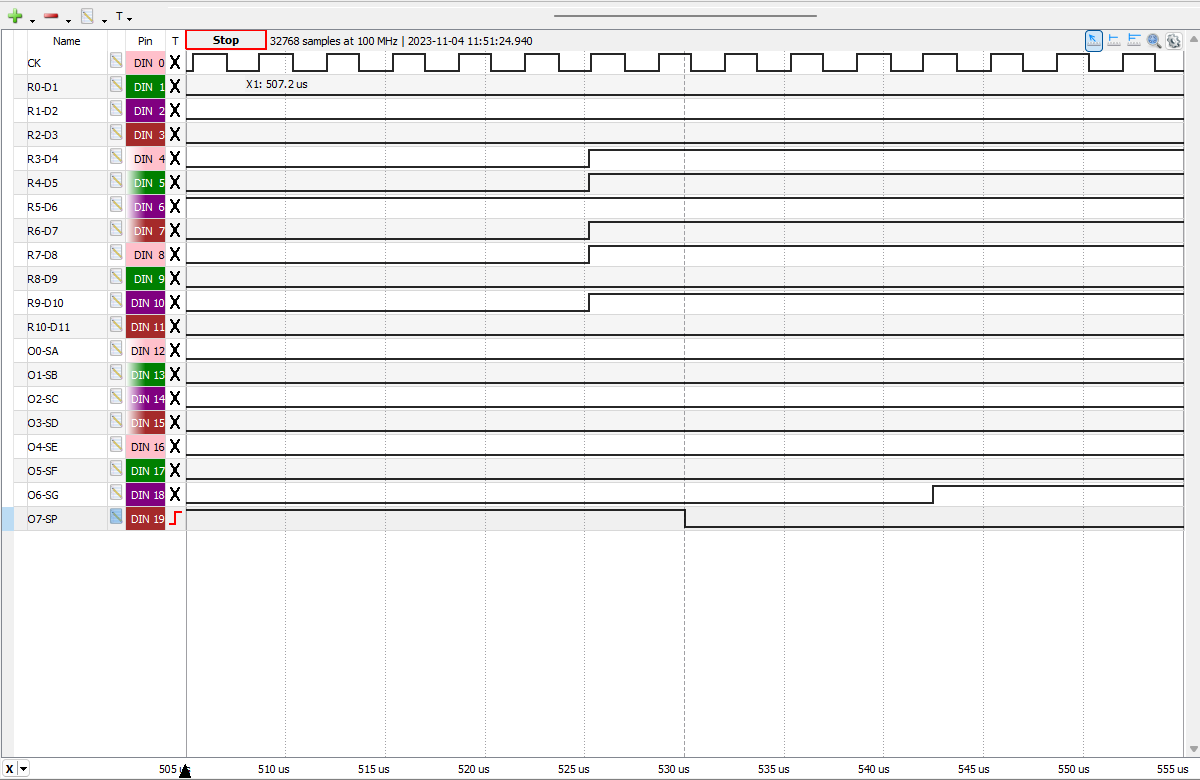

Close-up view of the transition between Segment Output O7 (DP) and Segment Output O6 (G) of the TMS0972NL showing the Leading and Trailing Segment Blanking Times.


If you have additions to the above article please email: joerg@datamath.org.
