Additional Pictures

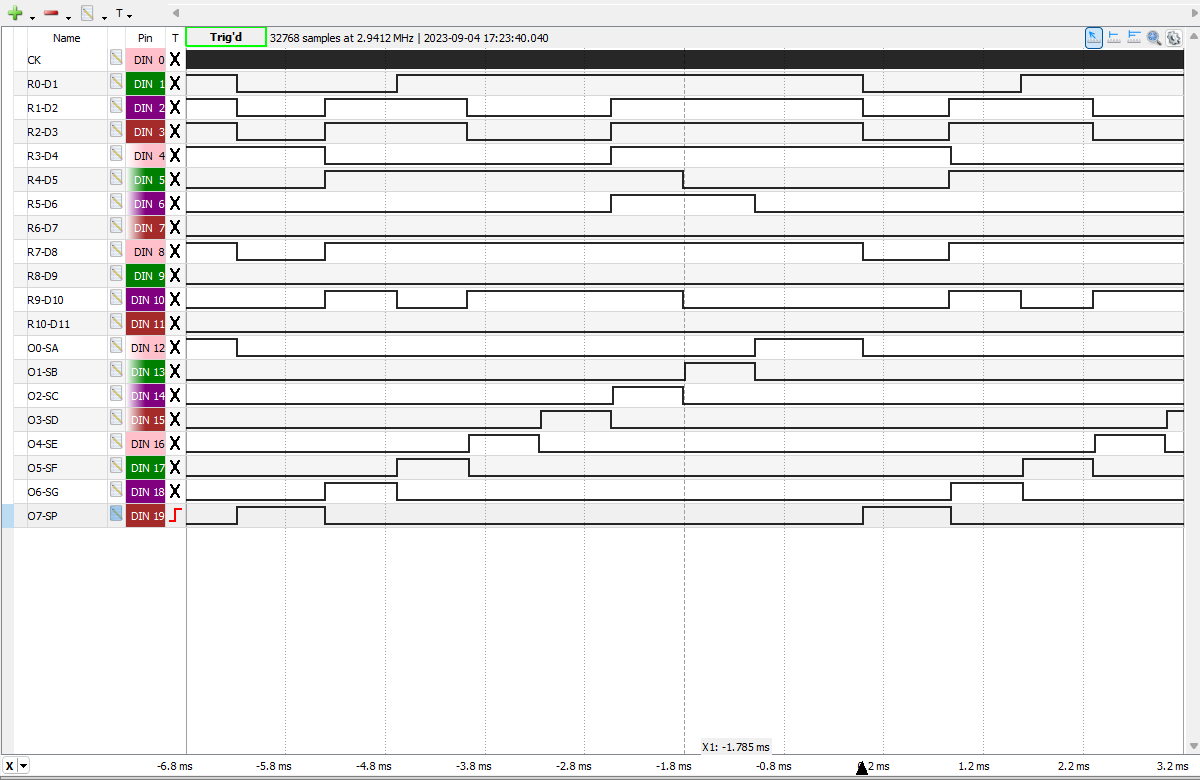

| Complete Display
Scanning Cycle of the TMS0973NL from an Electra Bearcat BC210
manufactured in August 1977 displaying "167.990" for Channel 8
and Scan Delay activated and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0973NL Clock Frequency set to 300 kHz.  |

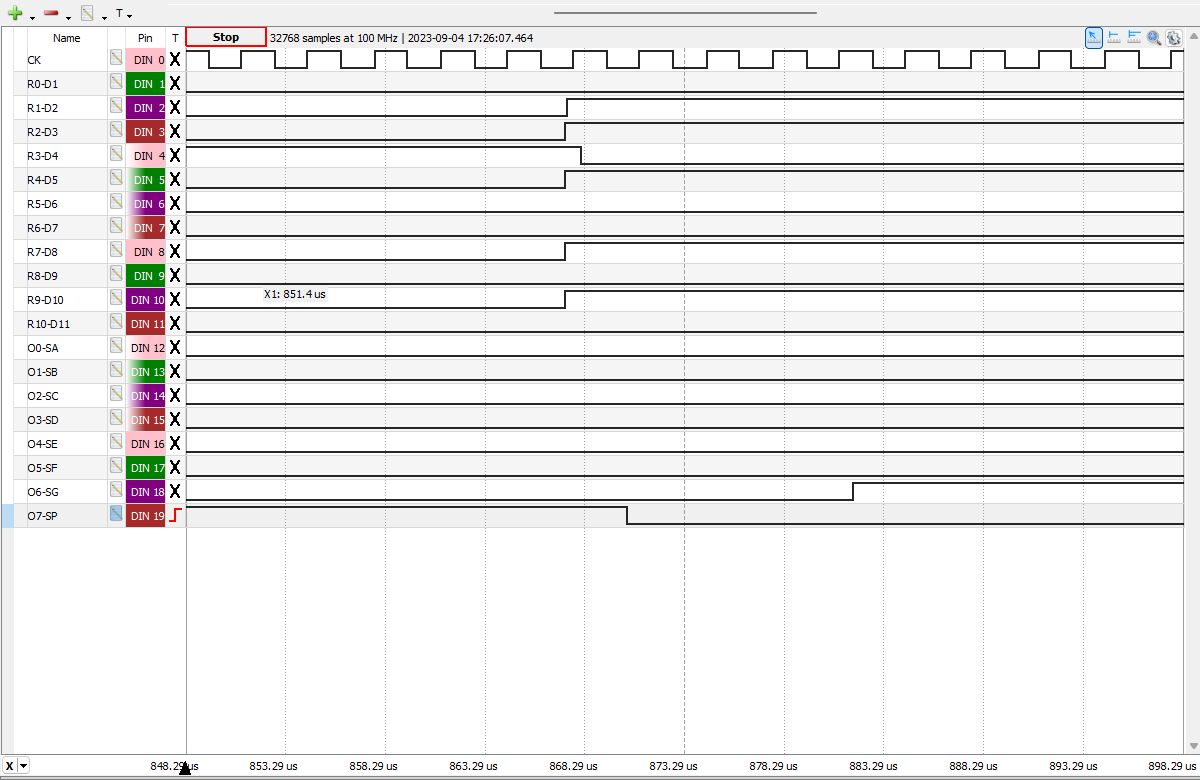

Close-up view of the
transition between Segment Output O7 (DP) and Segment Output O6 (G) of the TMS0973NL
showing the Leading and Trailing Segment Blanking
Times. |

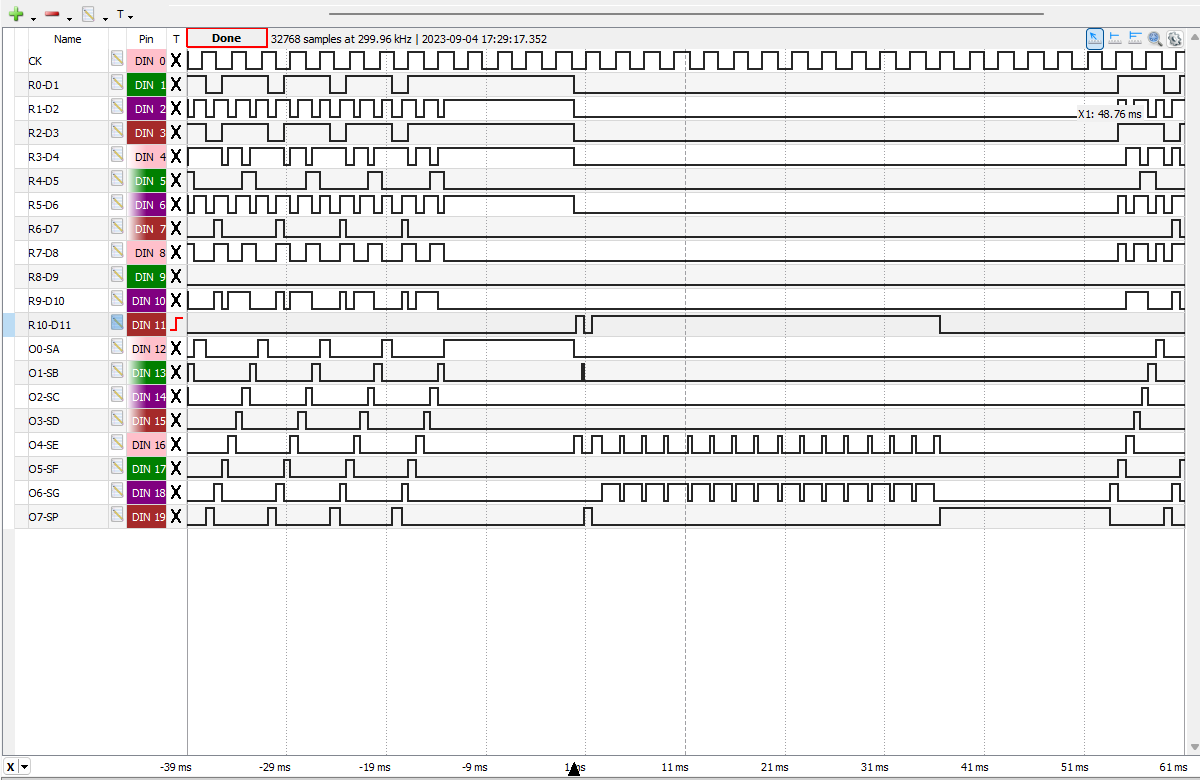

Overview of the
transition between Display Scanning and Synthesizer
Communication of the TMS0973NL showing the R10
Time. |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, October 21, 2023. No reprints without written permission.
