Additional Pictures

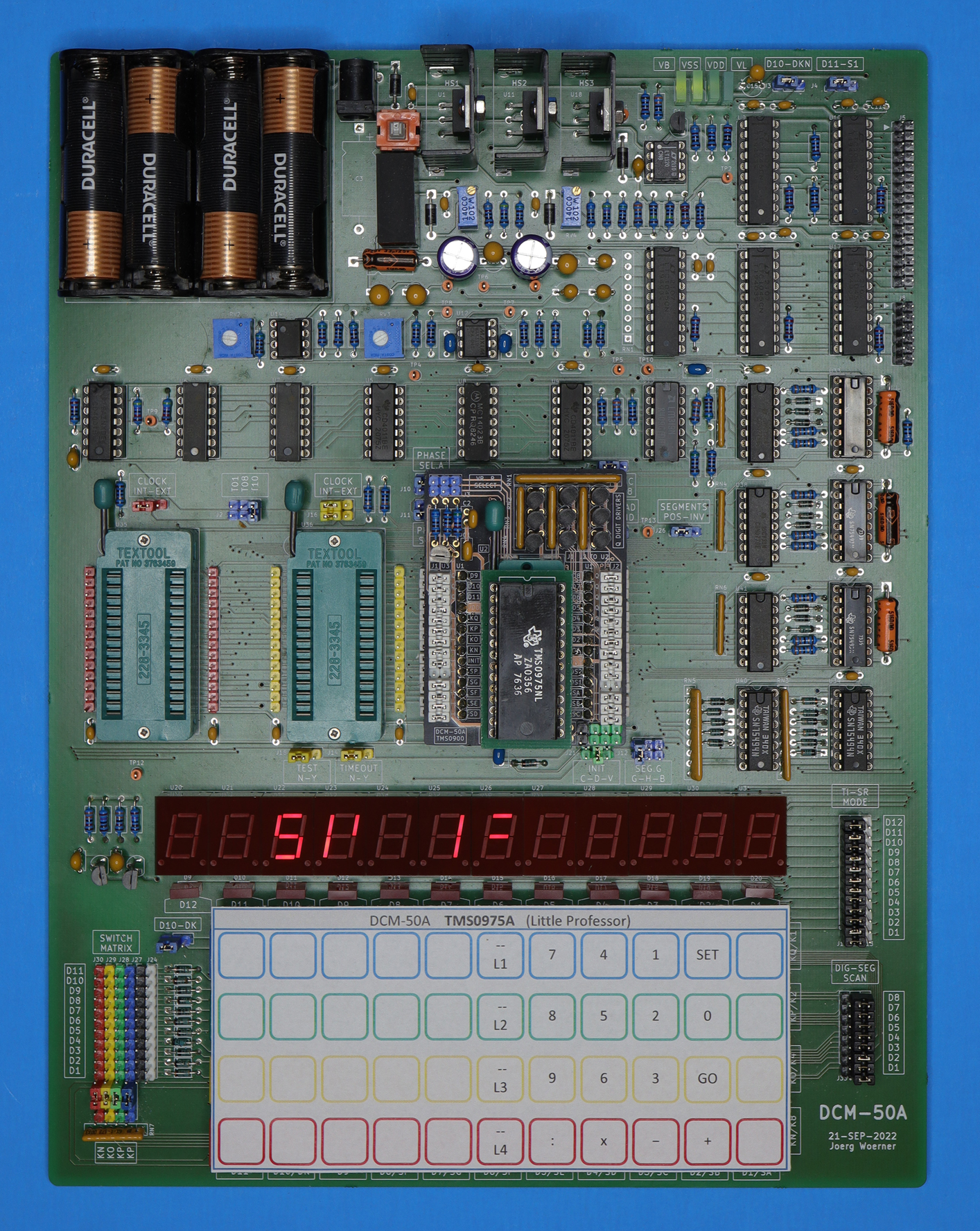

The DCM-50A Platform with the TMS0975NL/ZA0356 AP single-chip calculator circuit from a Little Professor (1976 Version A) manufactured in September 1976.

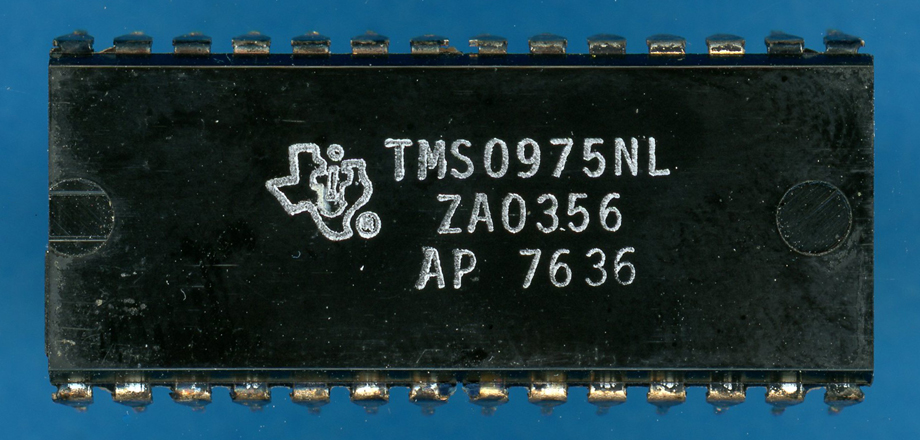

Close-up view of the TMS0975NL single-chip calculator circuit.

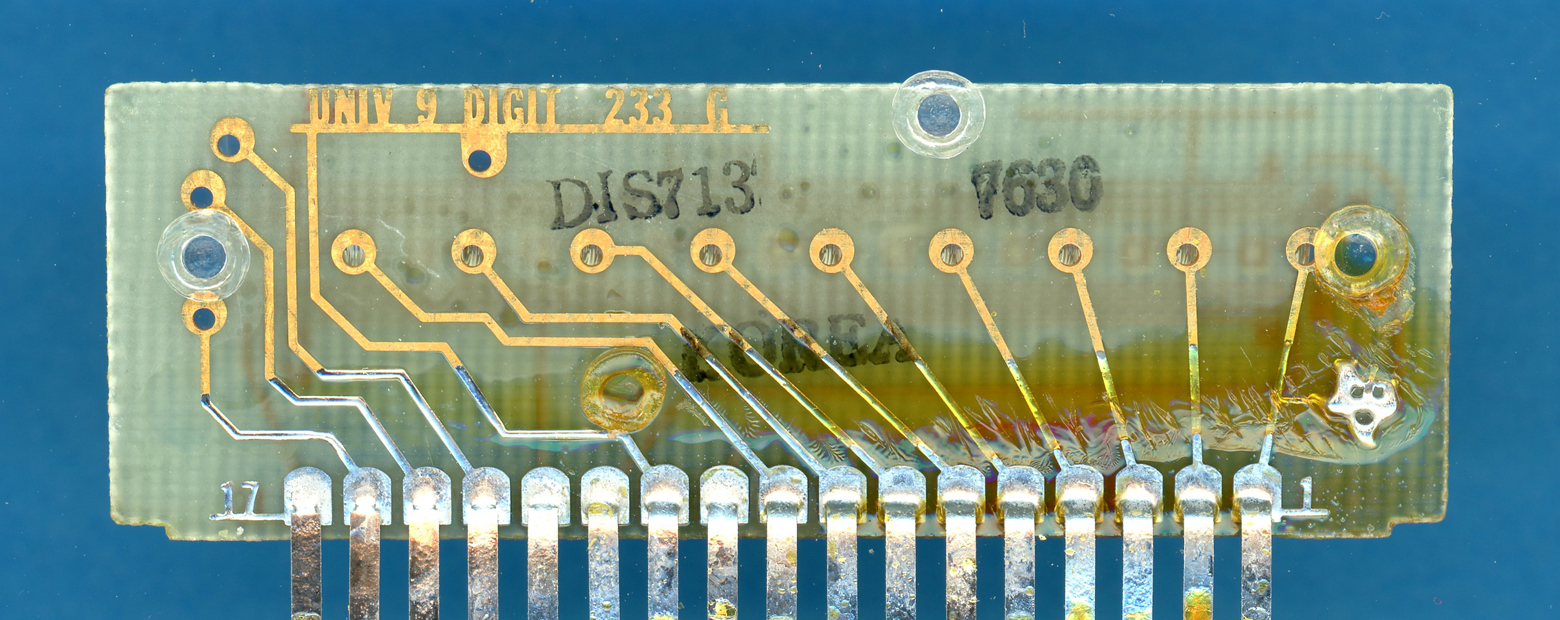

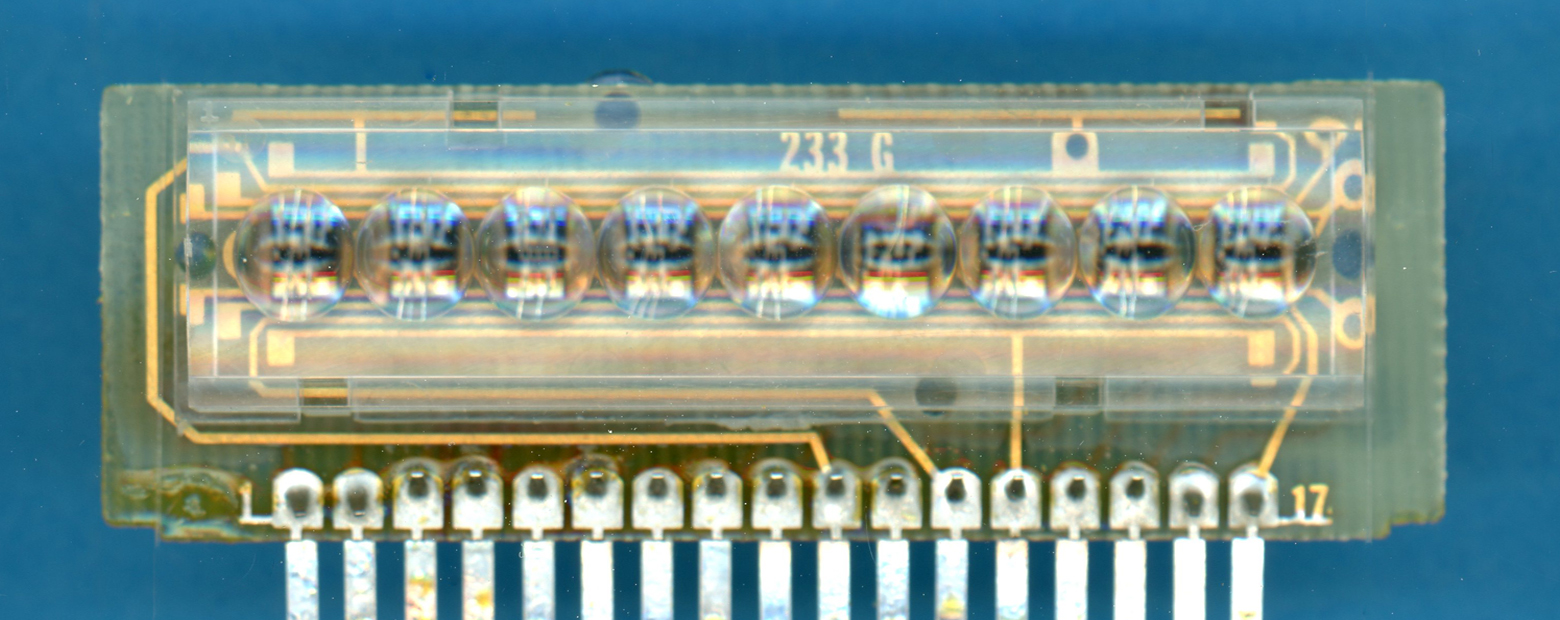

Close-up view of the DIS713 Light-Emitting-Diode (LED) display module using the DIS233G PCB.
