Additional Pictures

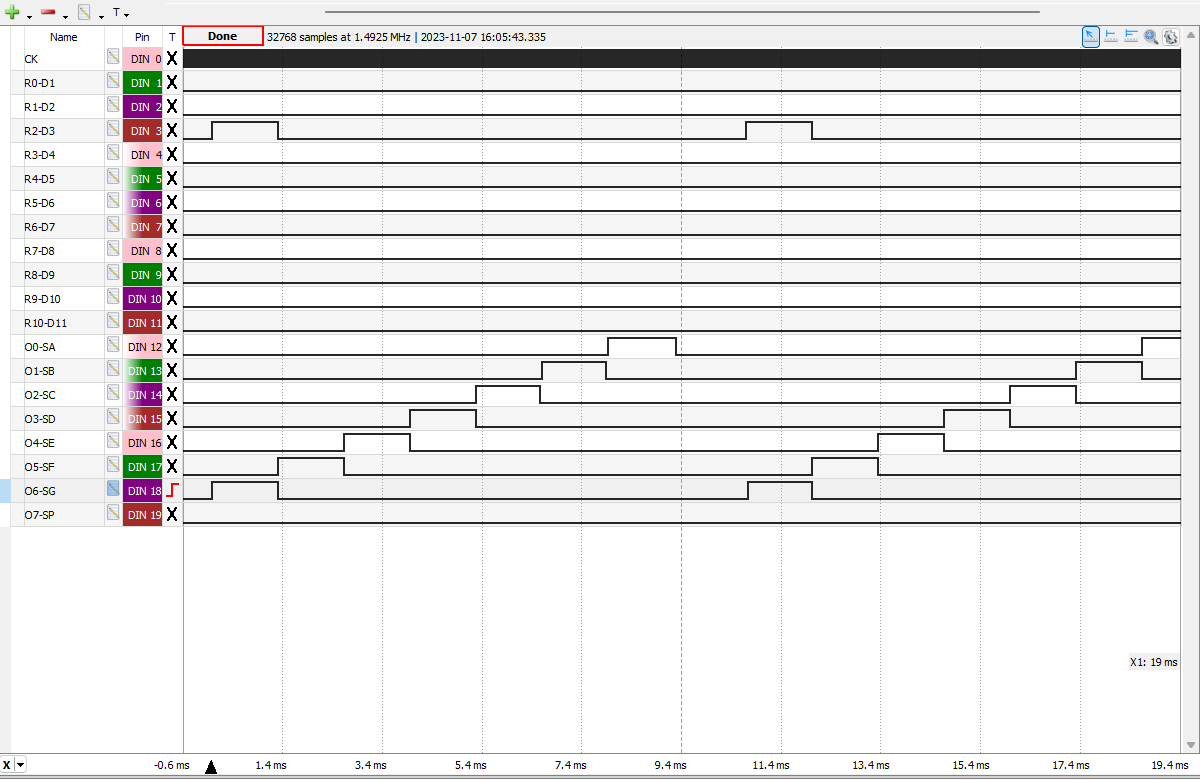

| Complete Display Scanning
Cycle of the TMS0975NL AP from a Little Professor manufactured in
September 1976
flashing the display and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0975NL actually pauses between Display Scanning Cycles.  |

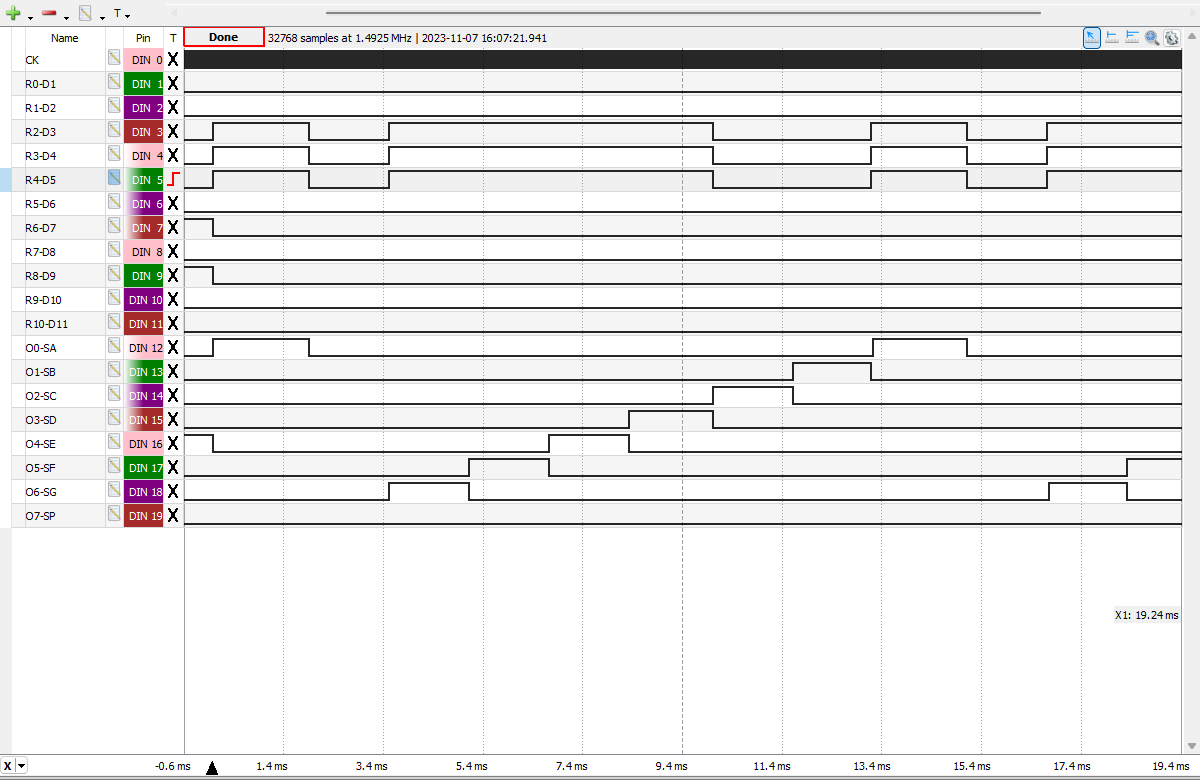

| Complete Display
Scanning Cycle of the TMS0975NL AP from a Little Professor
manufactured in September 1976 displaying "EEE" and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0975NL actually outputs "EEE".  |

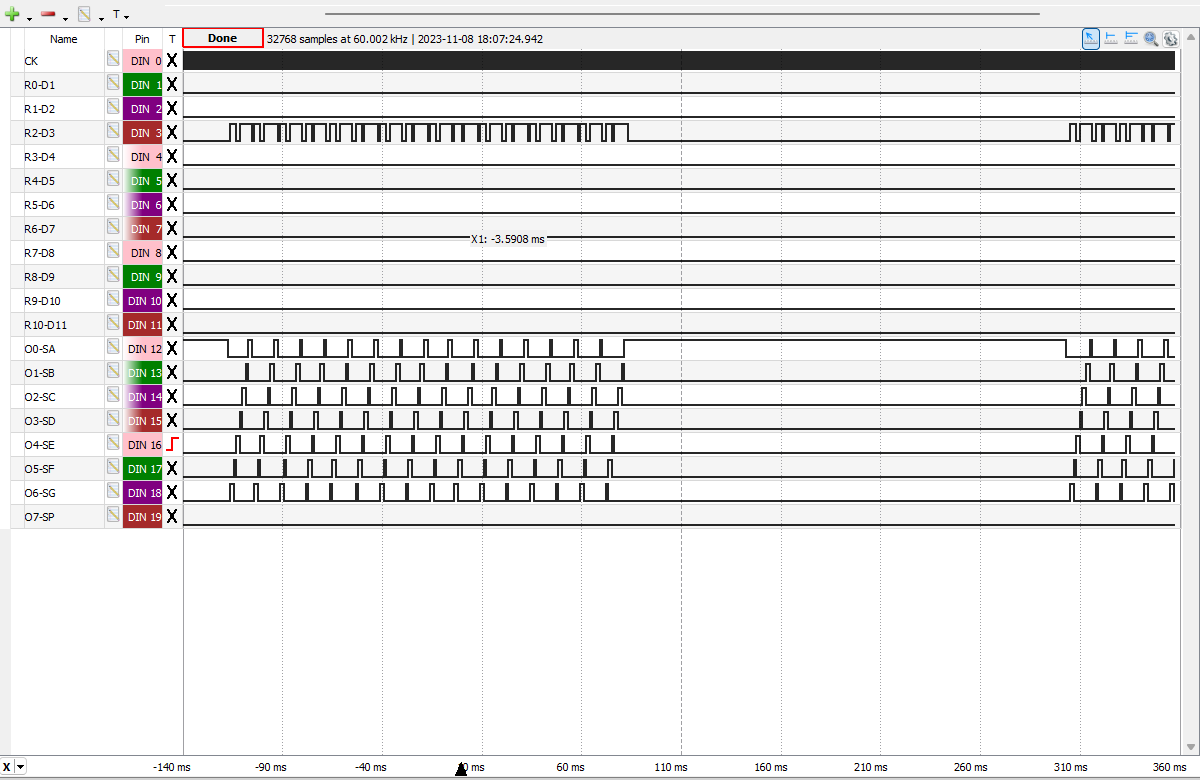

| Multiple Display
Scanning Cycles of the TMS0975NL AP from a Little Professor manufactured
in September 1976 during the transition into
displaying "EEE" and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0975NL keeps the pace of its Display Scanning Cycle.  |

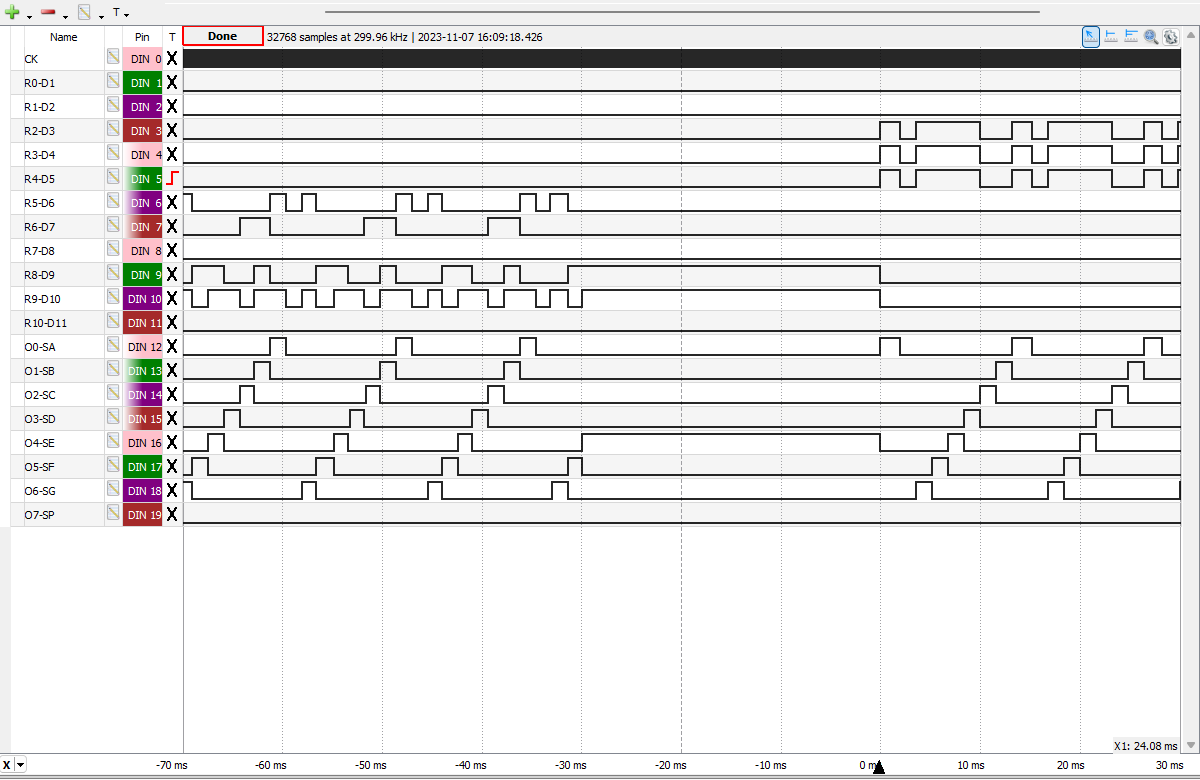

| Complete Display
Scanning Cycle of the TMS0975NL AP from a Little Professor
manufactured in September 1976 when pushing a number key
for a wrong answer and captured with
the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0975NL "freezes" the last Display Scanning Cycle.  |

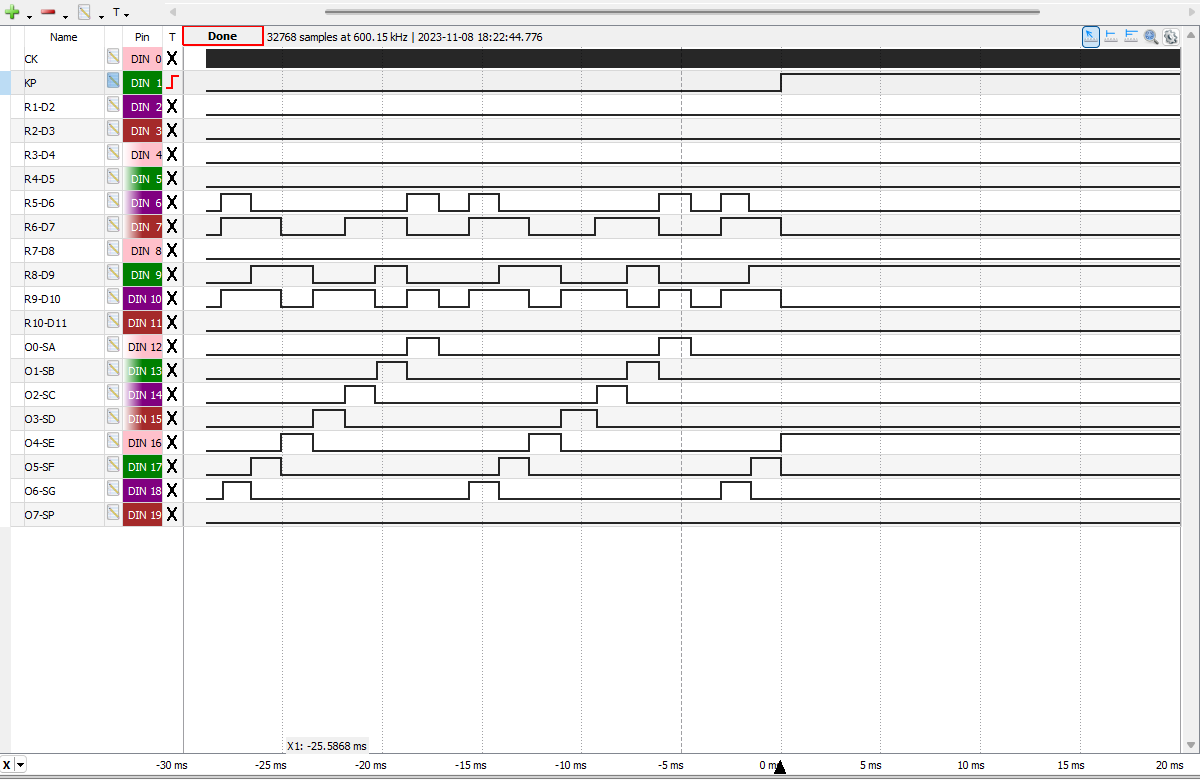

| Complete Display Scanning
Cycle of the TMS0975NL AP from a Little Professor manufactured in
September 1976
displaying "IDLE" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0975NL actually outputs "-".  |
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, November 11, 2023. No reprints without written permission.
