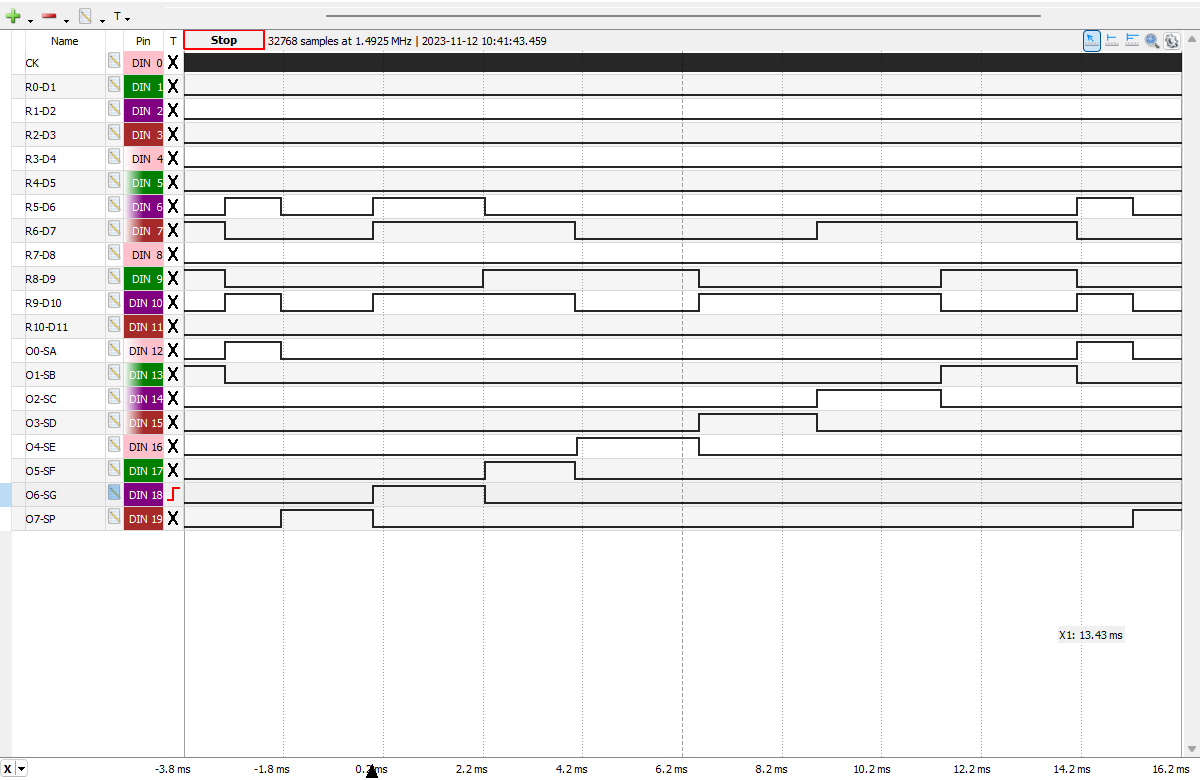

Scanning Cycle of the TMS0975NL CSP from a Little Professor
manufactured in May 1978 displaying " 5+ 4=" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0975NL CSP Clock Frequency set to 150 kHz.  |

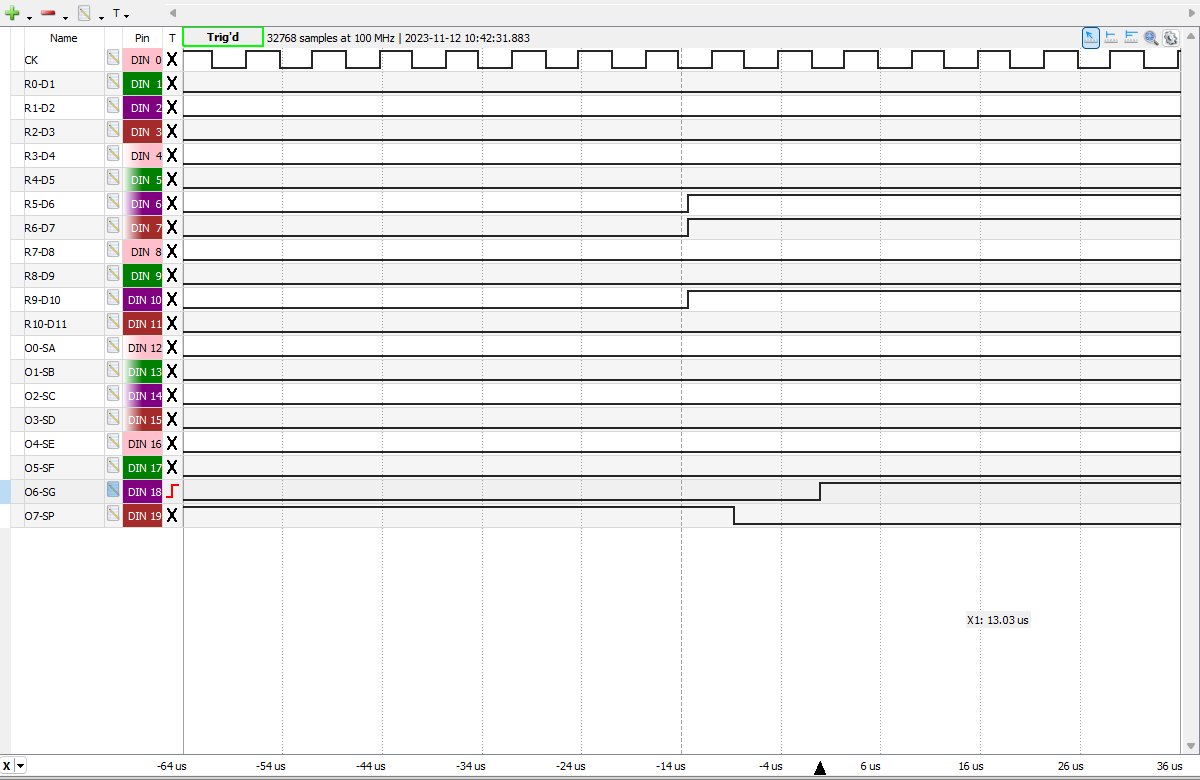

Close-up view of the
transition between Segment Output O6 (G) and Segment Output O5 (F) of the
TMS0975NL CSP
showing the Leading and Trailing Segment Blanking
Times. |
