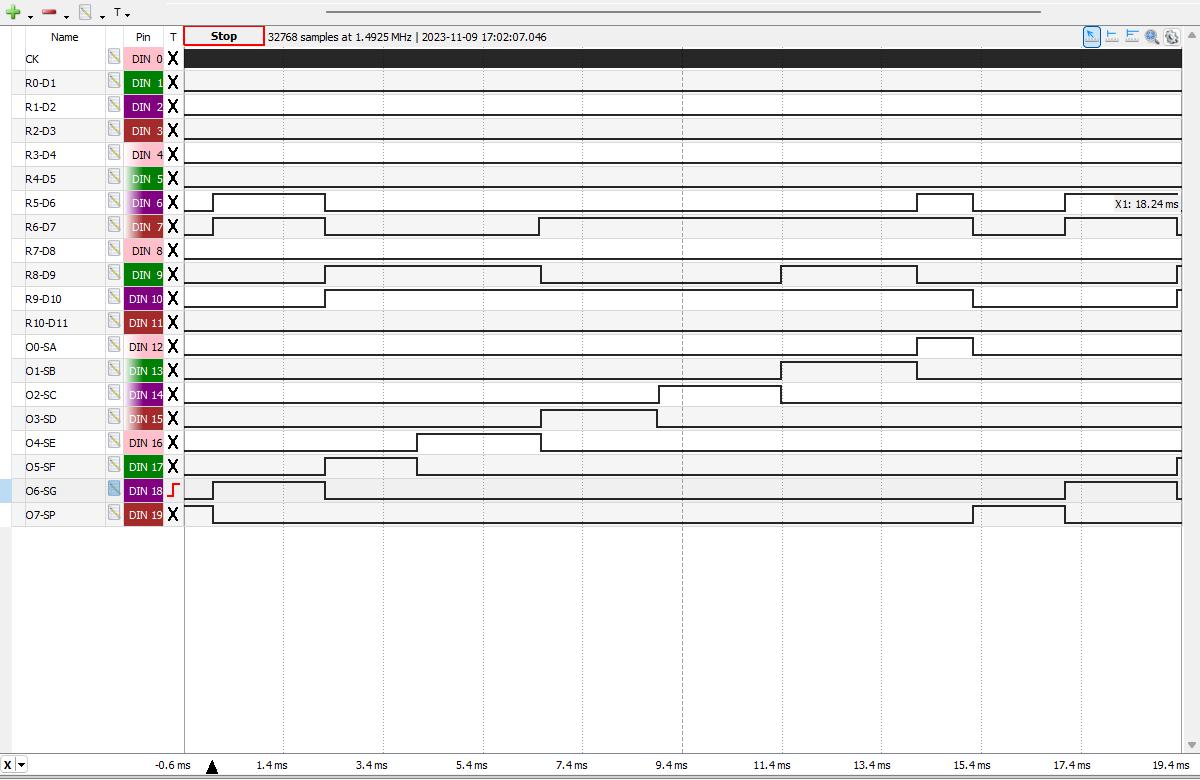

Complete Display Scanning Cycle of the TMS0975NL GCS from a Little Professor manufactured in September 1978 displaying " 0+ 3="
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS0975NL GCS Clock Frequency set to 150 kHz.

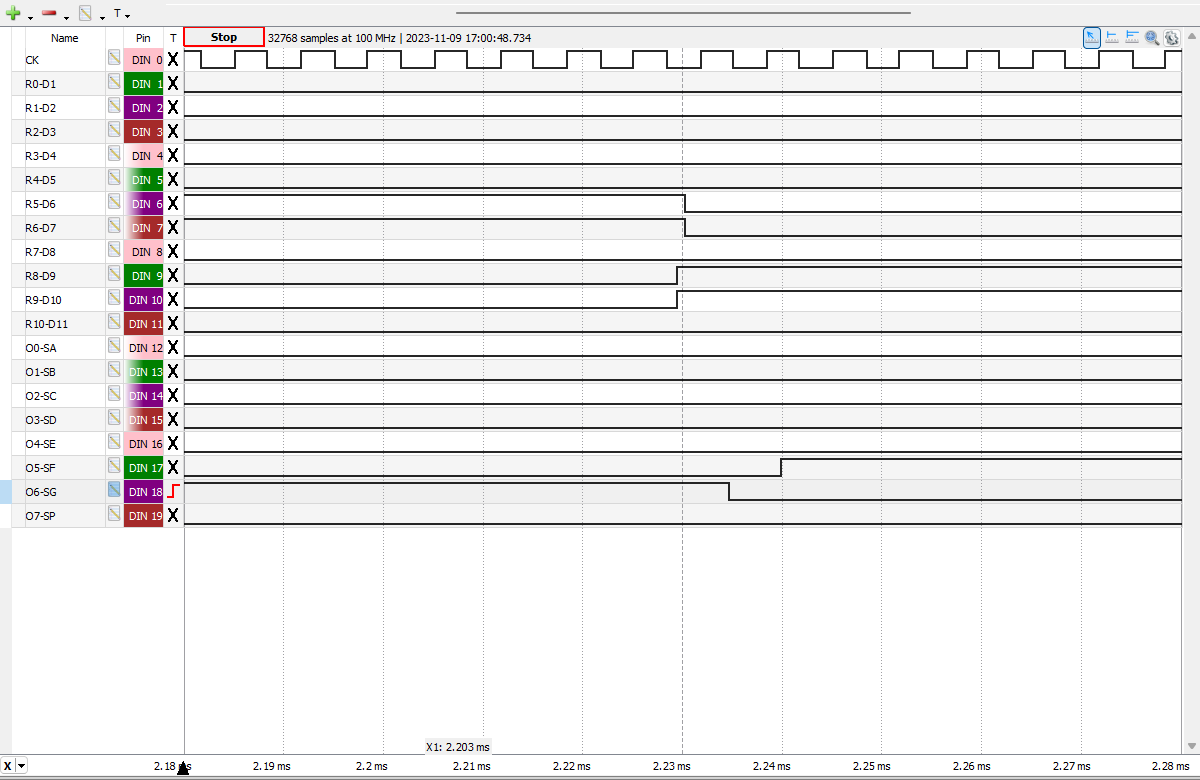

Close-up view of the transition between Segment Output O6 (G) and Segment Output O5 (F) of the TMS0975NL GCS showing the Leading and Trailing Segment Blanking Times.
