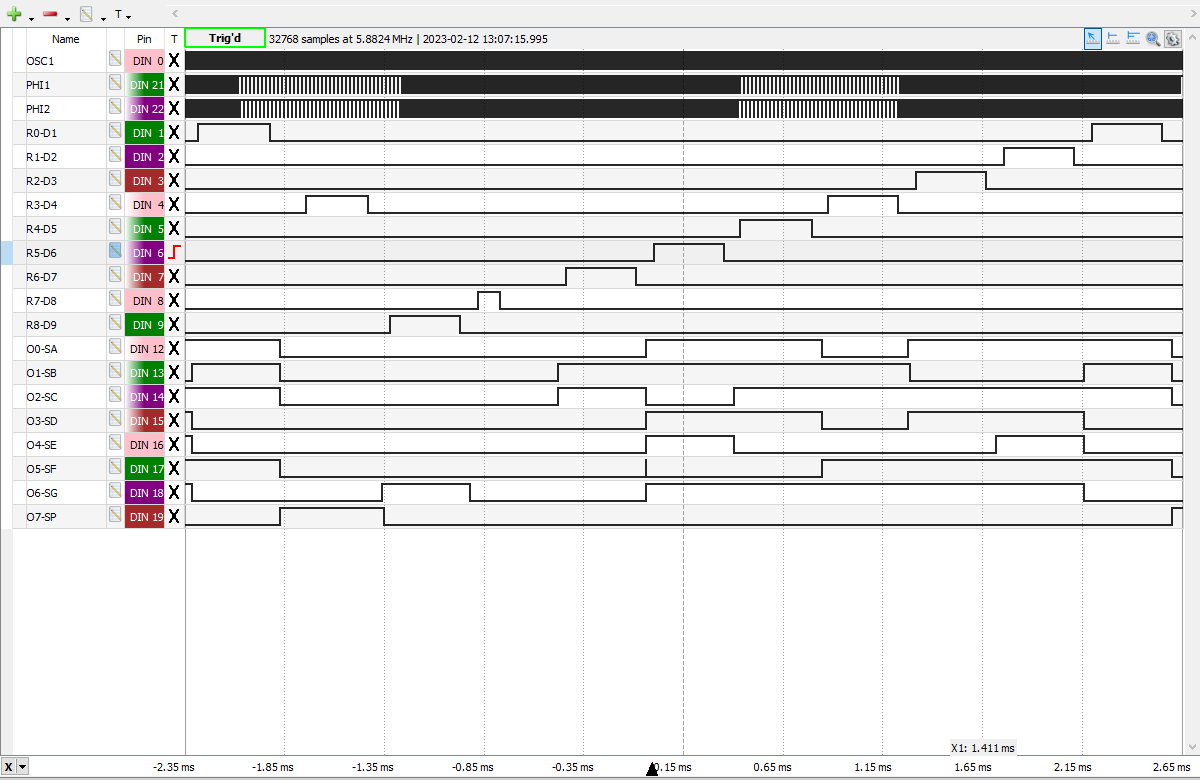

Scanning Cycle of the TMS1042NL from a Sharp EL-8117K
manufactured in June 1976 displaying "- 1234.567" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS1042NL Clock Frequency set to 300 kHz.  |

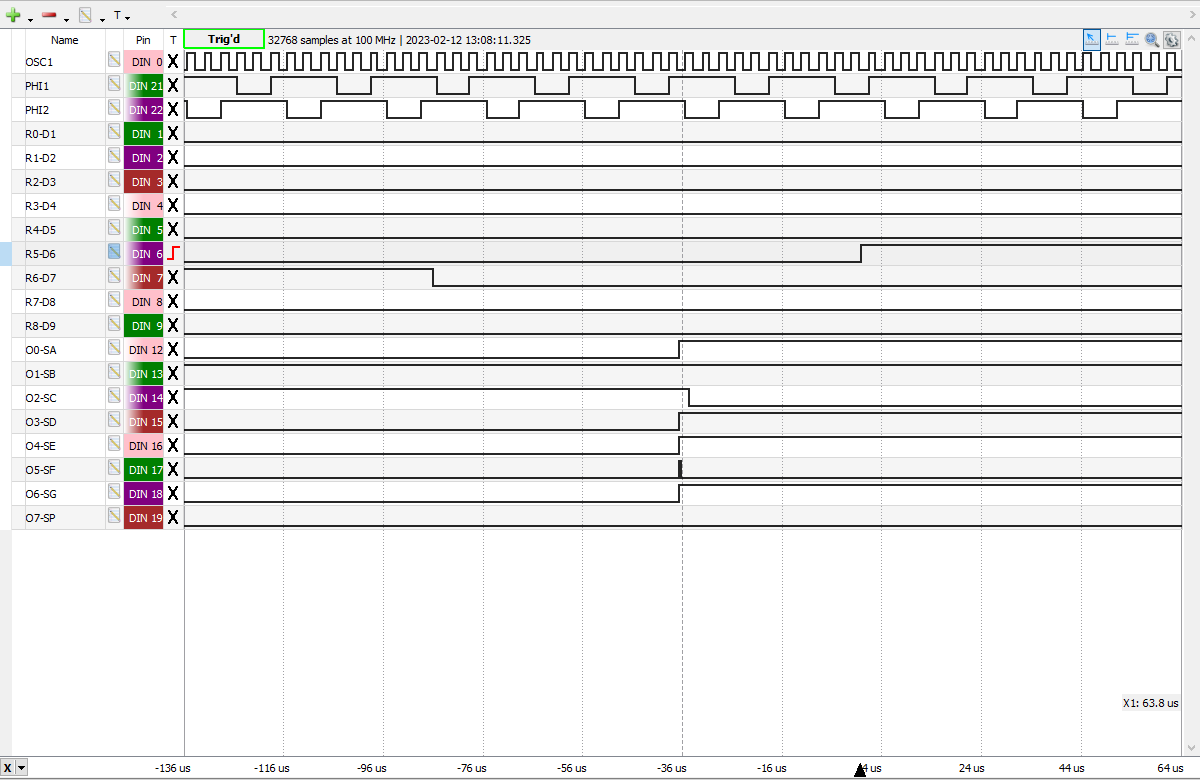

| Close-up view of the
transition between Digit D7 displaying "1" and Digit D6 displaying "2" of
the TMS1042NL
showing the Leading and Trailing Digit Blanking
Times.
|
