Additional Pictures

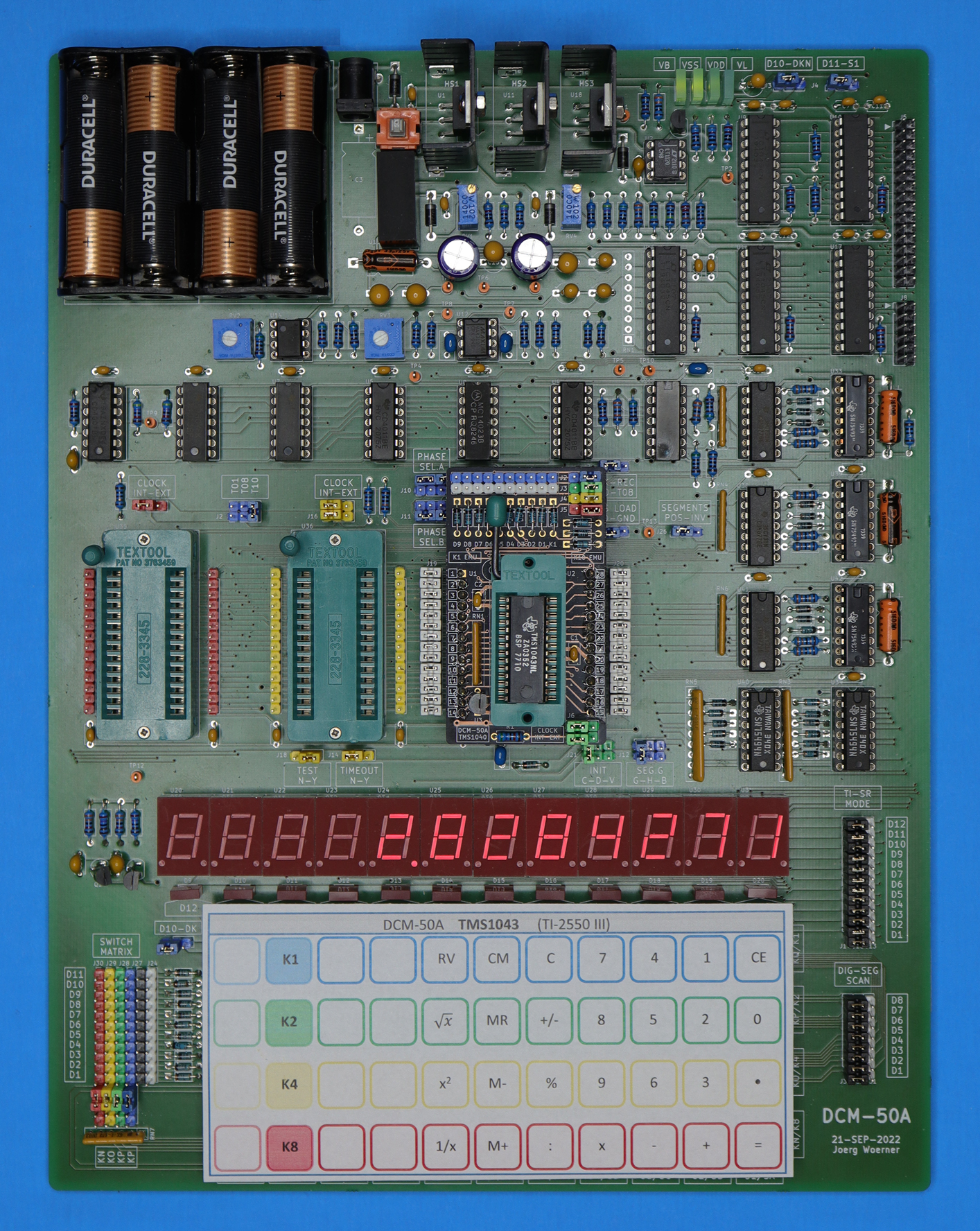

The DCM-50A Platform with the TMS1043BNL single-chip calculator circuit from a TI-2550 III manufactured in October 1977.

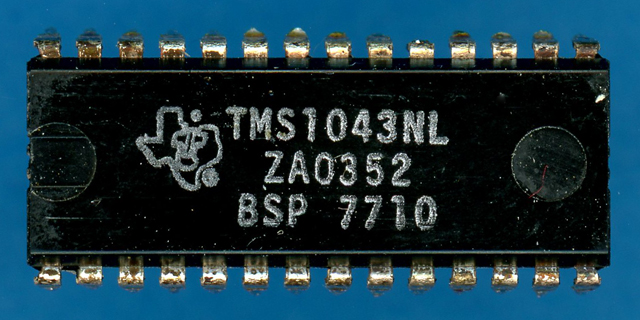

Close-up view of the TMS1043BNL ZA0352 single-chip calculator circuit.

Close-up view of the NEC LD8118L Vacuum Fluorescent Display (VFD).
