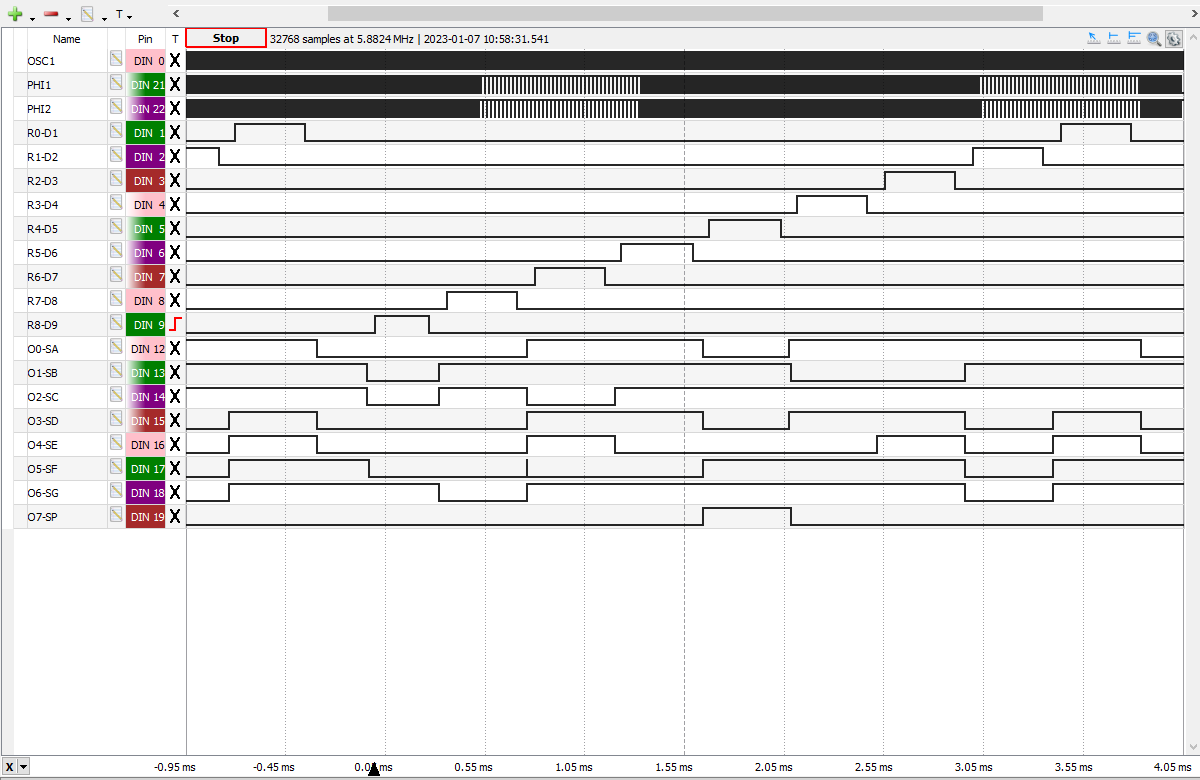

Complete Display Scanning Cycle of the TMS1043BNL from a TI-2550 III manufactured in October 1977 displaying "-1234.5678"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS1043BNL Clock Frequency set to 300 kHz.

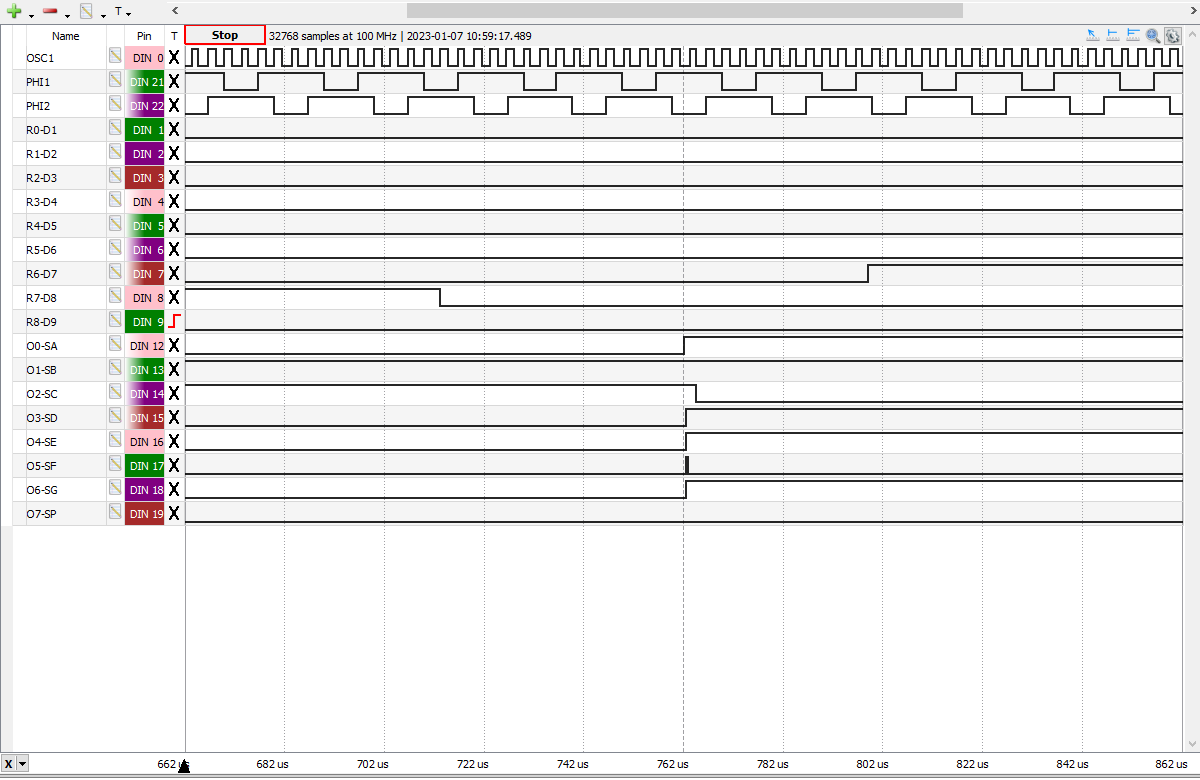

Close-up view of the transition between Digit D8 displaying "1" and Digit D7 displaying "2" of the TMS1043BNL showing the Leading and Trailing Digit Blanking Times.
