Additional Pictures

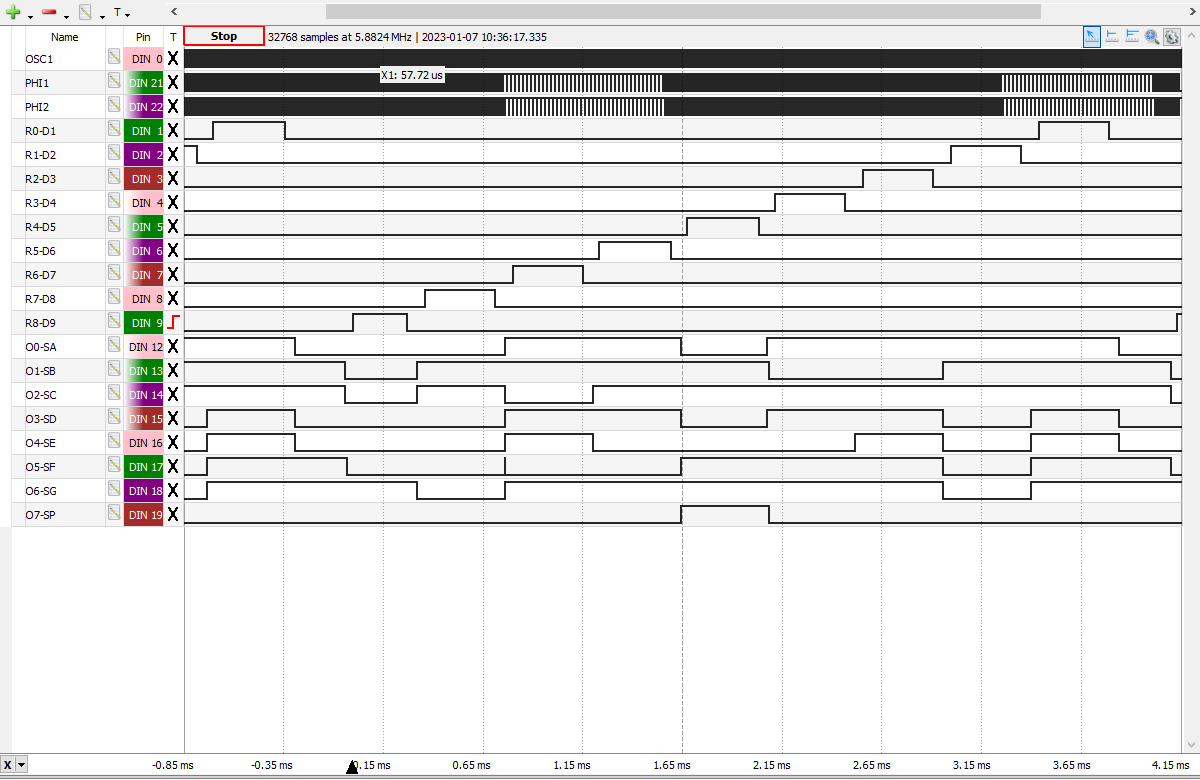

Complete Display Scanning Cycle of the TMS1043NL from a TI-2550 III manufactured in September 1976 displaying "-1234.5678"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS1043NL Clock Frequency set to 300 kHz.

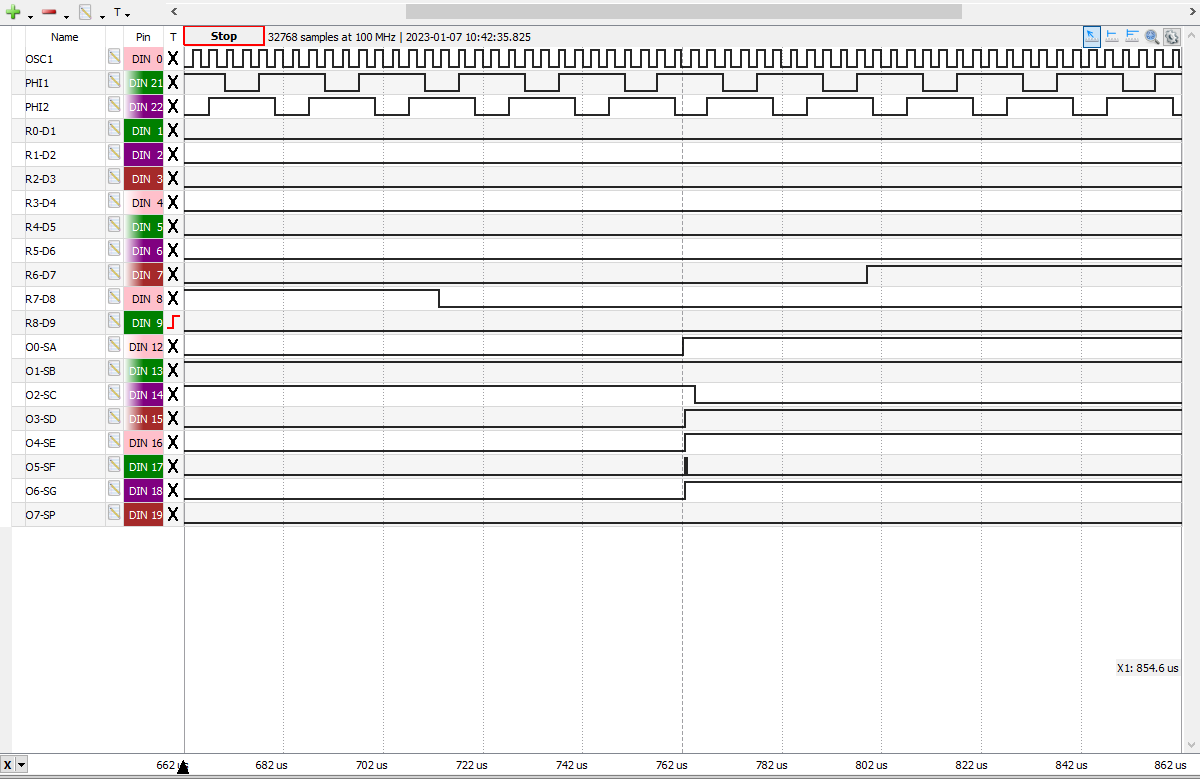

Close-up view of the transition between Digit D8 displaying "1" and Digit D7 displaying "2" of the TMS1043NL showing the Leading and Trailing Digit Blanking Times.


If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, January 7, 2023. No reprints without written permission.
