Additional Pictures

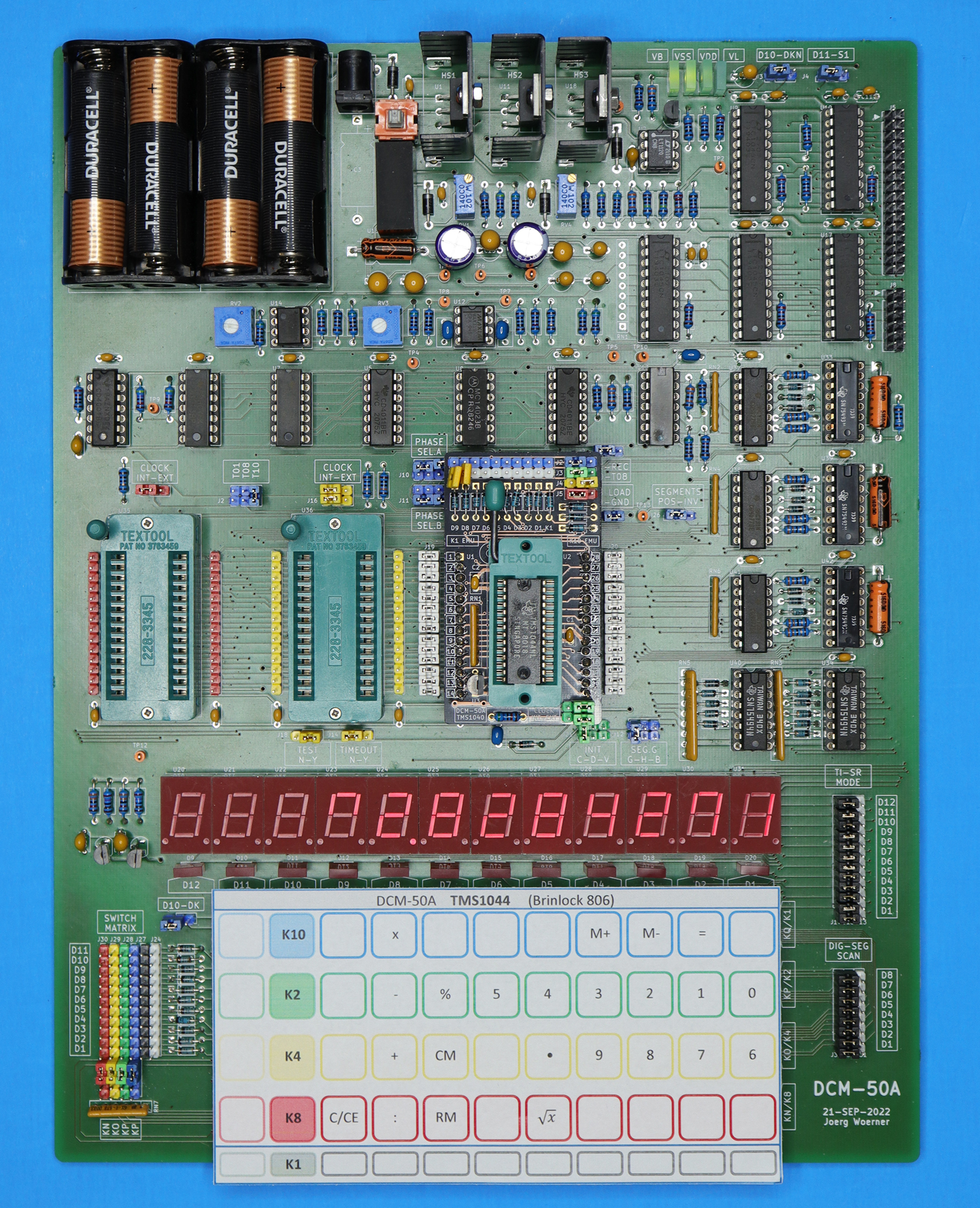

The DCM-50A Platform with the TMS1044NL single-chip calculator circuit from a Brinlock Model 806 manufactured in June 1980.

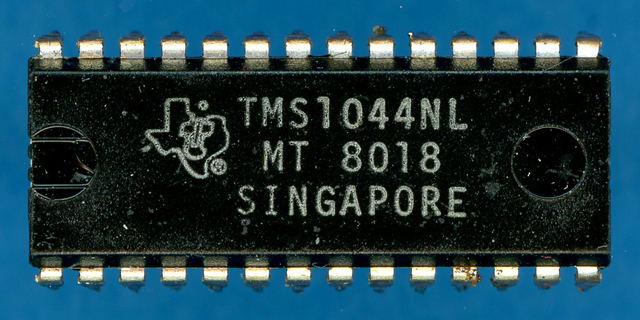

Close-up view of the TMS1044NL single-chip calculator circuit.

Close-up view of the Futaba 9-ST-11 Vacuum Fluorescent Display (VFD).
