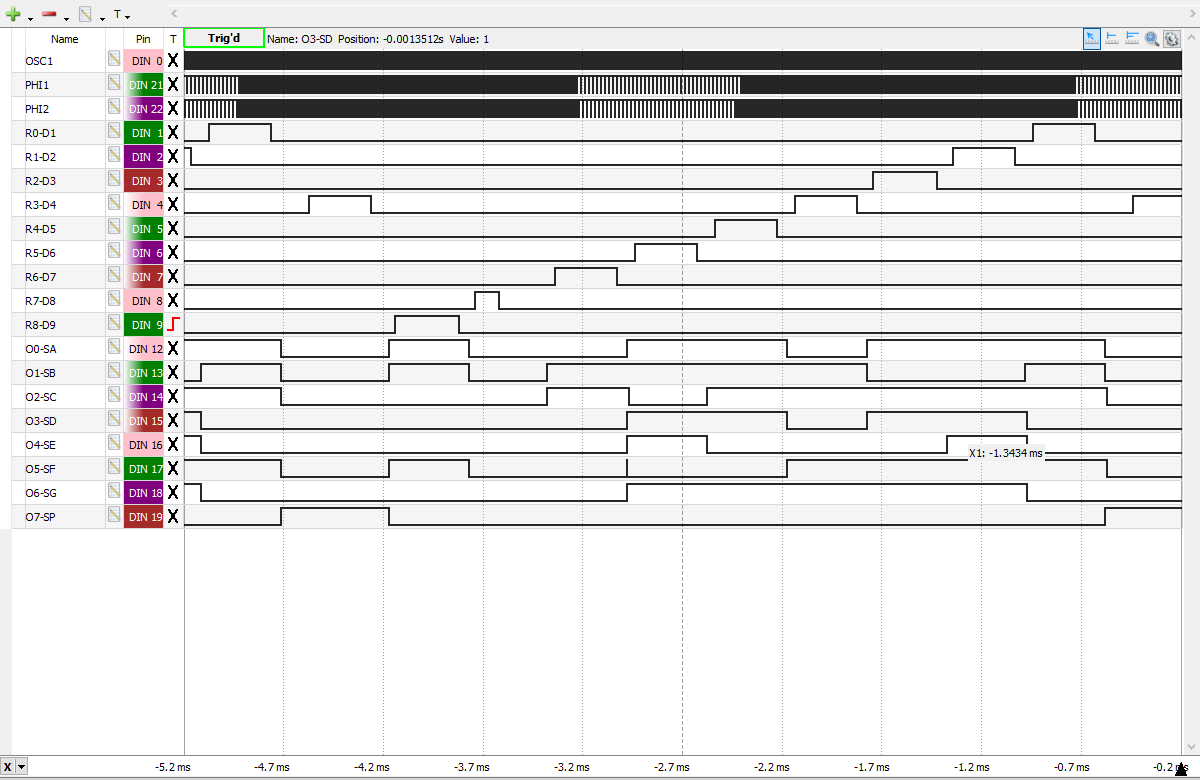

Complete Display Scanning Cycle of the TMS1044NL from a Brinlock Model 806 manufactured in June 1980 displaying "M 1234.567"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS1044NL Clock Frequency set to 300 kHz.

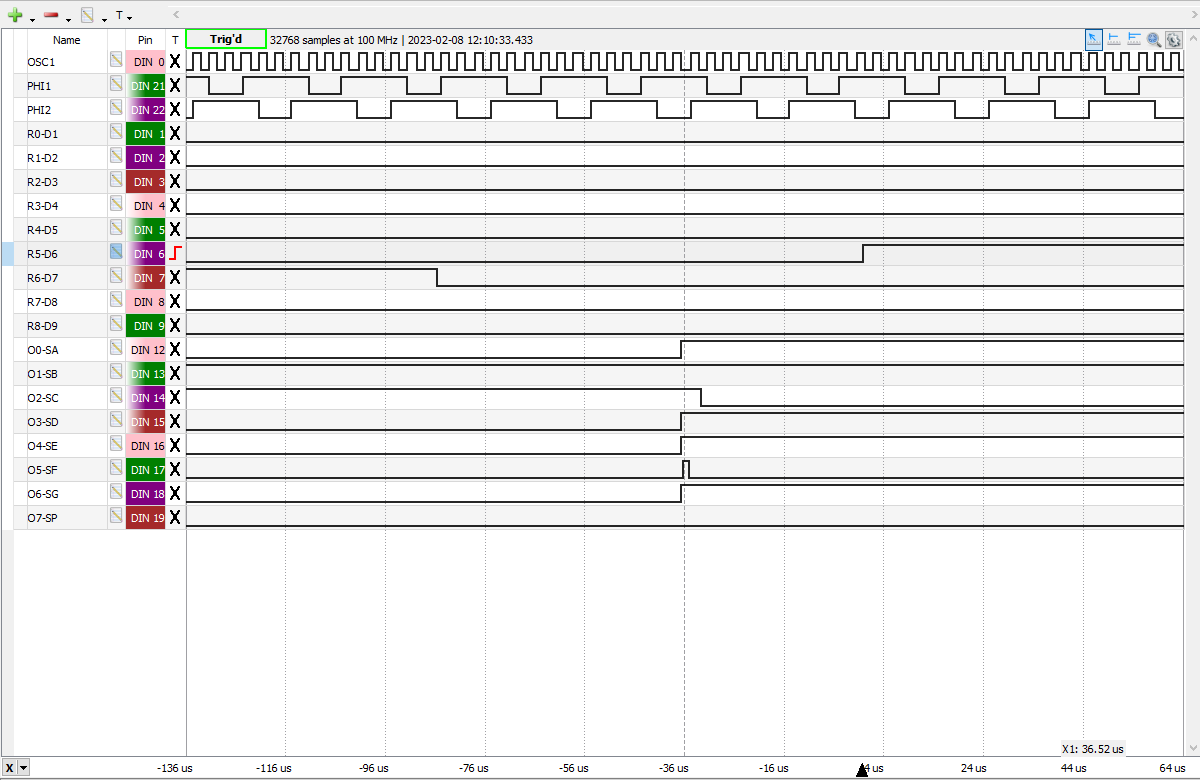

Close-up view of the transition between Digit D7 displaying "1" and Digit D6 displaying "2" of the TMS1044NL showing the Leading and Trailing Digit Blanking Times.
