Additional Pictures

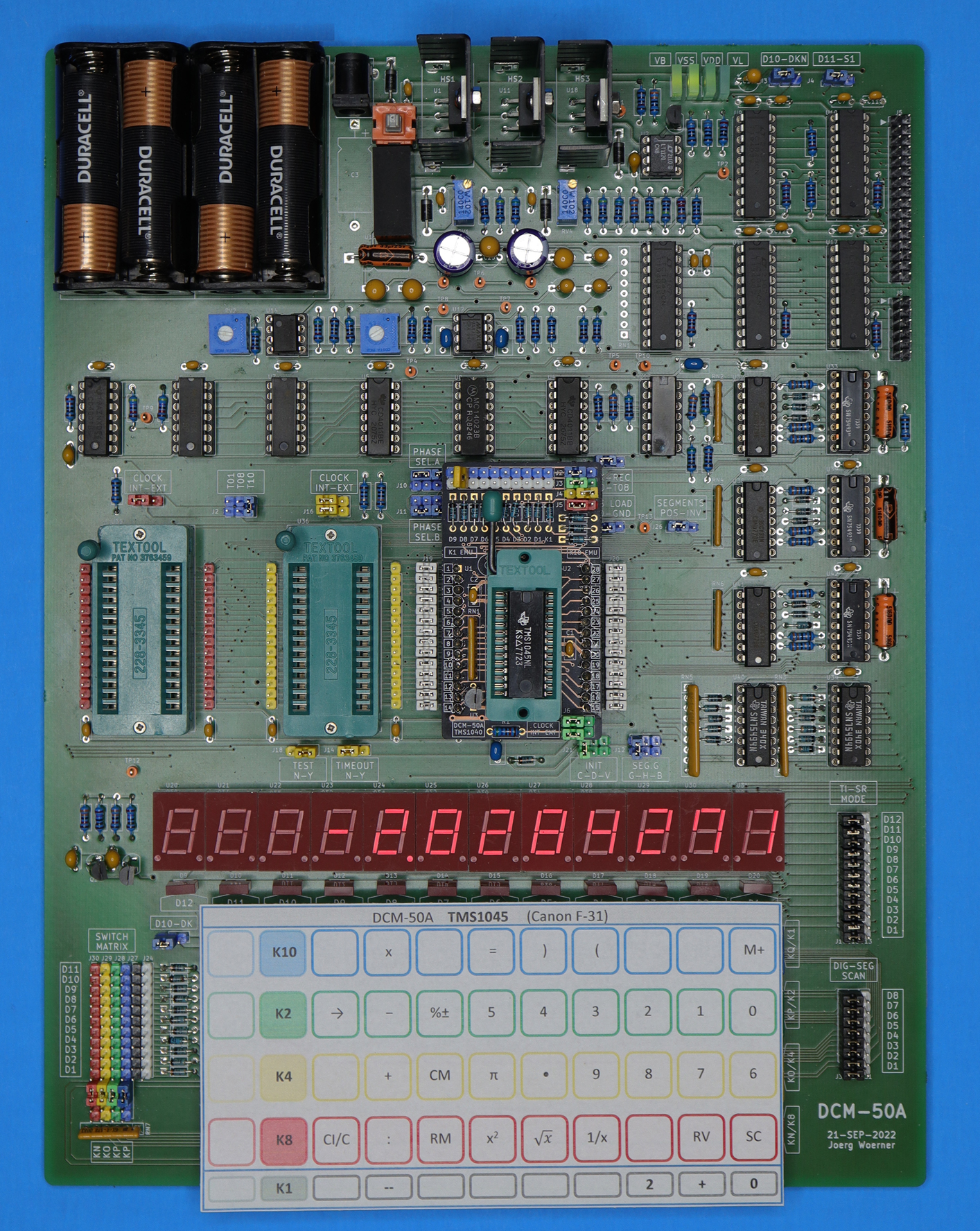

The DCM-50A Platform with the TMS1045NL single-chip calculator circuit from a Canon F-31 manufactured in June 1977.

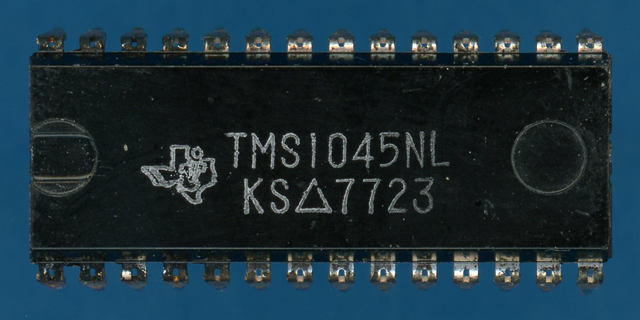

Close-up view of the TMS1045NL single-chip calculator circuit.

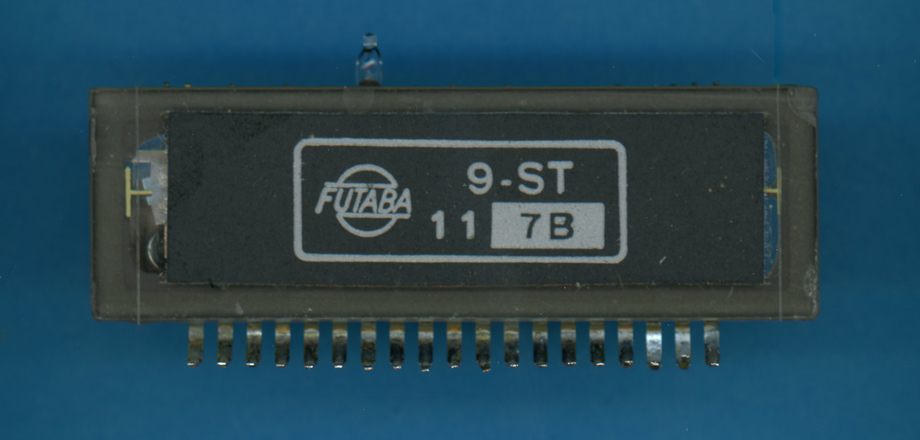

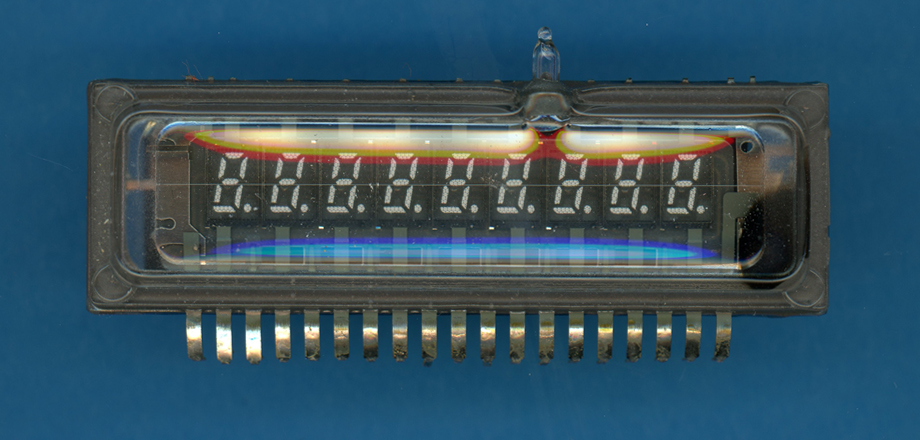

Close-up view of the Futaba 9-ST-11 Vacuum Fluorescent Display (VFD).
