Additional Pictures

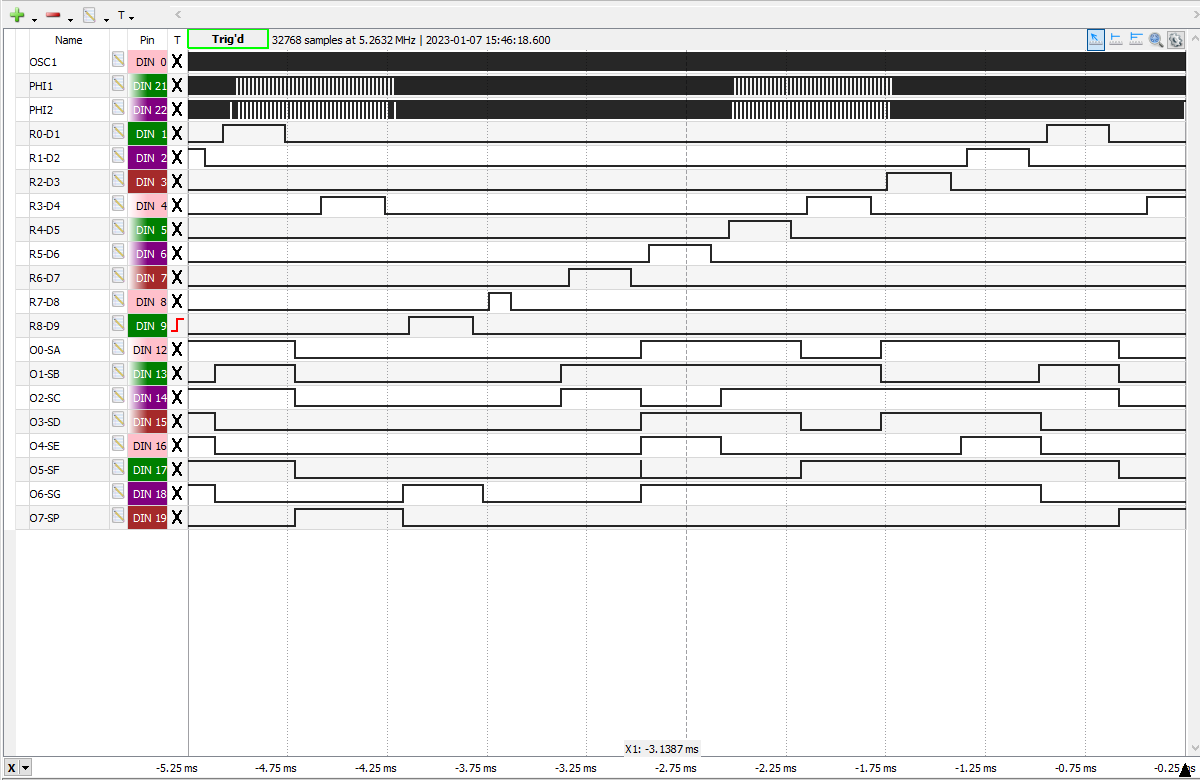

Complete Display Scanning Cycle of the TMS1045NL from a Canon F-31 manufactured in June 1977 displaying "- 1234.567"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS1045NL Clock Frequency set to 300 kHz.

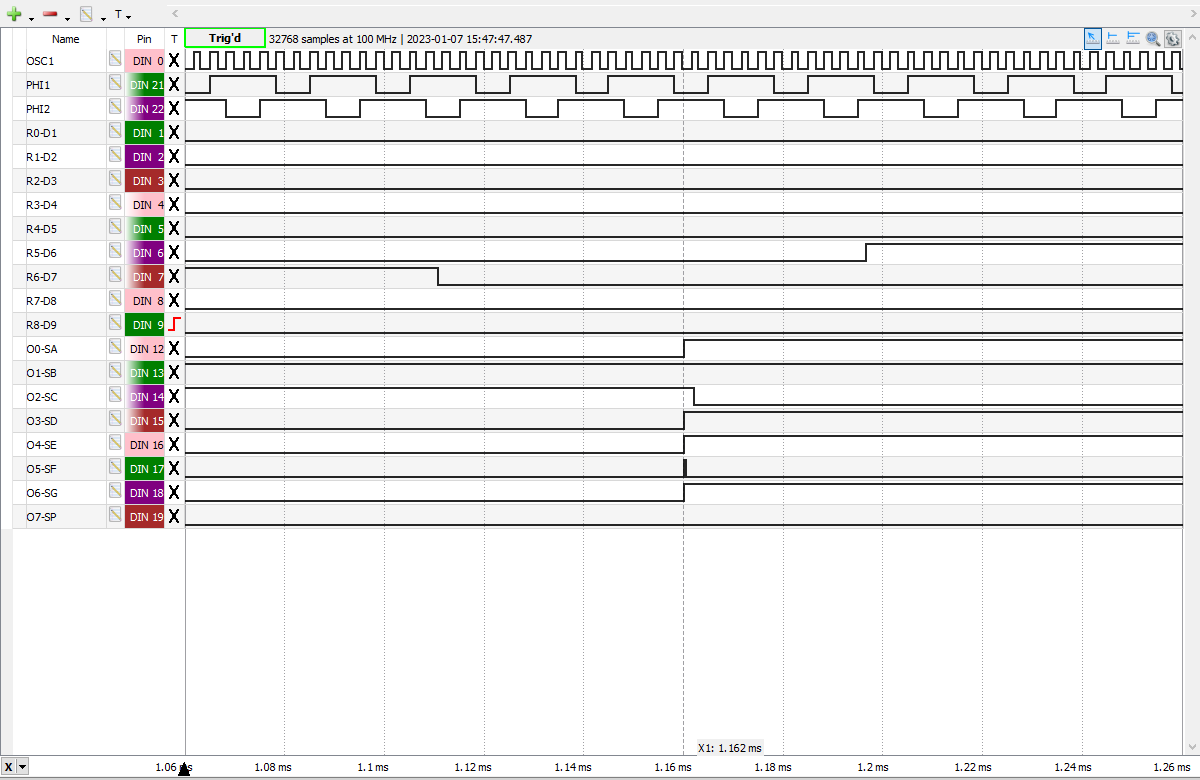

Close-up view of the transition between Digit D7 displaying "1" and Digit D6 displaying "2" of the TMS1045NL showing the Leading and Trailing Digit Blanking Times.


If you have additions to the above article please email: joerg@datamath.org.

© Joerg Woerner, January 7, 2023. No reprints without written permission.
