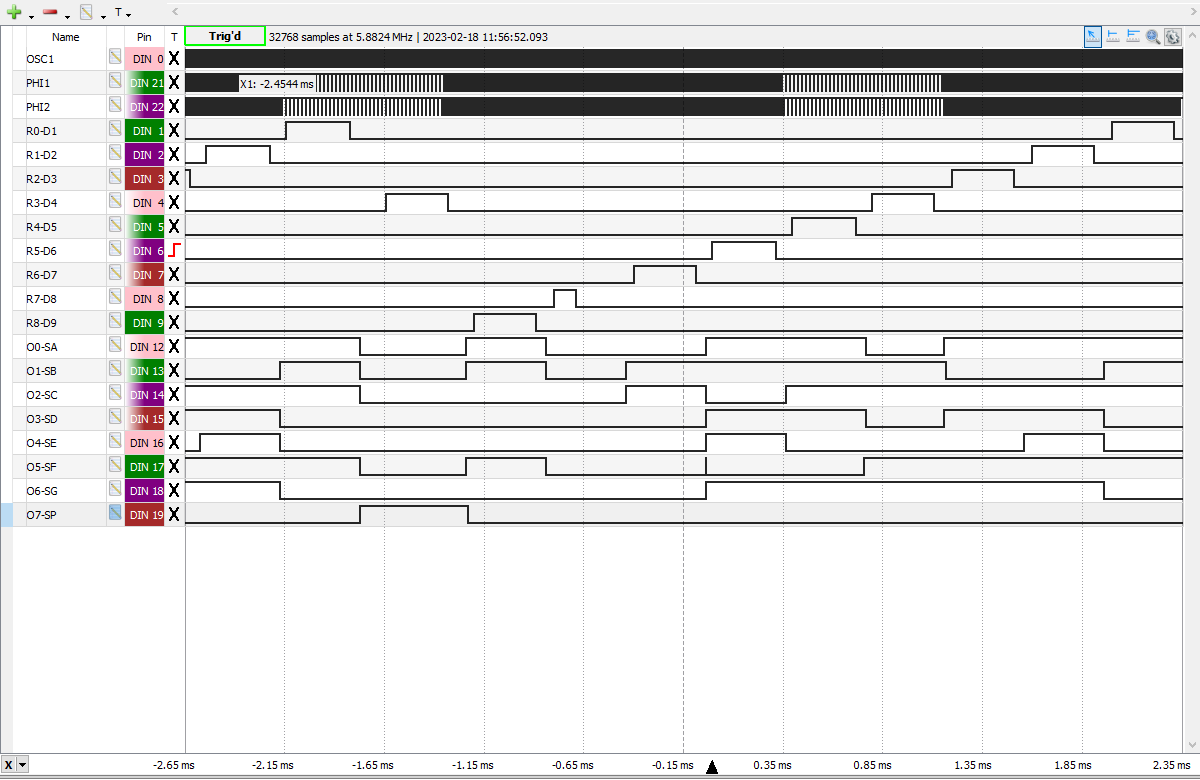

Scanning Cycle of the TMS1045NL from a Canon Canola L813 II
manufactured in August 1984 displaying "M 1234.567" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS1045NL Clock Frequency set to 300 kHz. |

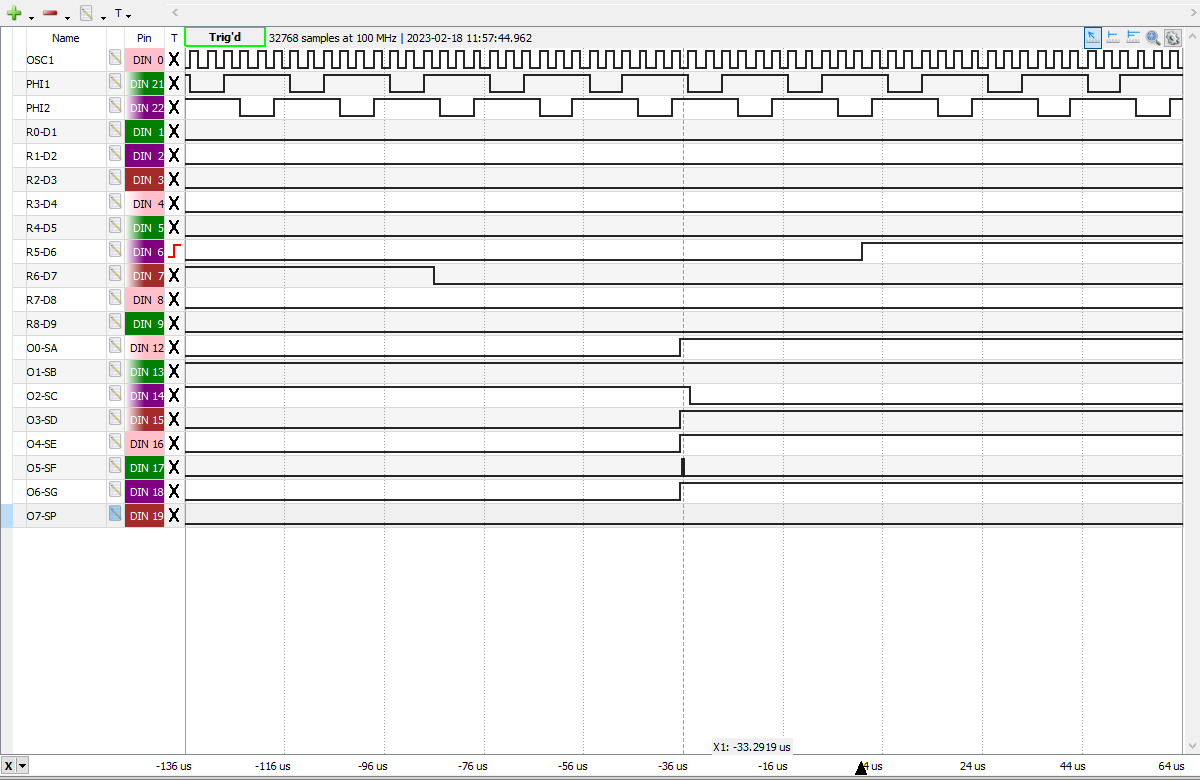

Close-up view of the
transition between Digit D7 displaying "1" and Digit D6 displaying "2" of the TMS1045NL
showing the Leading and Trailing Digit Blanking
Times.
|
