Additional Pictures

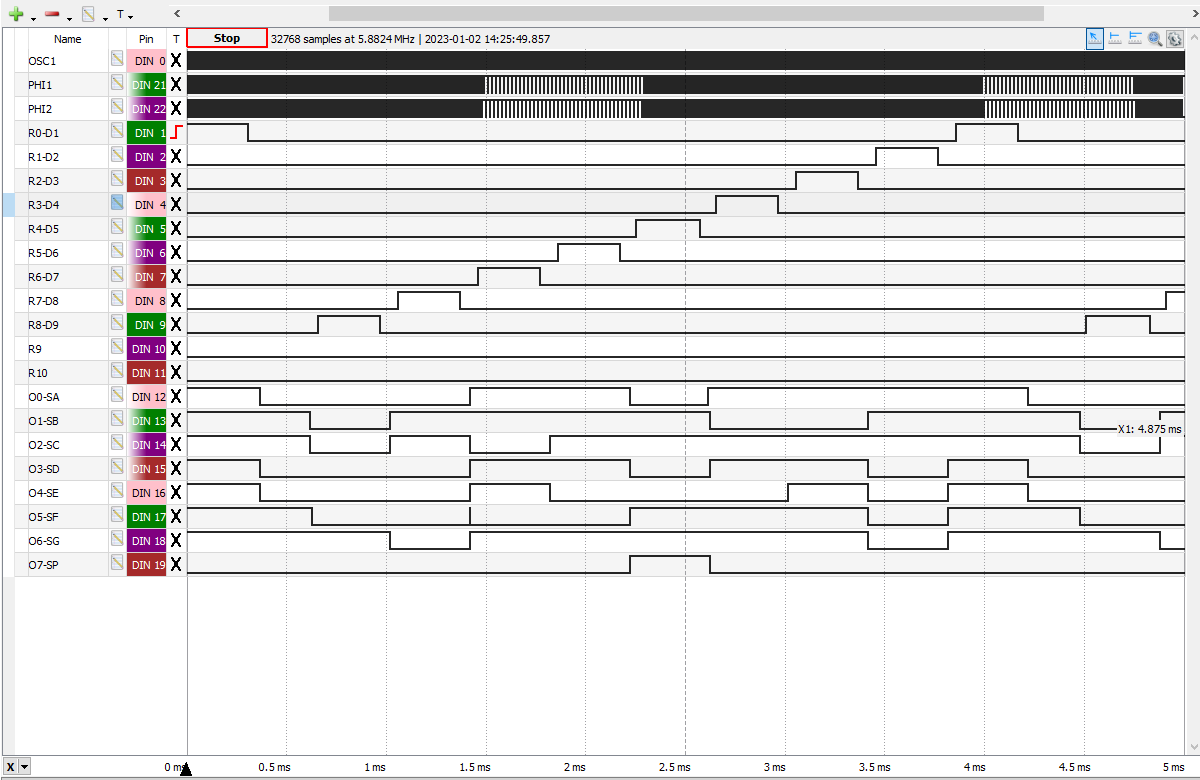

Complete Display Scanning Cycle of the TMS1071NL from a TI-2550 II manufactured in February 1976 displaying "-1234.5678"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. TMS1071NL Clock Frequency set to 300 kHz.

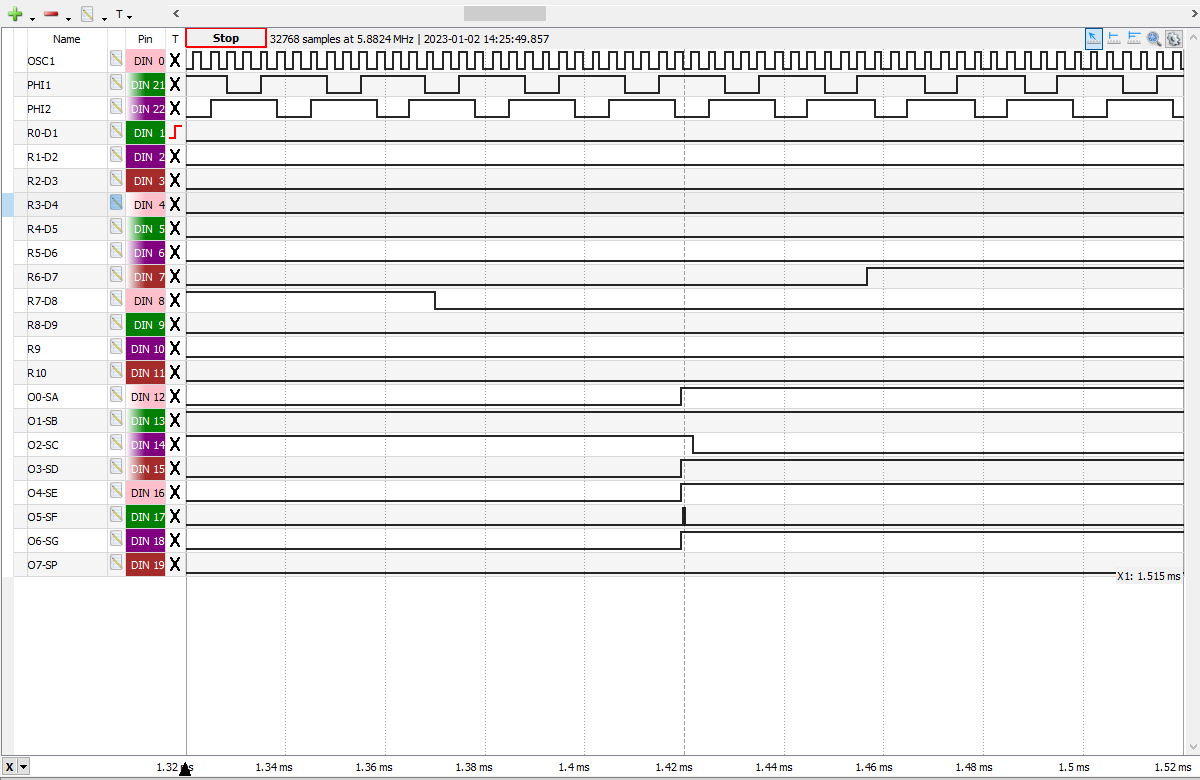

Close-up view of the transition between Digit D8 displaying "1" and Digit D7 displaying "2" of the TMS1071NL showing the Leading and Trailing Digit Blanking Times.
