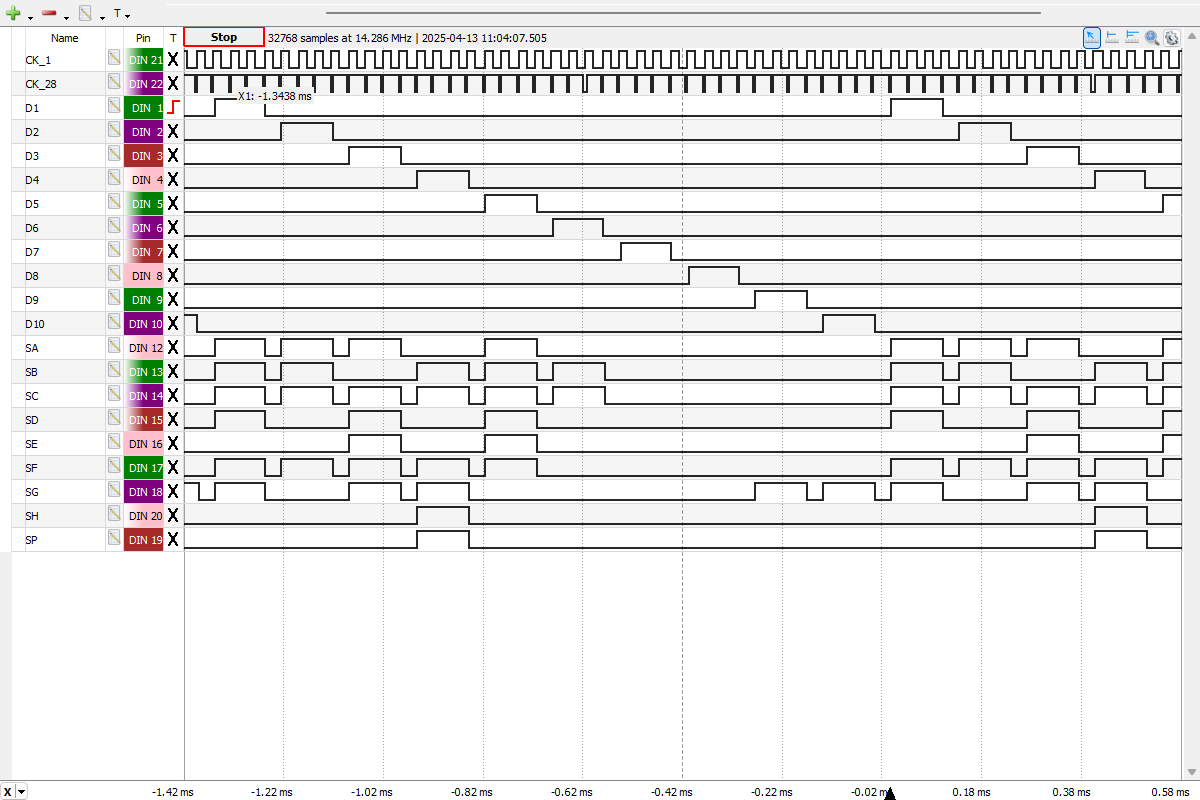

Scanning Cycle of the µPD273 from an Brother PROCAL 408AY (Version 2)
manufactured in January 1974 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD273 Clock Frequency at 30 kHz.  |

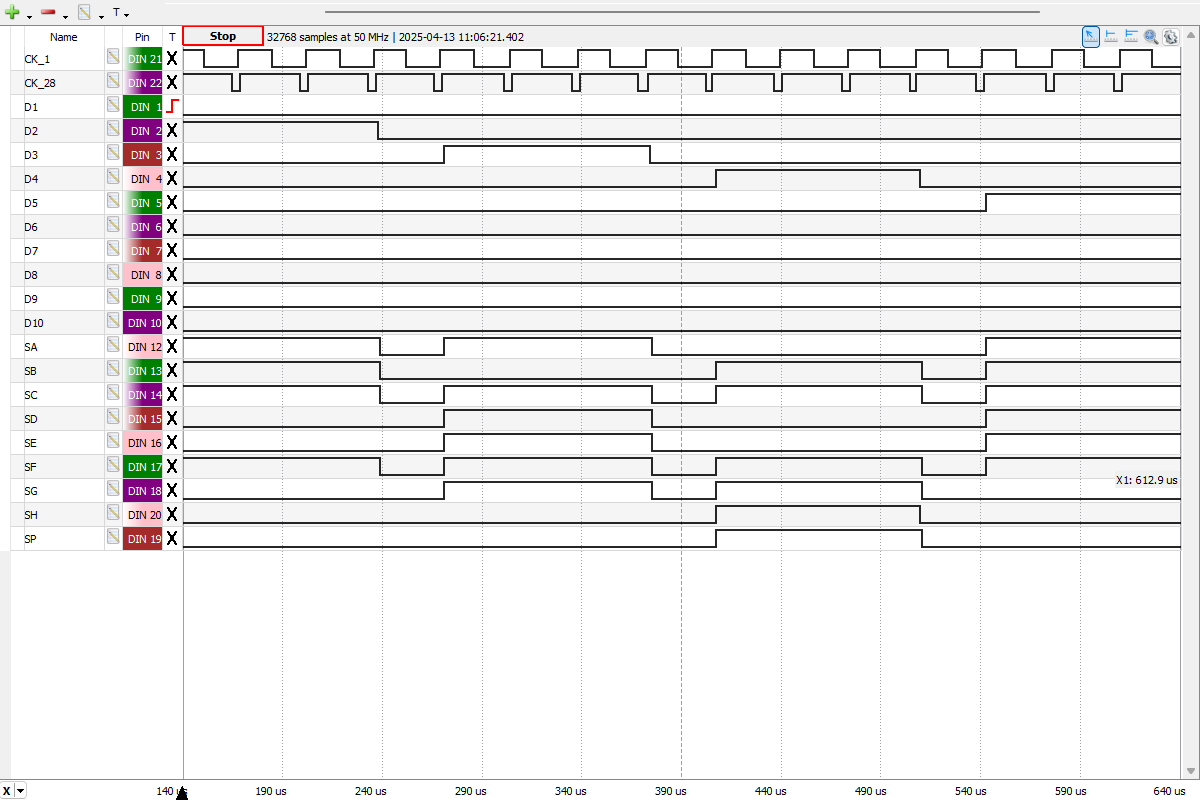

| Close-up view of the
transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the
µPD273
showing the Trailing Digit and Segment Blanking
Times.
|
