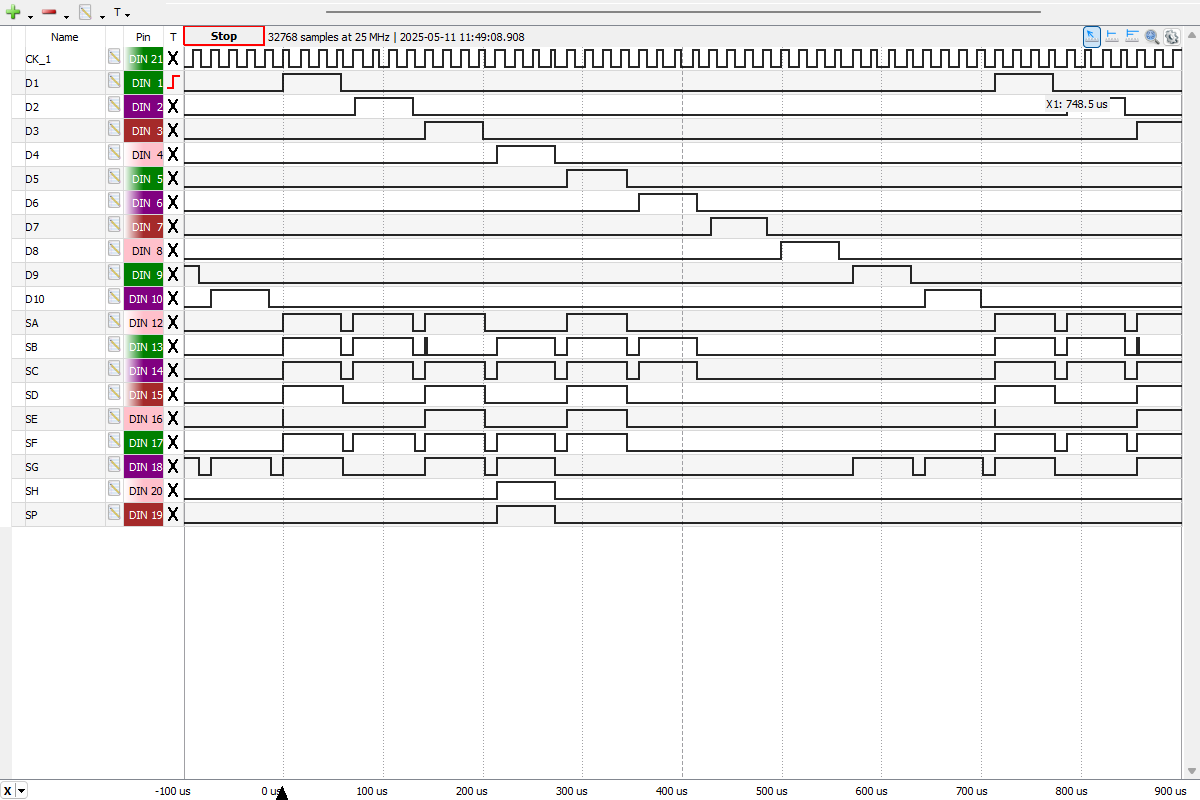

Scanning Cycle of the µPD275 from a Triumph-Adler 80C (EC21)
manufactured in November 1974 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD275 Clock Frequency at 55 kHz.  |

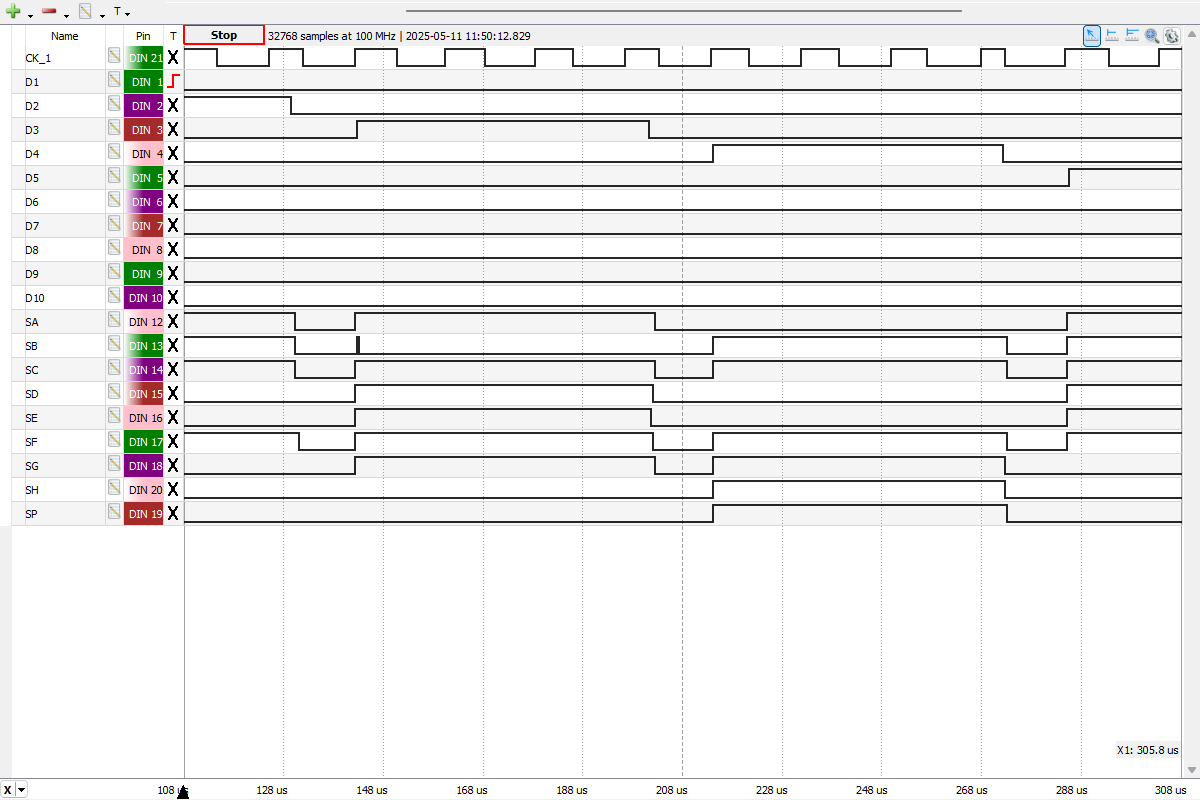

| Close-up view of the
transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the
µPD275
showing the Trailing Digit and Segment Blanking
Times.
|
