Additional Pictures

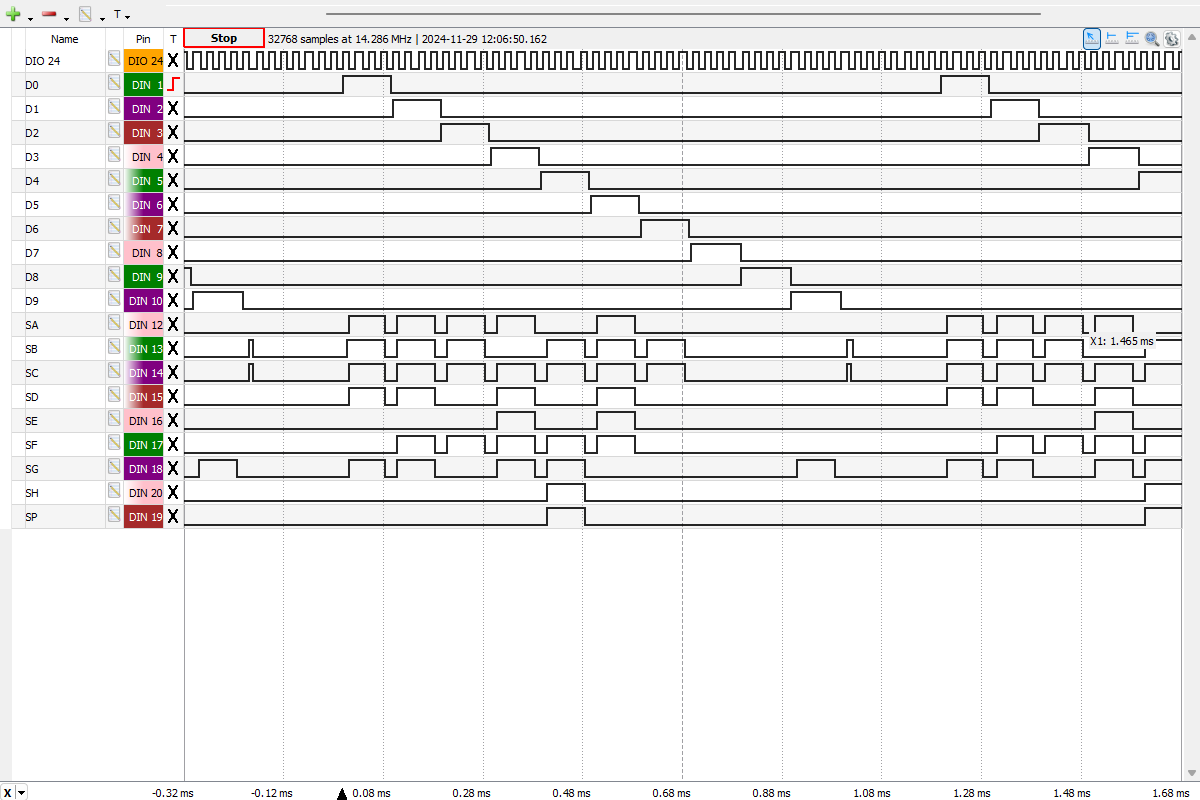

Complete Display Scanning Cycle of the µPD276 from an Elite Model 3002M manufactured in September 1975 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD276 Clock Frequency at 40 kHz.

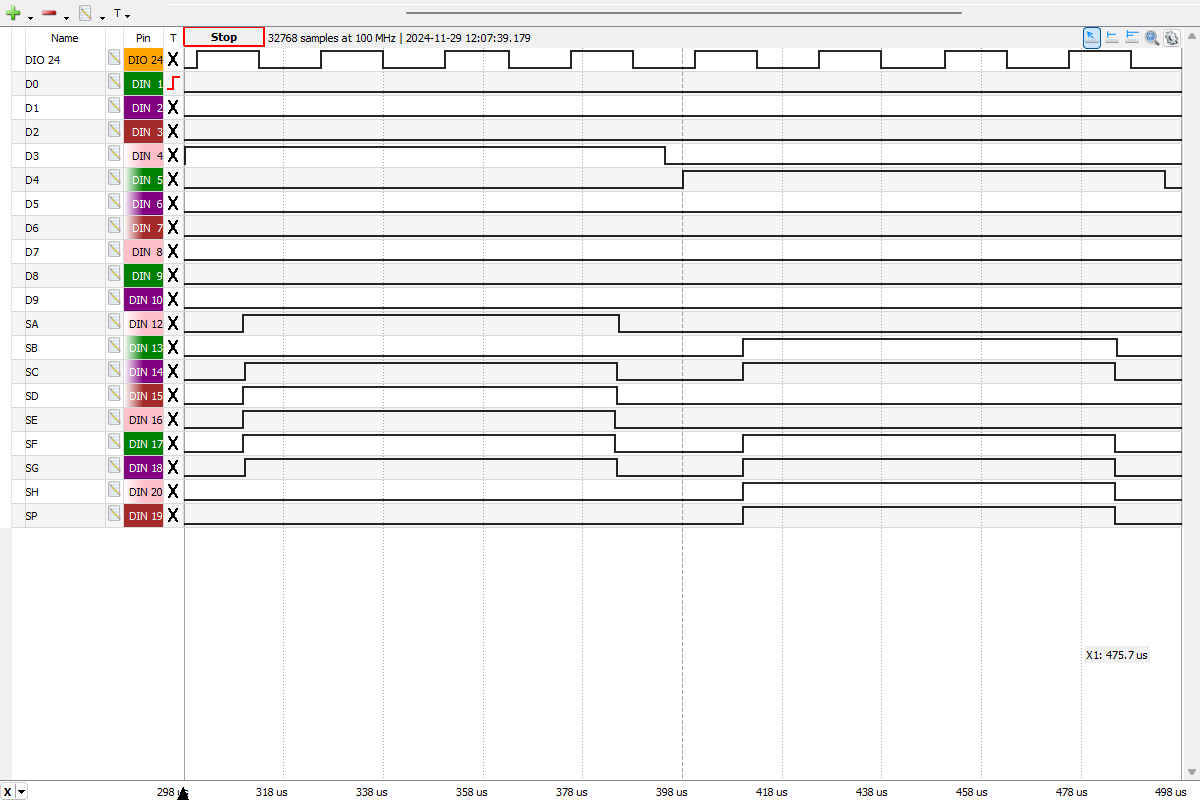

Close-up view of the transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the µPD276 showing the Leading and Trailing Segment Blanking Times.
