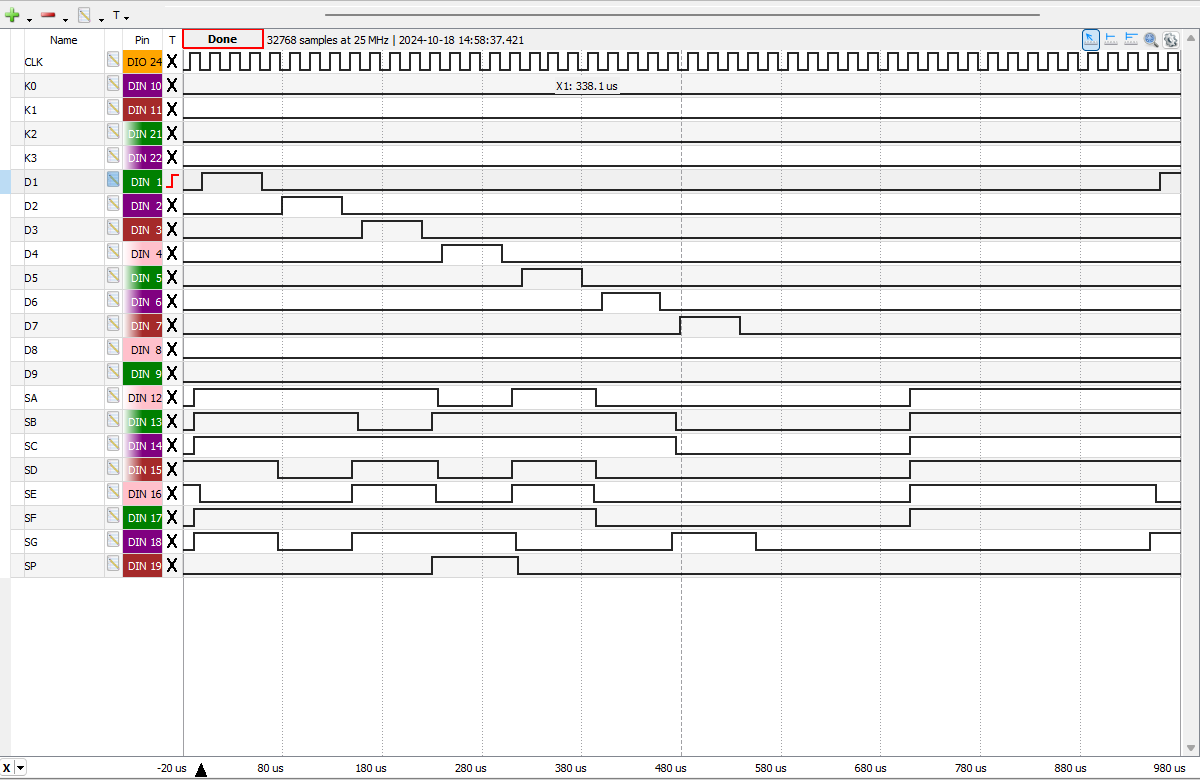

Complete Display Scanning Cycle of the µPD940 from a Lloyd's Accumatic 30 manufactured in September 1975 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD940 Clock Frequency at 50 kHz.

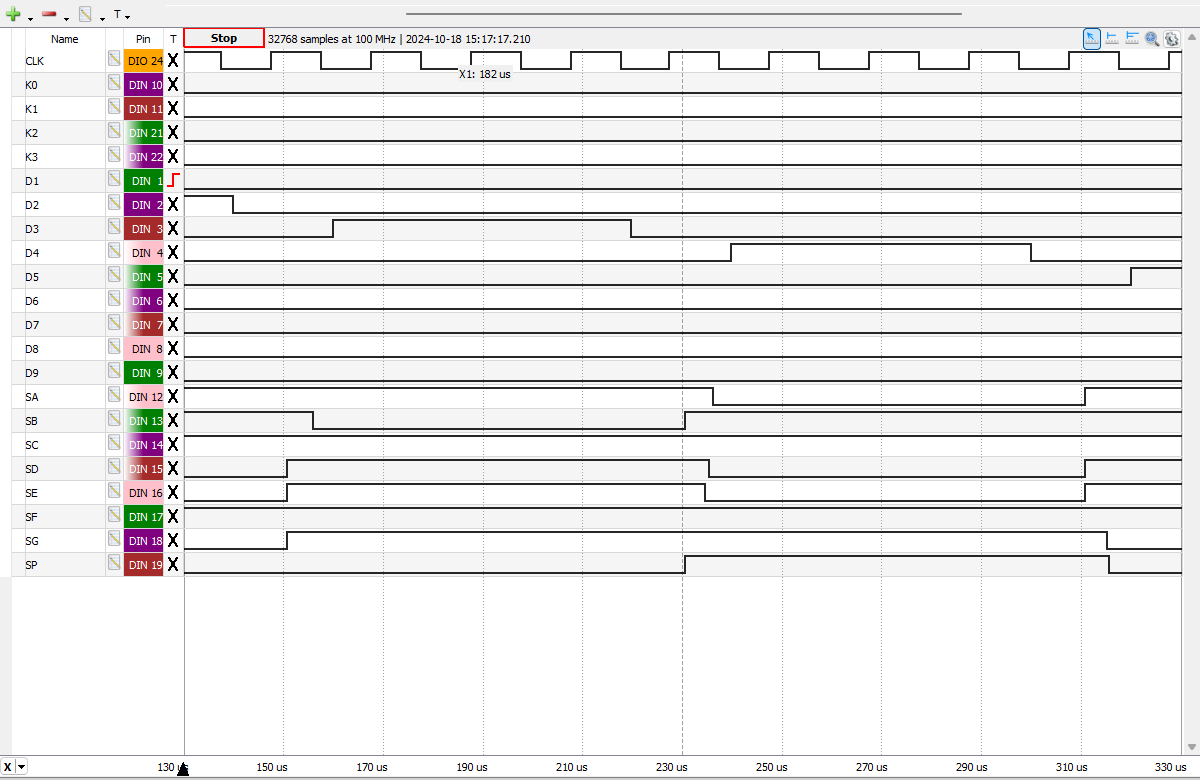

Close-up view of the transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the µPD940 showing the Leading and Trailing Digit Blanking Times.
