Additional Pictures

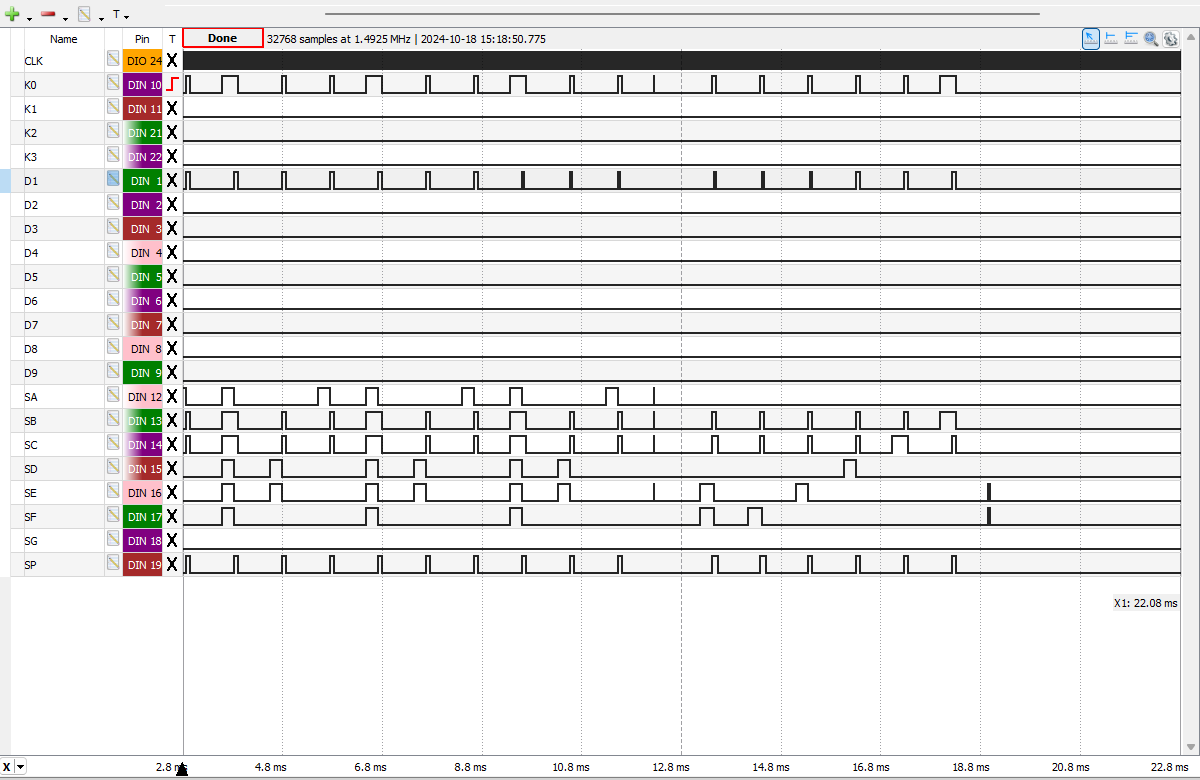

| Complete Display
and Keyboard Scanning Cycle of the µPD940 from a Lloyd's Accumatic 30
manufactured in September 1975 pressing the [=] key (SB#K0) while displaying "1." and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD940 Clock Frequency at 50 kHz.  |
