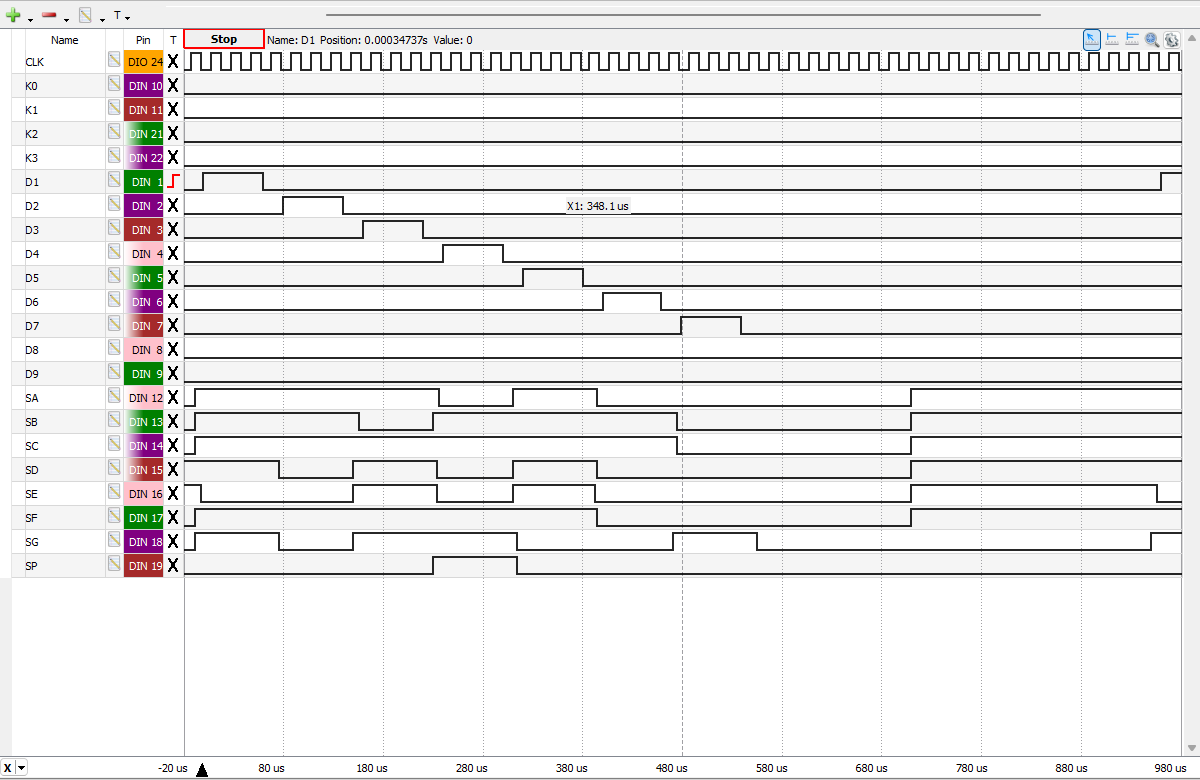

| Complete Display
Scanning Cycle of the µPD941 from a MBO de Luxe I
manufactured in December 1975 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD941 Clock Frequency at 50 kHz.  |

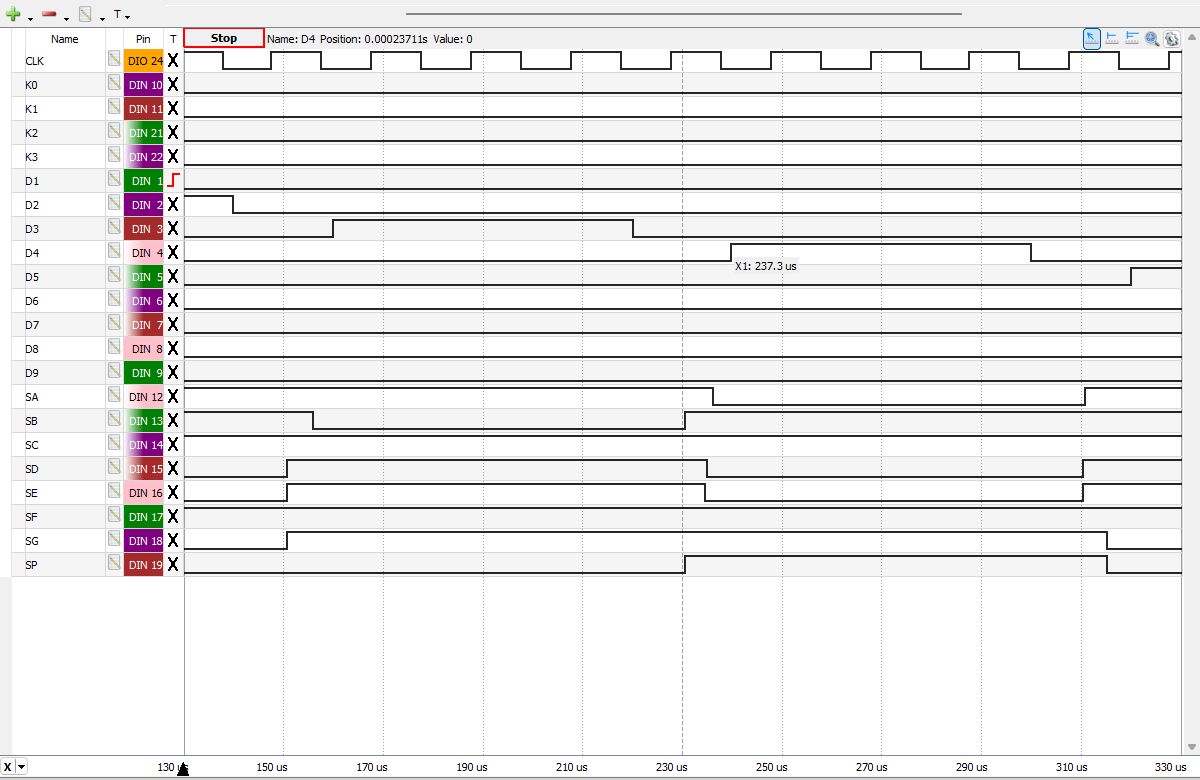

| Close-up view of the
transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the
µPD941
showing the Leading and Trailing Digit Blanking
Times.
|
